Galaxy 4 Adjustable Linear LED Luminaire 6.7-12W Outdoor

Galaxy 4 Adjustable Linear LED Luminaire 6.7-12W Outdoor

The Galaxy 4 linear LED luminaire is the shortest profile in the series: 167 mm, at 6.7 or 12 W. It is built for landscape designers, architects and installers who need discreet accents on columns, steps, planters or facade recesses. It fits where a long body cannot, keeping the same IP66 sealing, IK10 strength and integrated driver.

Benefits of the Galaxy 4 linear LED luminaire

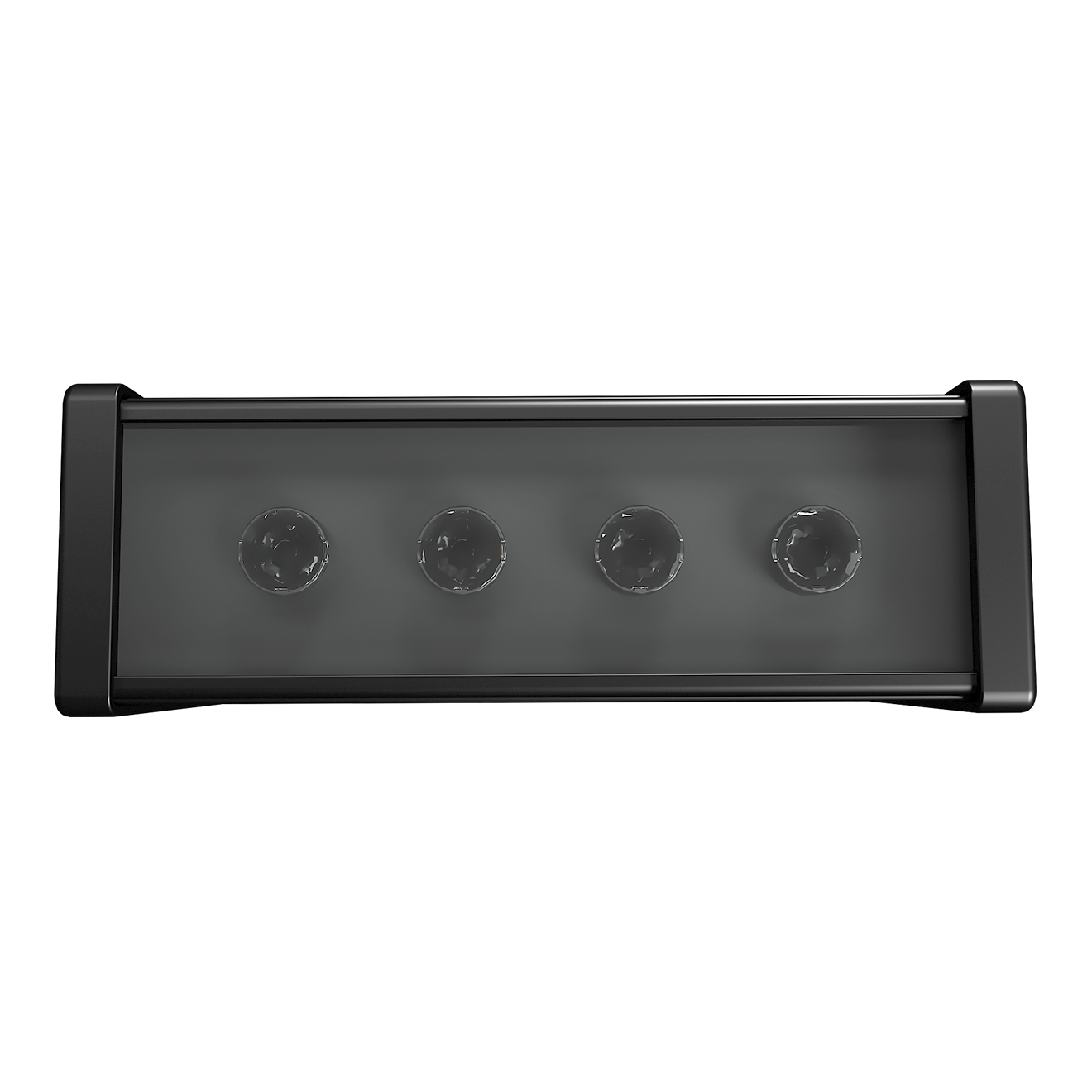

• Compact format: 83 x 58 x 167 mm hides easily in recesses, under benches or beside steps.
• Low consumption: 6.7 W or 12 W, with efficacy of 95-121 lm/W.
• Output matched to accents: 638-724 lm at 6.7 W and 1206-1454 lm at 12 W.
• Same optics as the large profiles: wide, medium, narrow, elliptical, Wall Grazing and Wall Washer.
• Adjustable fixing: BK bracket from -50 degrees to +90 degrees with metal end caps, or standard bracket from -90 degrees to +90 degrees with plastic end caps.
• Simple installation: transformer in the housing, direct connection to 220-240 V AC, mounting on ceiling, floor or wall.

Technical specifications

• Mounting type: surface, adjustable in the horizontal plane
• Housing material: extruded aluminium
• Available colours: RAL7040 anodised silver aluminium, RAL7040 powder-coated grey, RAL9010 anodised black
• Power range: 6.7 W and 12 W
• Luminous flux: 638-724 lm (6.7 W), 1206-1454 lm (12 W)
• Luminous efficacy: 95-121 lm/W
• Available optics: wide, medium, narrow, elliptical, Wall Grazing, Wall Washer
• Colour temperature: 3000 K, 4000 K, 5000 K
• Colour rendering index: CRI 80
• Control: on/off, 1-10V, DALI
• Ingress protection: IP66 / IK10
• Insulation class: I
• Supply: 220-240 V AC, driver included
• Dimensions: 83 x 58 x 167 mm
• Accessory: adjustable fixing system

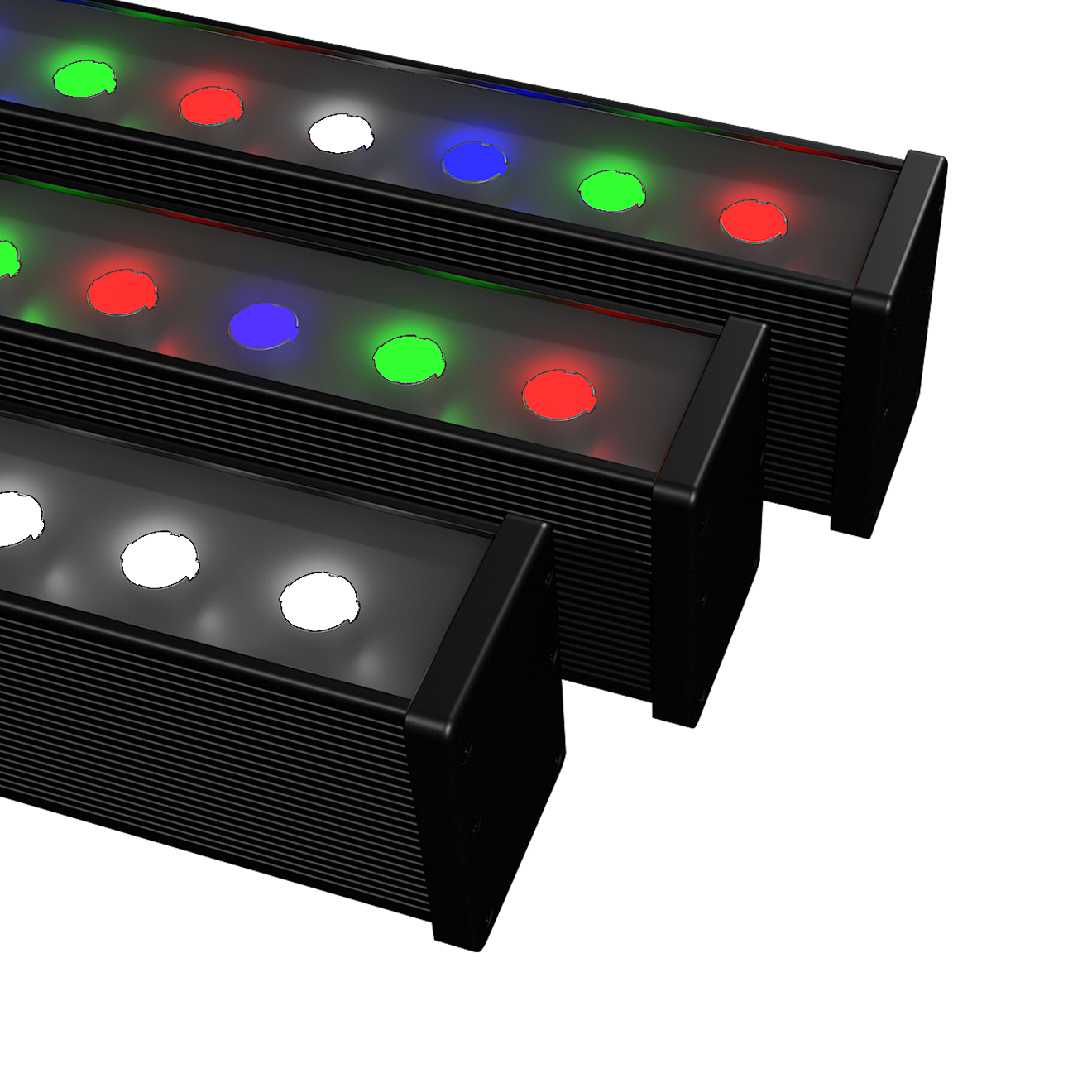

• On request: RGB with DMX control; single colour (red, amber, blue, green)

Applications and installation

The Galaxy 4 linear LED luminaire suits accent lighting on columns, pilasters, steps, planters, stone fences and building entrances. With the Wall Grazing optic it reveals the texture of masonry from close range. With the elliptical optic it lights benches or parapets across their width. Mount it on the surface of any plane and aim it after installation.

Frequently asked questions

Is it strong enough for a 3 m column? The 12 W version with the narrow optic delivers up to 1454 lm and is intended for accents on low and medium height elements. For large surfaces, choose Galaxy 10 or 16.

Can it be recessed into the floor? The luminaire is surface mounted with an adjustable bracket. You can fix it on a floor, but it is not recessed.

Is a coloured version available? Yes, on request: RGB with DMX control, or a single colour (red, amber, blue, green).
