Astraline G10 Slim Magnetic Track LED Luminaire 10W

Astraline G10 Slim Magnetic Track LED Luminaire 10W

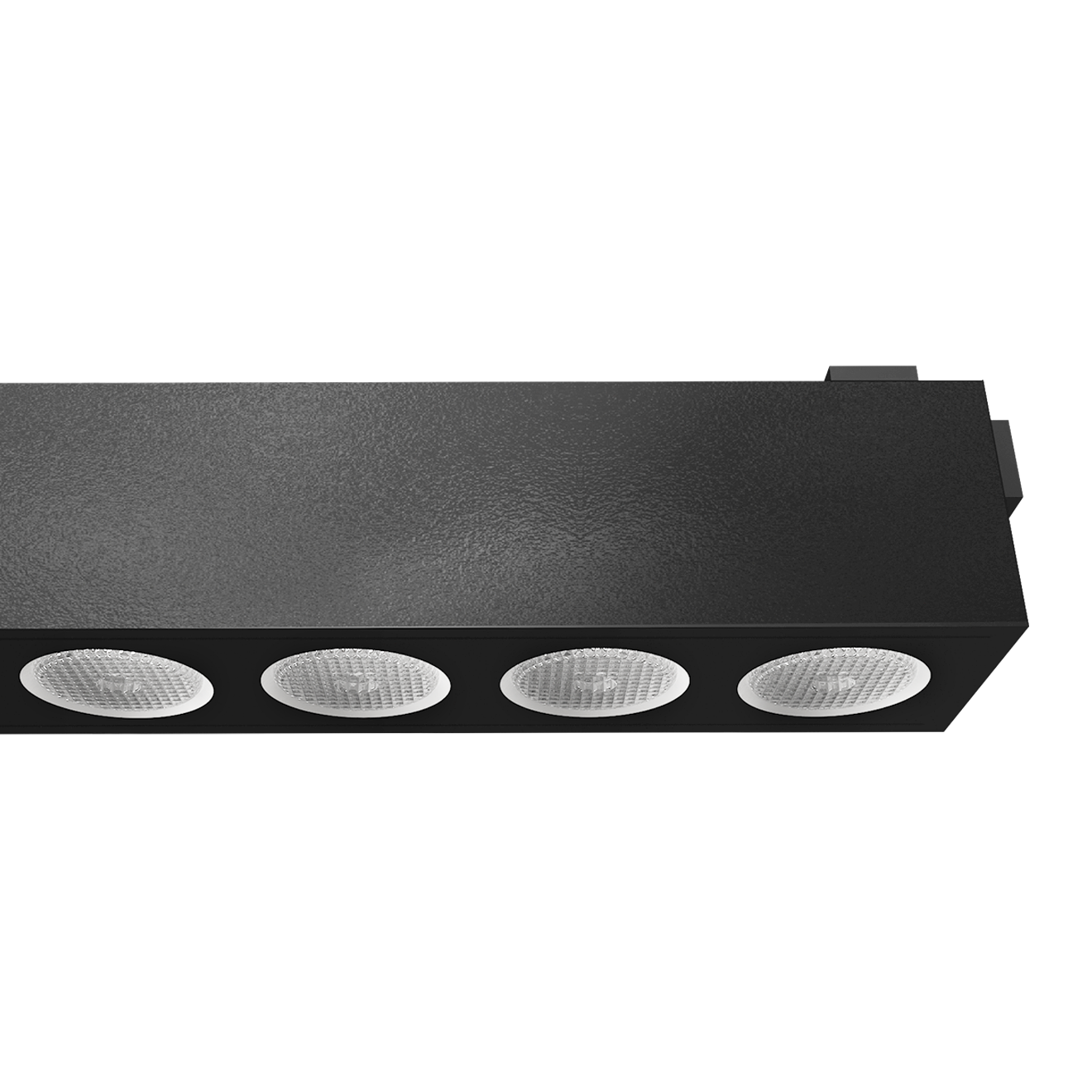

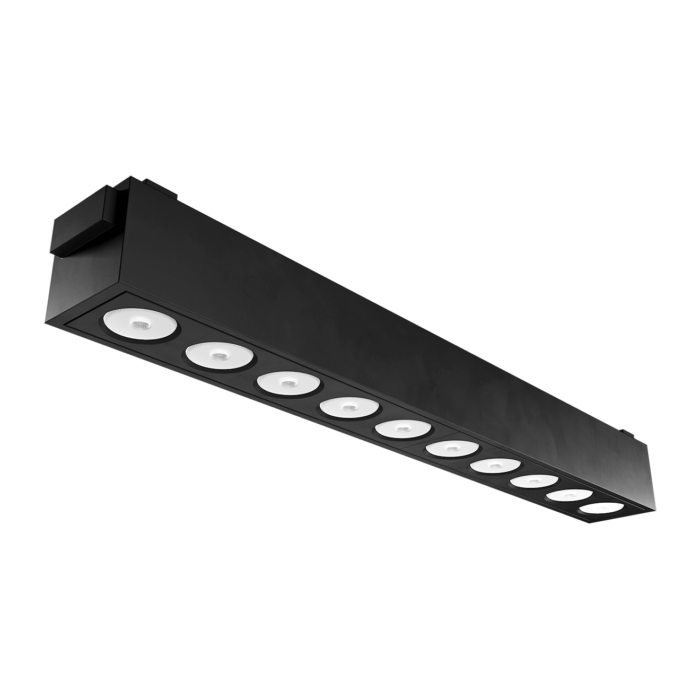

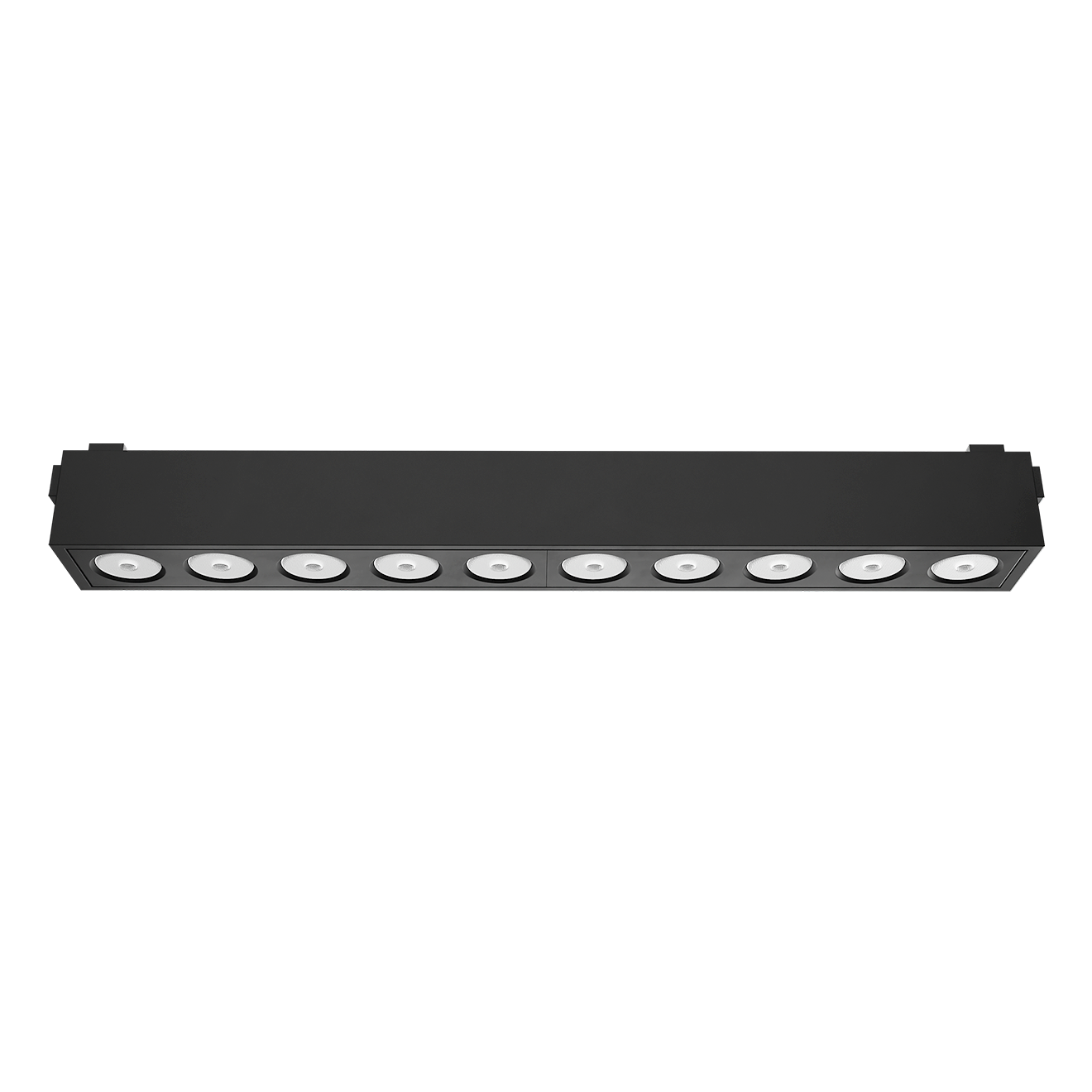

The Astraline G10 linear LED luminaire is the shortest profile in the Astraline series: a 230 mm body of 10 W for the slim magnetic track. It clips magnetically onto the 48 V DC track and moves anywhere along it without tools. It is meant for shops, offices and homes that rearrange often and still want good light quality, with CRI 90.

Benefits

• Repositioning in seconds: the magnetic coupling holds the body on the slim track with no dismantling of the installation.
• Concentrated 30 degree beam: a medium optic that picks out products, pictures or working areas.
• Natural colours: CRI 90 at 3000 K or 4000 K.
• Safety extra-low voltage: 48 V DC with electrical class III.
• Minimal profile: a 24 x 26 mm section in black aluminium, almost invisible on the track.
• Flexibility in the design: combine it with G15 and G25 on the same track run.

Technical specifications

• Mounting type: magnetic, on a 48 V DC slim track
• Material: aluminium
• Colour: black
• Power: 10 W
• Luminous flux: 790 lm
• Luminous efficacy: 72 lm/W
• Luminous efficiency: 88.2 %
• Optic: medium, 30 degree beam
• Colour temperature: 3000 K or 4000 K
• Colour rendering index: CRI 90
• Control: on/off
• Power supply: 48 V DC through the track; power unit not included
• Electrical class: III
• Ingress protection: IP20
• Dimensions: 230 x 24 x 26 mm
• Accessory: 48 V DC slim magnetic track

Applications and installation

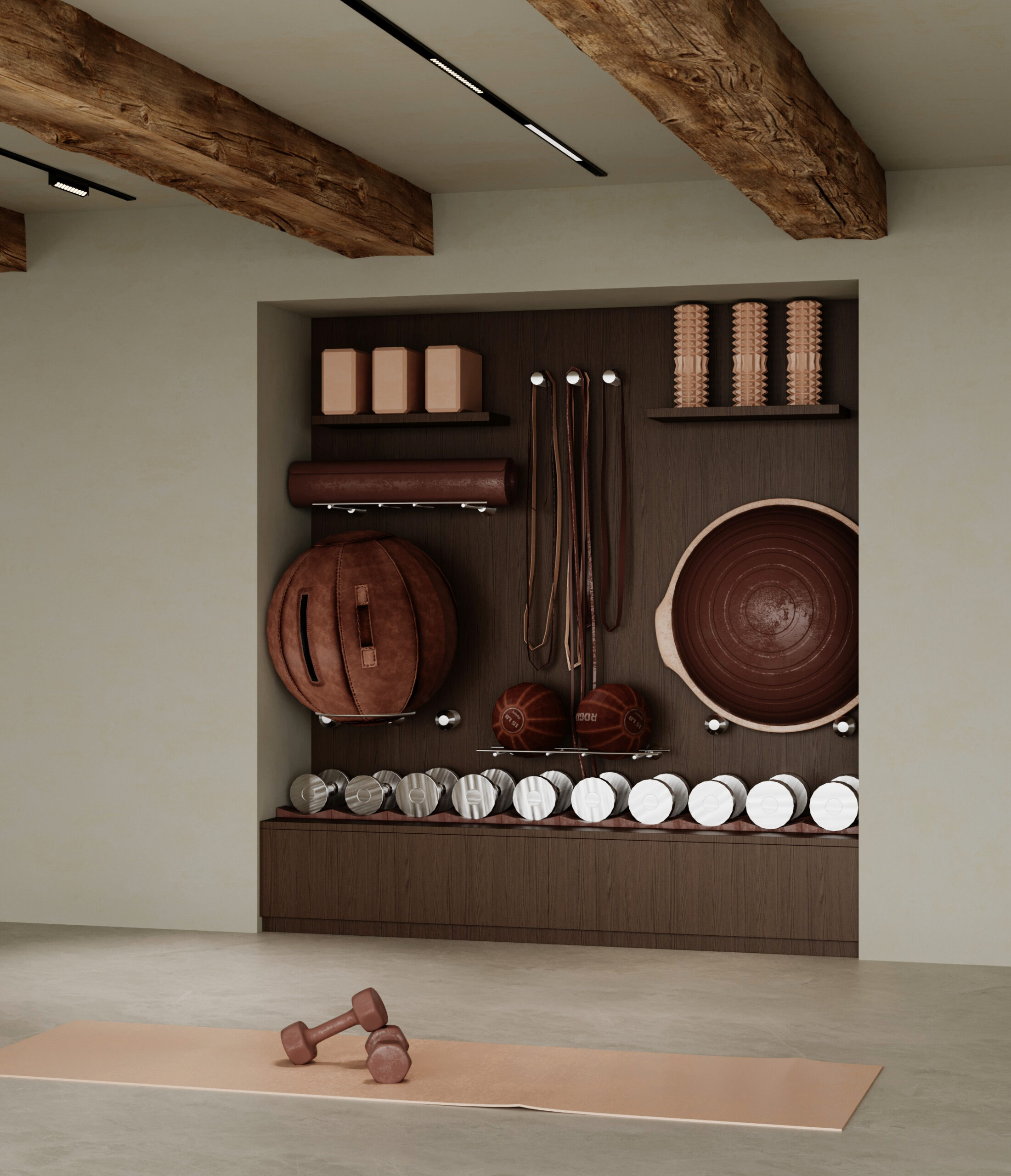

This Astraline G10 linear LED luminaire runs only on the 48 V DC slim magnetic track, which can be recessed into plasterboard or surface mounted on the ceiling. The 48 V power unit is bought separately and sized to the total number of fittings on the run. Typical uses are retail shelving, display cases, open-plan offices, modern kitchens and living rooms, and galleries. IP20 keeps the fitting in dry interiors. The profile is designed and manufactured in Europe.

Frequently asked questions

Are the track and the power unit included? No. The slim track and the 48 V DC power unit are ordered separately, according to the length of the run.

How many fittings can one track carry? That depends on the power unit you choose. Add up the wattage of the fittings and select a unit with headroom.

Can I use it on a classic 230 V track? No. The body is designed for the 48 V DC slim magnetic track.
