Arvio 4 Multi-Prismatic Linear LED Luminaire 44W

Arvio 4 Multi-Prismatic Linear LED Luminaire 44W

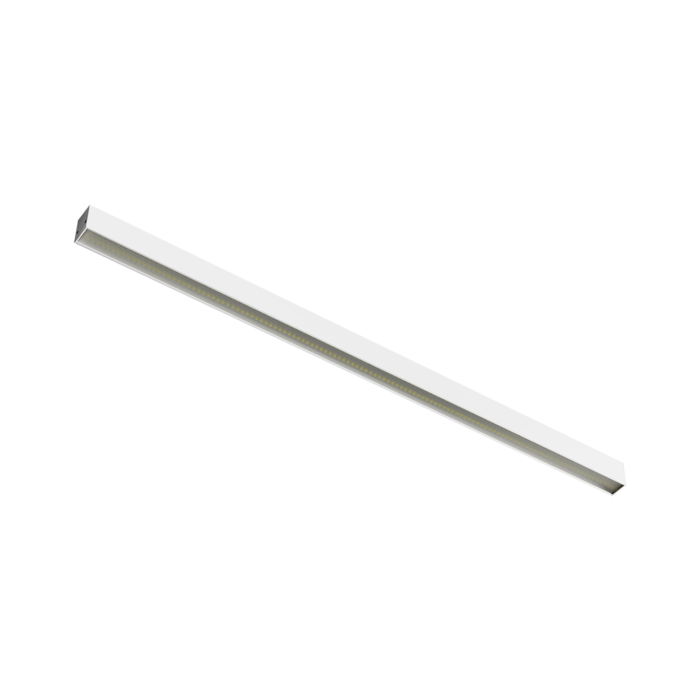

The Arvio 4 multi-prismatic linear LED luminaire is a 1198 mm line of light built for rooms where people work at screens all day. The diffuser breaks the output across micro-prisms and cuts glare, while the extruded aluminium profile mounts on the surface or on wires. It is a straightforward choice for offices, classrooms and sales floors.

Benefits

• Visual comfort: the anti-glare multi-prismatic diffuser limits direct luminance and reduces eye fatigue over a working day.
• 5258 lm from 44 W: 103 lm/W, enough for a row of desks or a retail aisle.
• No shadow gaps: emission is even along the full length, so dark bands between fittings disappear.
• Two mounting methods: on the surface with the fixing clamp, or suspended, depending on ceiling height.
• IK10 impact rating: the diffuser takes accidental knocks, useful in schools and sales halls.
• Control ready: compatible with DALI and 1-10V systems as well as plain on/off.

Technical specifications of the Arvio 4 linear LED luminaire

• Type: linear LED luminaire with multi-prismatic diffuser
• Mounting: surface or suspended
• Material: extruded aluminium

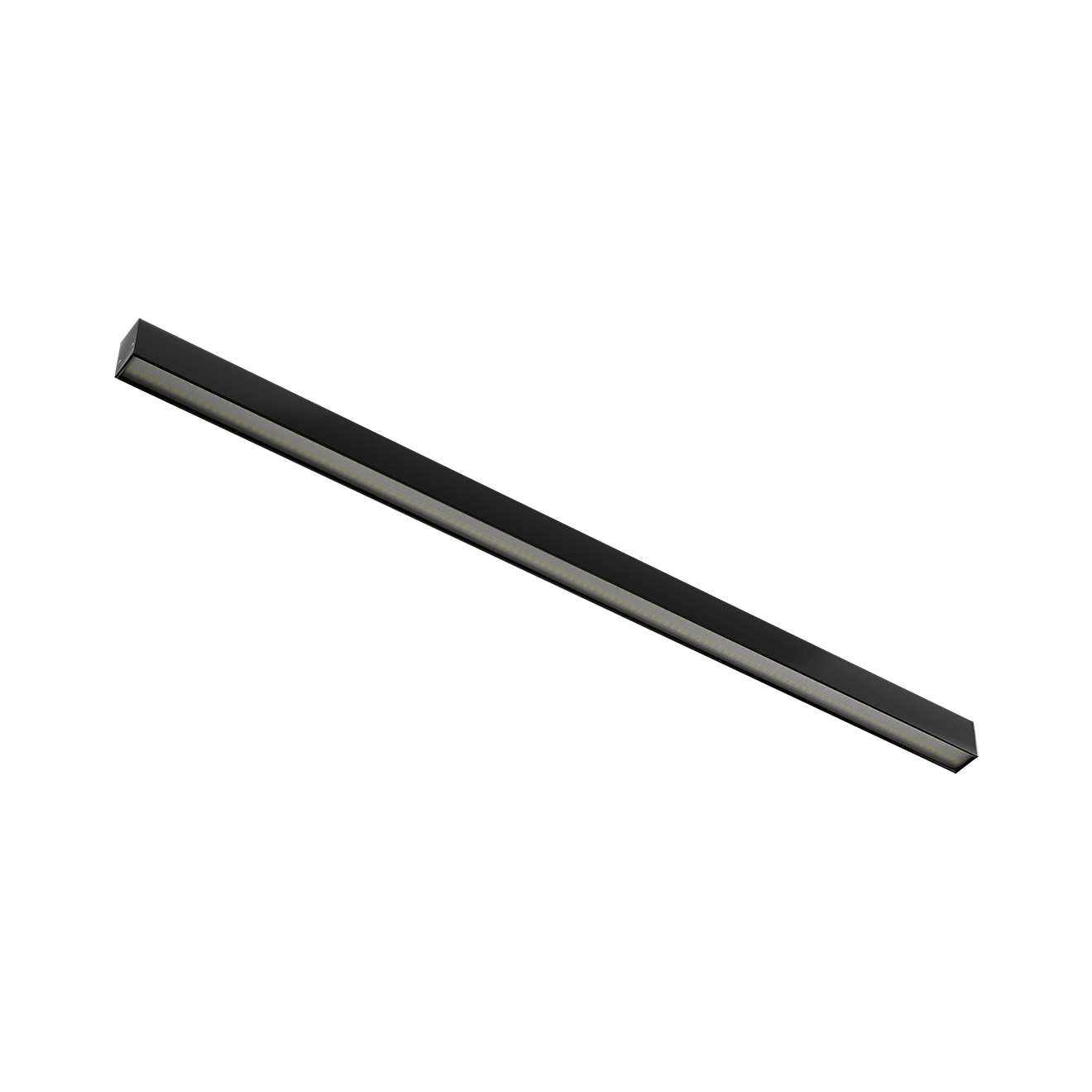

• Colours: white RAL 9010 or black
• Power: 44 W
• Luminous flux: 5258 lm
• Luminous efficacy: 103 lm/W
• Optic: multi-prismatic anti-glare
• Colour temperature: 4000 K
• CRI: 80 or above 90
• Control: on/off; compatible with DALI and 1-10V
• Ingress protection: IP20
• Impact resistance: IK10
• Protection class: I
• Driver: included
• Accessories: fixing clamp
• Dimensions: 1198 x 57 x 44 mm

Applications and installation

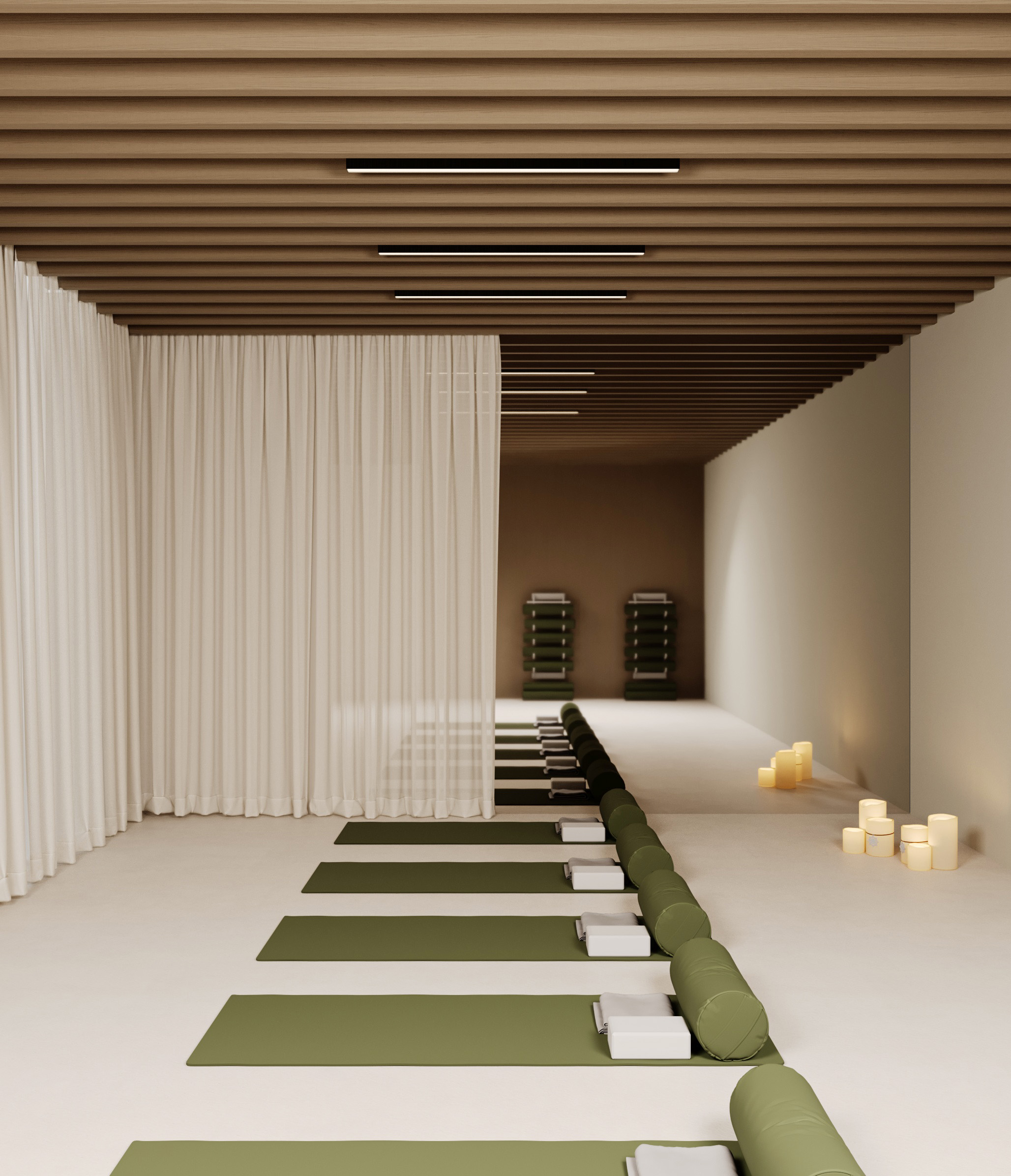

Install Arvio 4 in open-plan offices, meeting rooms, consulting rooms, classrooms, libraries, corridors and shops. Mounted end to end it forms continuous lines of light; suspended above workstations it holds a steady level on the task plane. Specify CRI above 90 where colour matters, for example in design studios and showrooms, and CRI 80 for corridors and stores. The luminaire is IP20 and designed for indoor use.

Frequently asked questions

What is a multi-prismatic diffuser? It is a cover with a micro-prism structure that redirects light and reduces the direct brightness the eye sees, for comfort at a computer.

Can I fit the luminaires in a continuous line? Yes. The 1198 mm length allows end-to-end alignment on the surface, using the fixing clamp accessory.

Can it join a DALI system? The luminaire is compatible with DALI and 1-10V control. State the control type you need when you request a quotation.
