Arcadia T Surface-Mounted LED Wall Washer 10W

Arcadia T Surface-Mounted LED Wall Washer 10W

The Arcadia T surface-mounted LED wall washer is a 10 W ceiling fitting with an optic built for grazing walls. Use it when a full wall, an exhibition panel or a textured surface has to read evenly from top to bottom. It serves galleries, hotels, shops and offices working with lighting designers.

Benefits

• Even wall brightness: the wall washer optic spreads all 944 lm down the vertical surface instead of leaving one bright patch.
• Low load per point: 10 W at 103.7 lm/W keeps long runs of fittings within a modest circuit budget.
• Simple, safe wiring: protection class II means no earth conductor is required at the fitting.
• Ready to connect: the driver sits inside the housing and the unit runs on 220-240 V AC.

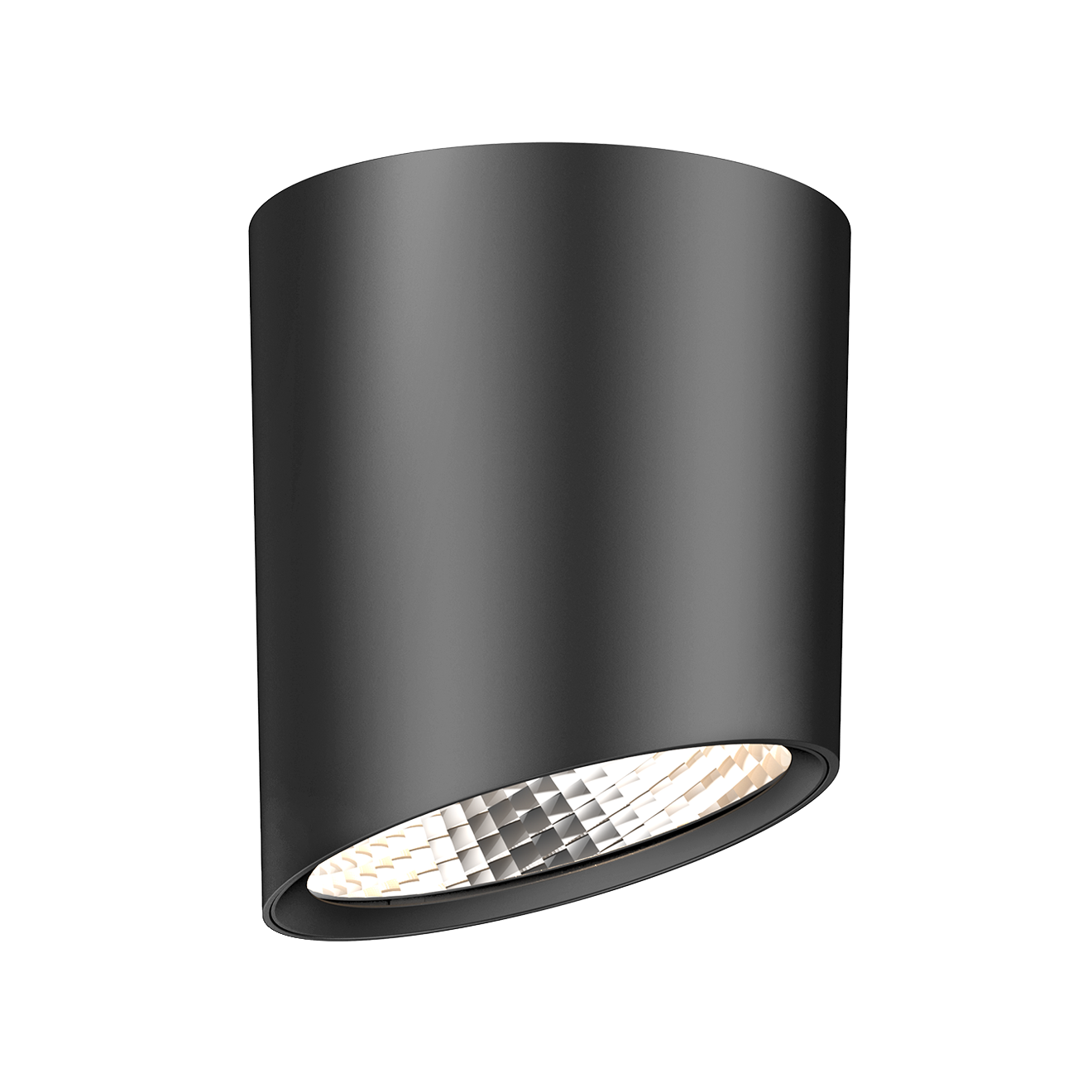

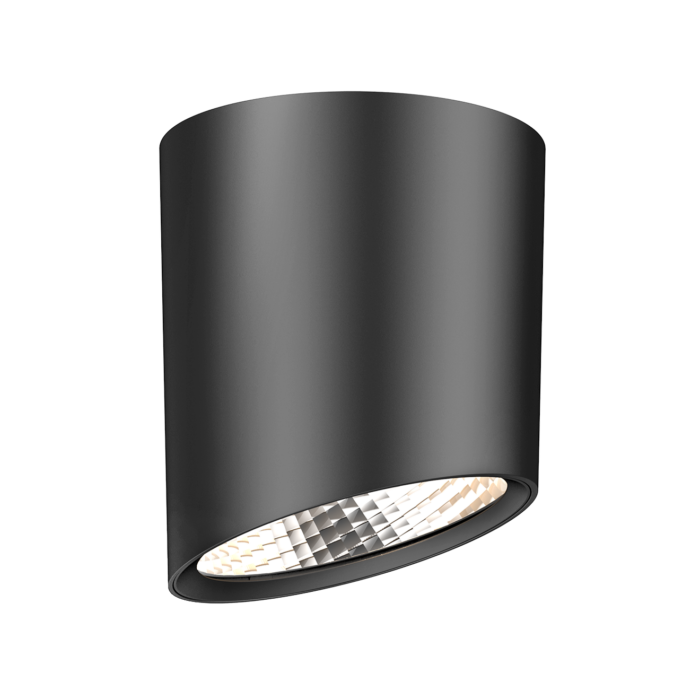

• Discreet housing: 90 x 130 mm of aluminium in a black finish reads as a shadow on dark ceilings.

Technical specifications of the Arcadia T LED wall washer

• Mounting type: surface-mounted on the ceiling
• Material: aluminium
• Colour: black
• Power: 10 W
• Luminous flux: 944 lm
• Luminous efficacy: 103.7 lm/W
• Optical efficiency: 88 %
• Optic: wall washer
• Colour temperature: 3000 K or 4000 K
• CRI: 80
• Control: on/off
• Supply: 220-240 V AC, driver included in the housing
• Protection class: II
• Ingress protection: IP20
• Dimensions: 90 x 130 mm
• Adjustable: no

Applications and installation

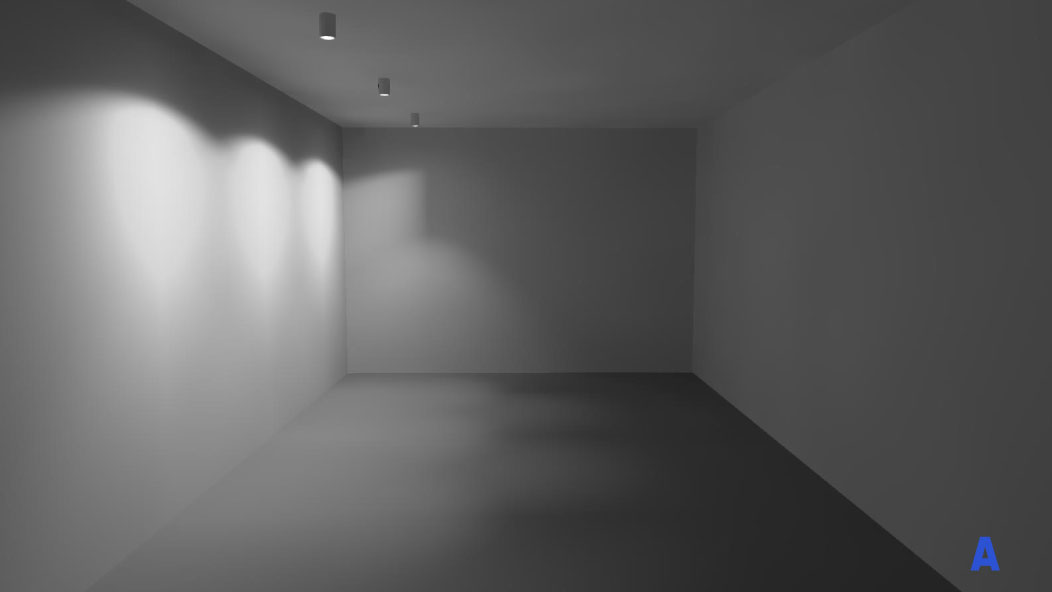

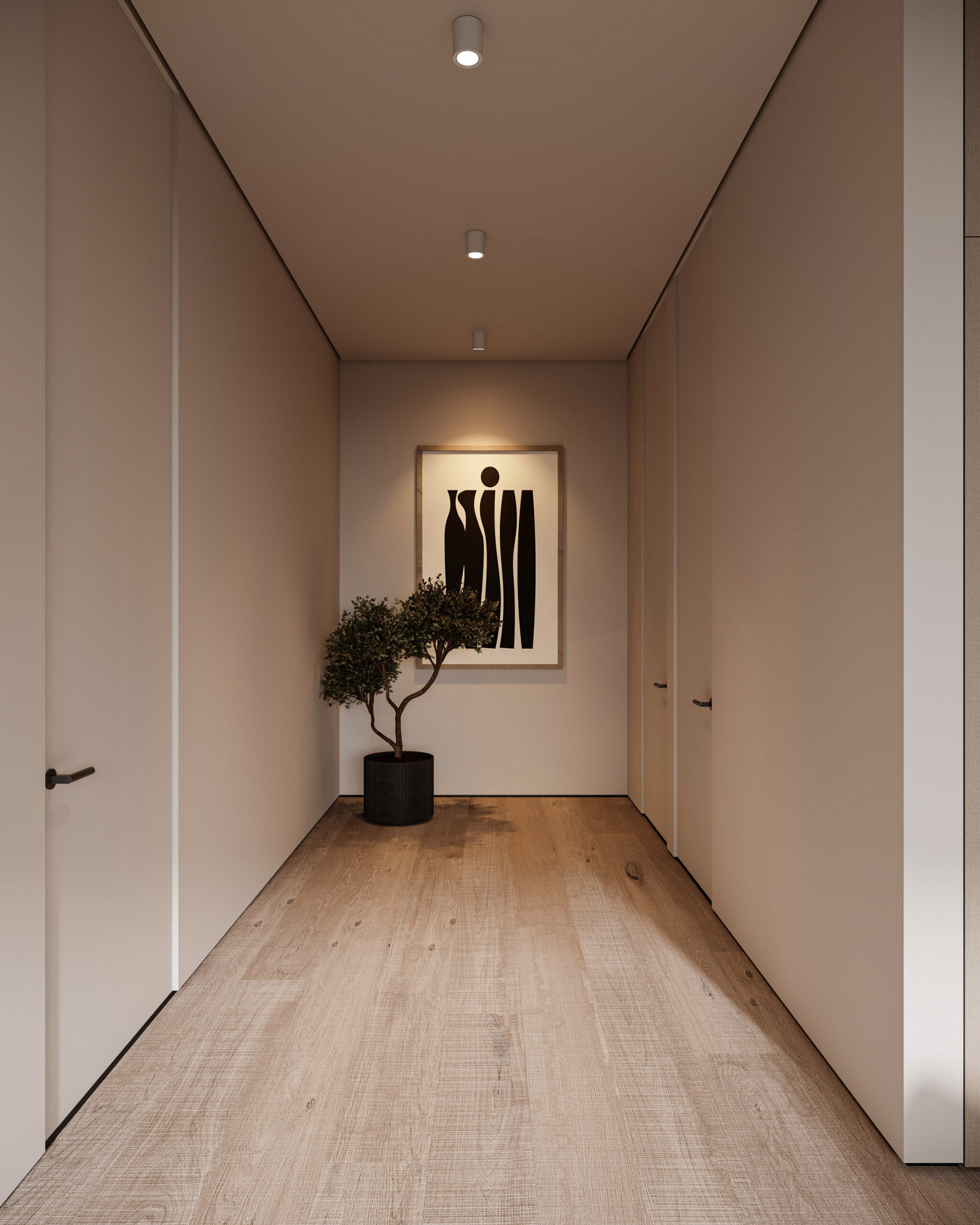

Mount Arcadia T on the ceiling, close to the wall you want to light, in dry interiors. It performs well in galleries and museums, on reception backdrops, in hotel lobbies, in shops with deep display windows and on exposed brick or stone. Space several units at equal intervals for a continuous wash. Keep the setback consistent along the run, otherwise the scallops will not overlap cleanly. The luminaire is designed and manufactured in Europe.

Frequently asked questions

How far from the wall should it sit? The setback depends on wall height and the effect you want. Send us the section drawing and our team will calculate the position.

Can it be aimed? No. The wall washer optic is fixed and designed for a vertical surface.

Which colour temperature suits a gallery? 3000 K flatters warm timber and painted work. 4000 K stays neutral and suits modern interiors.
