Display Line III Surface-Mounted Linear LED Luminaire 2 Modules 26W

Display Line III Surface-Mounted Linear LED Luminaire 2 Modules 26W

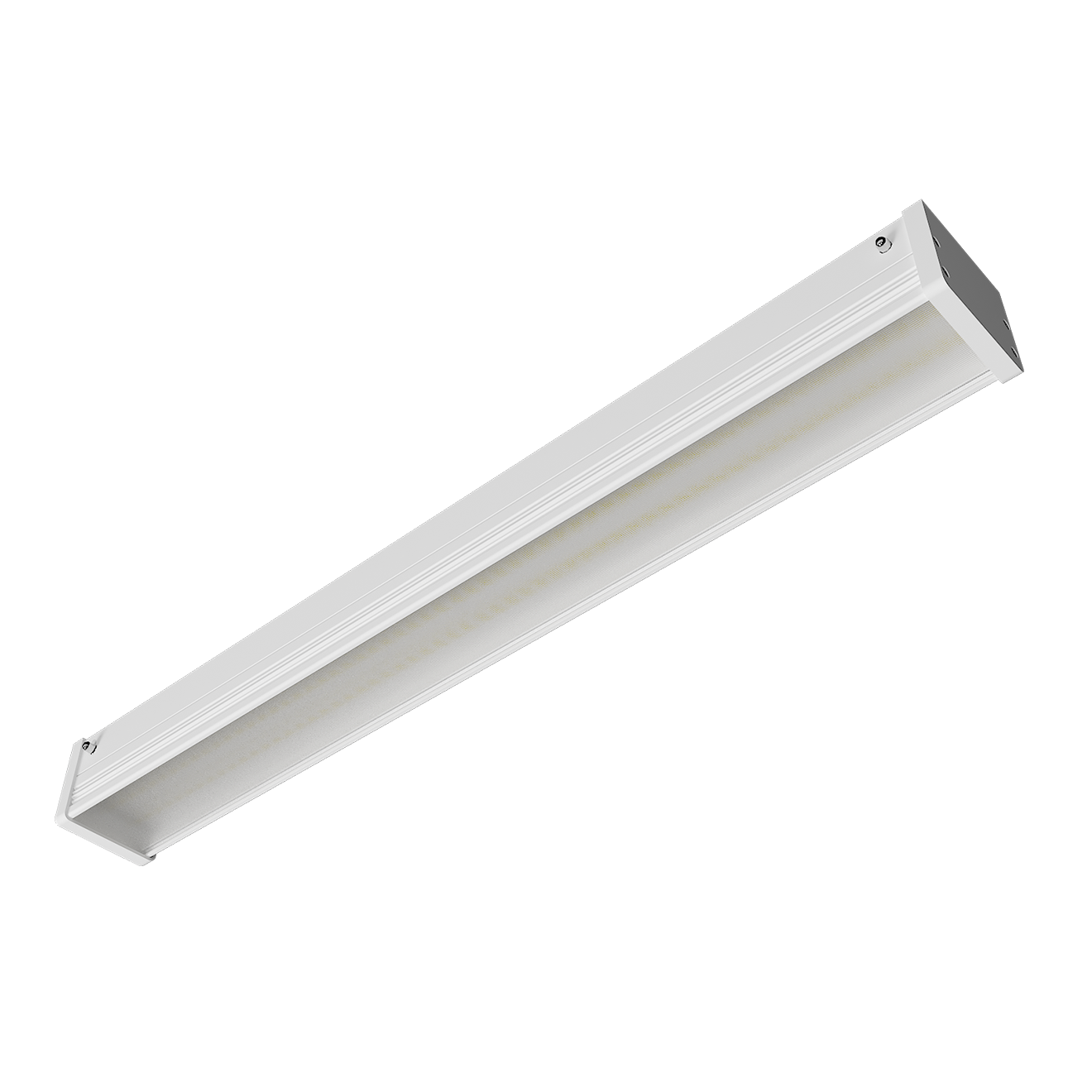

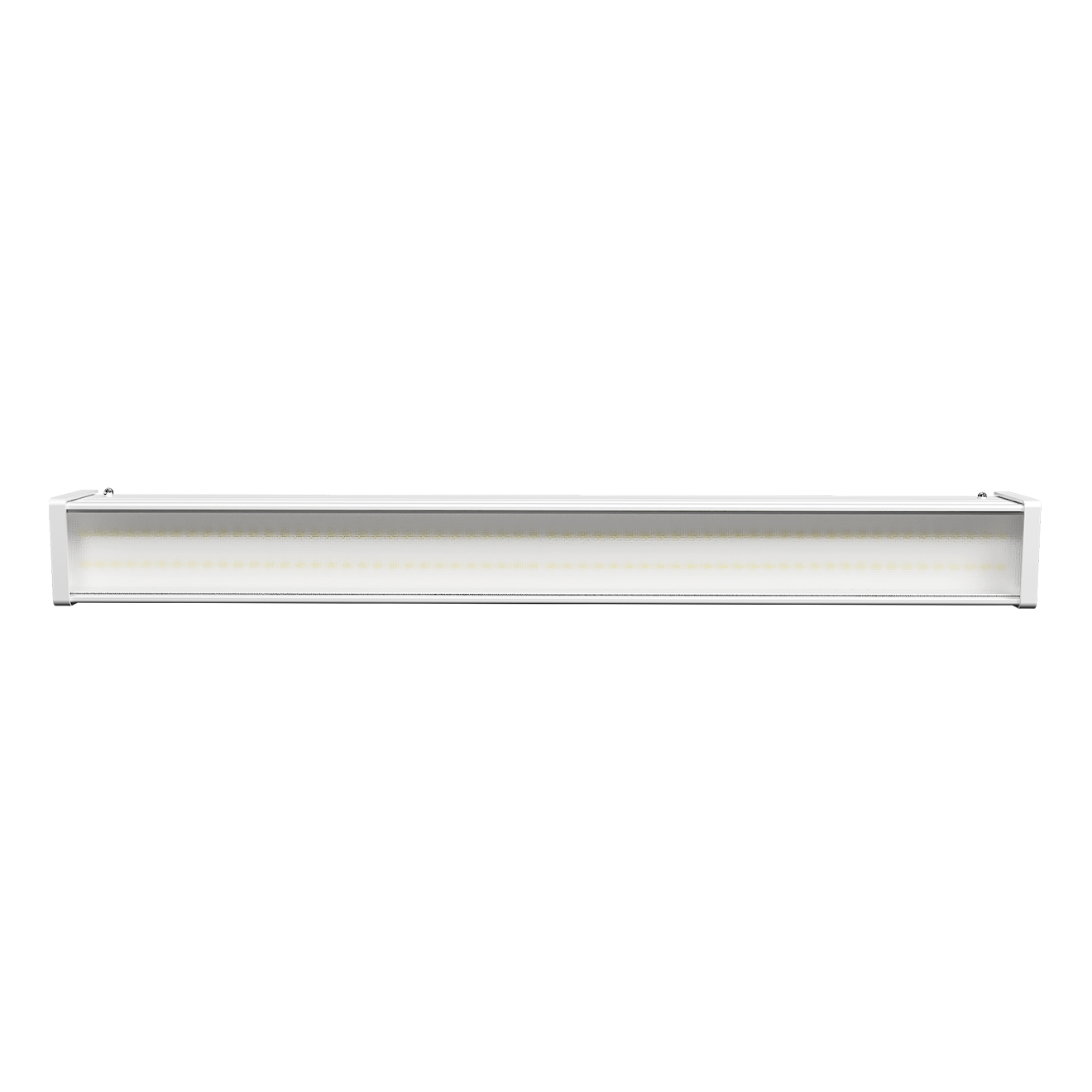

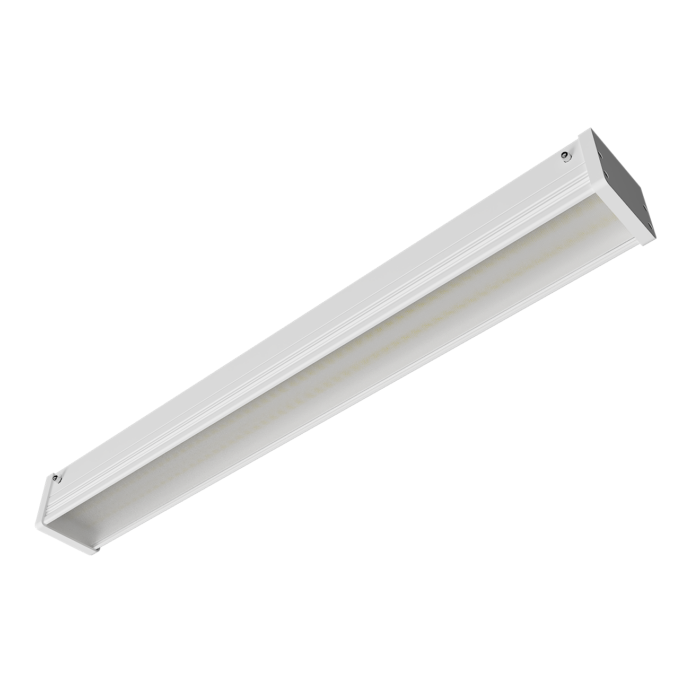

A Display Line III linear LED luminaire in the 2-module format is 617 mm long, draws 26 W and reaches 3399 lm. It is the mid-size body of the series, suited to standard shelving, counters, workbenches and desks that need one even band of light from a white extruded aluminium profile.

Benefits

• Covers a standard shelf: at 617 mm the body lights a normal retail shelf or a worktop in one piece, with no dark joint in the middle.
• Twice the flux of the single module: 3399 lm with the clear diffuser at 130 lm/W, or 3184 lm with the multiprismatic one.
• Glare control when you need it: the multiprismatic diffuser spreads the light and softens reflections in display cases and at eye level.
• Solid profile: anodised white extruded aluminium with IK10 impact resistance, for commercial spaces with real footfall.
• Direct installation: the driver is included, the body mounts on the surface and the supply is class I.

Technical specifications

• Mounting type: surface mounted
• Material: extruded aluminium
• Colour: white RAL9010, anodised
• Number of modules: 2
• Power: 26 W
• Luminous flux: 3184 – 3399 lm, depending on the diffuser
• Luminous efficacy: 122 – 130 lm/W
• Optical efficiency: 86.2 % – 92.1 %
• Diffuser: clear or multiprismatic
• Colour temperature (CCT): 3000 K, 4000 K, 5000 K
• Colour rendering index: CRI 80
• Control: on/off
• Ingress protection: IP40
• Impact resistance: IK10
• Electrical class: I
• Driver included: yes
• Adjustable: no
• Dimensions: 617 x 59 x 68.5 mm

Applications and installation

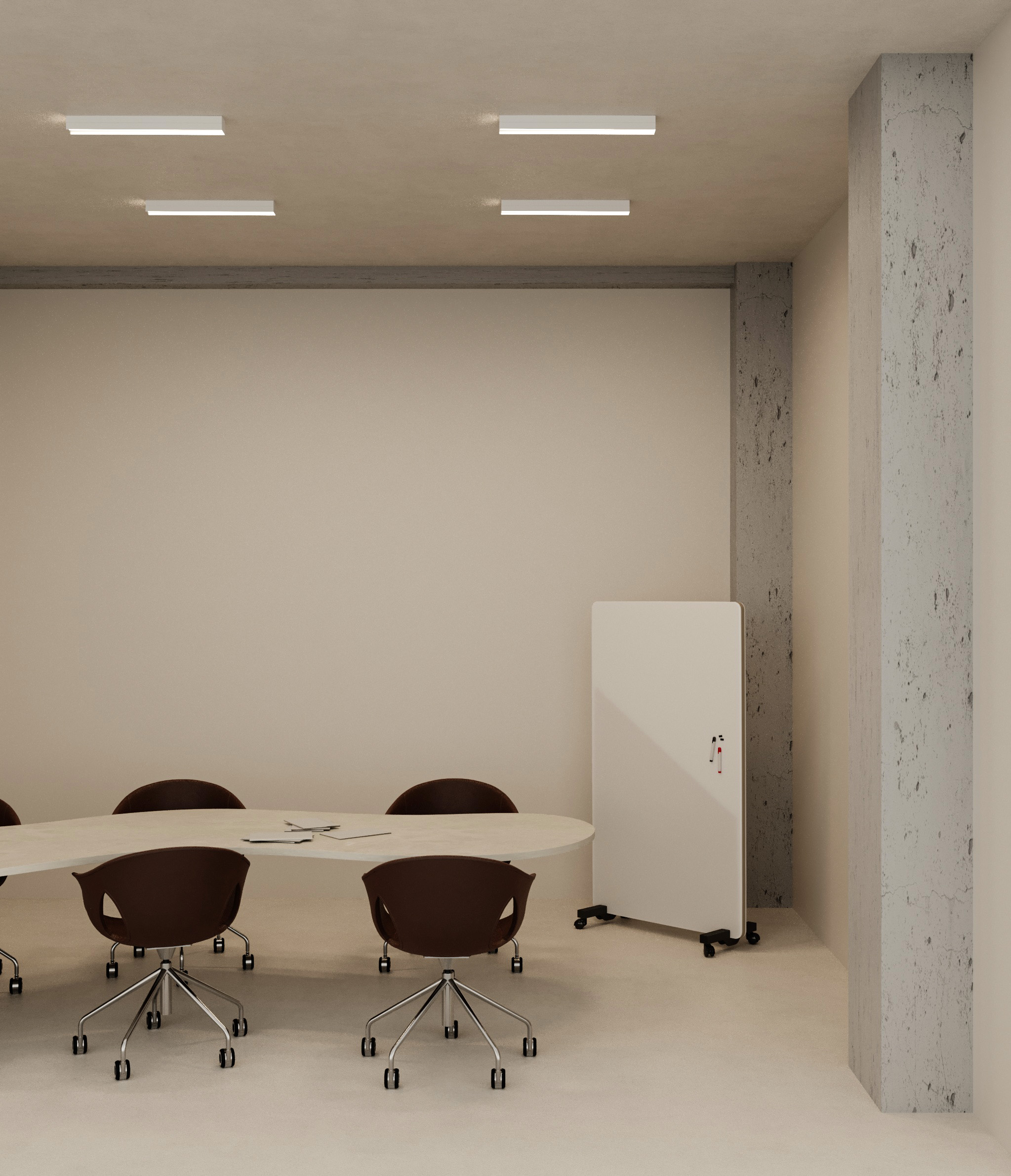

Mount this Display Line III linear LED luminaire on a ceiling, on a wall or under shelving in shops, supermarkets, offices, workshops, laboratories and indoor service rooms. IP40 restricts it to dry rooms. Pick 3000 K over warm food displays, 4000 K in offices and 5000 K in workshops or technical zones. The connection is direct and earthed, switched on and off from the wall. The body is designed and built in Europe.

Frequently asked questions

How many bodies cover a 3 m shelf? At 617 mm each, roughly five units fitted end to end. For long runs, also consider the 5-module version of 1585 mm.

Which diffuser is more efficient? The clear one: 3399 lm and 130 lm/W against 3184 lm and 122 lm/W for the multiprismatic. The difference buys you visual comfort.

Is the driver supplied? Yes. The driver sits inside the body and the luminaire wires straight to the mains in class I.
