Astraline G25 Slim Magnetic Track LED Luminaire 25W

Astraline G25 Slim Magnetic Track LED Luminaire 25W

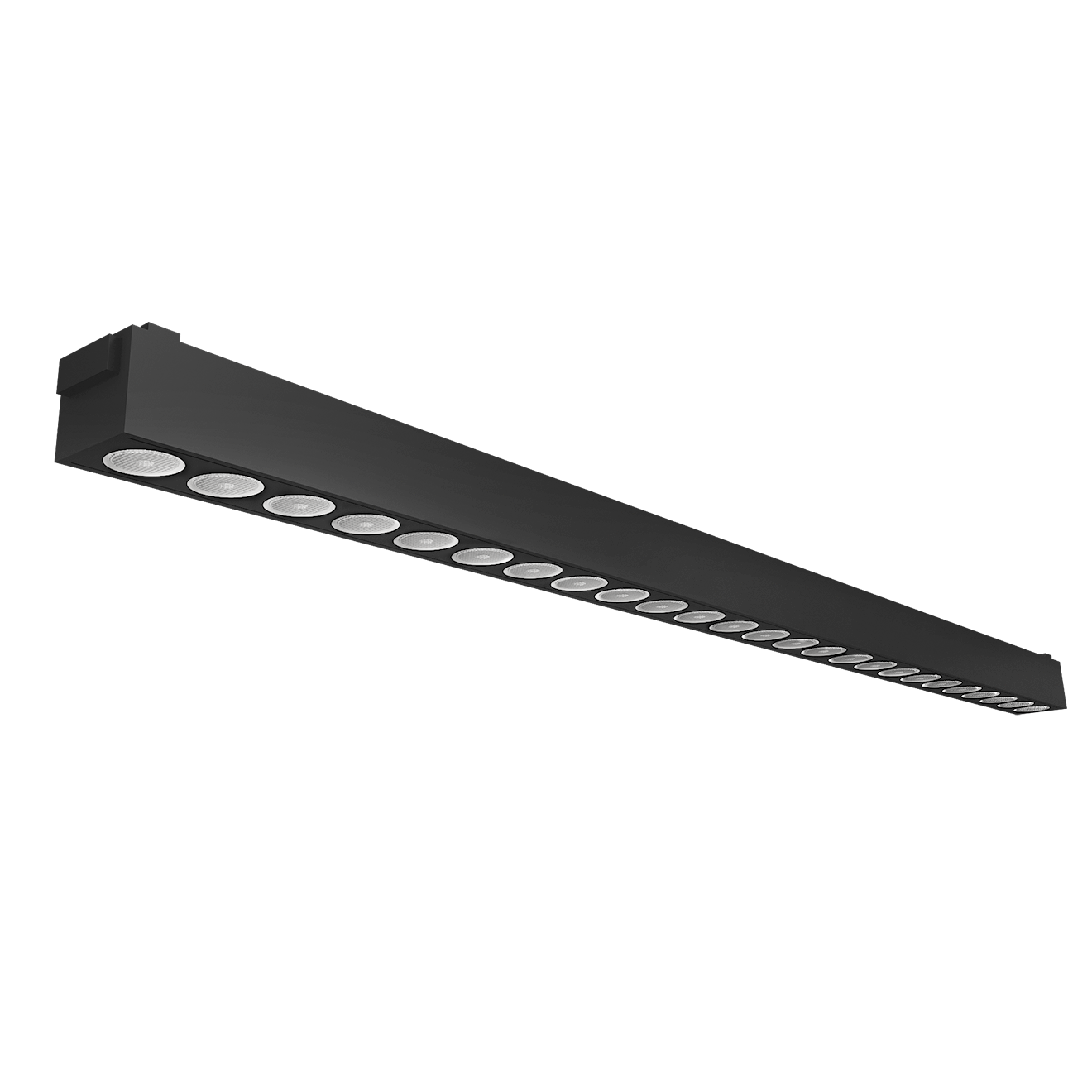

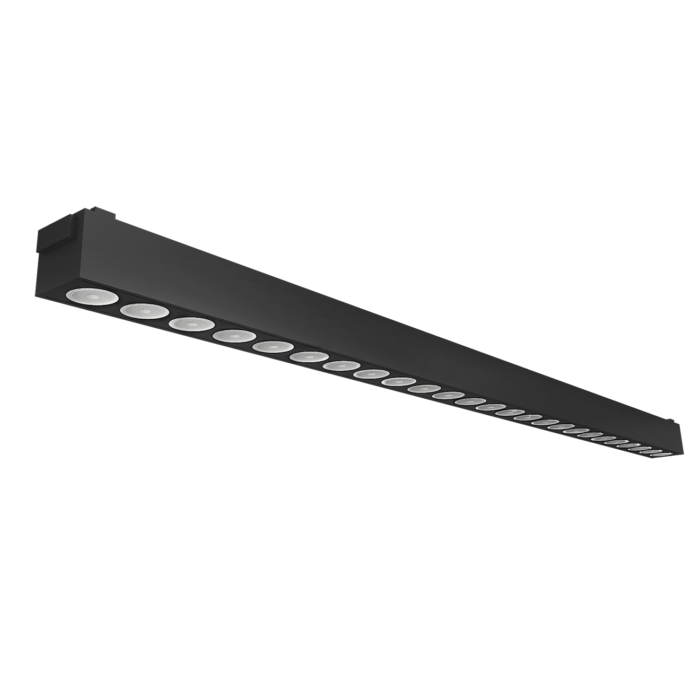

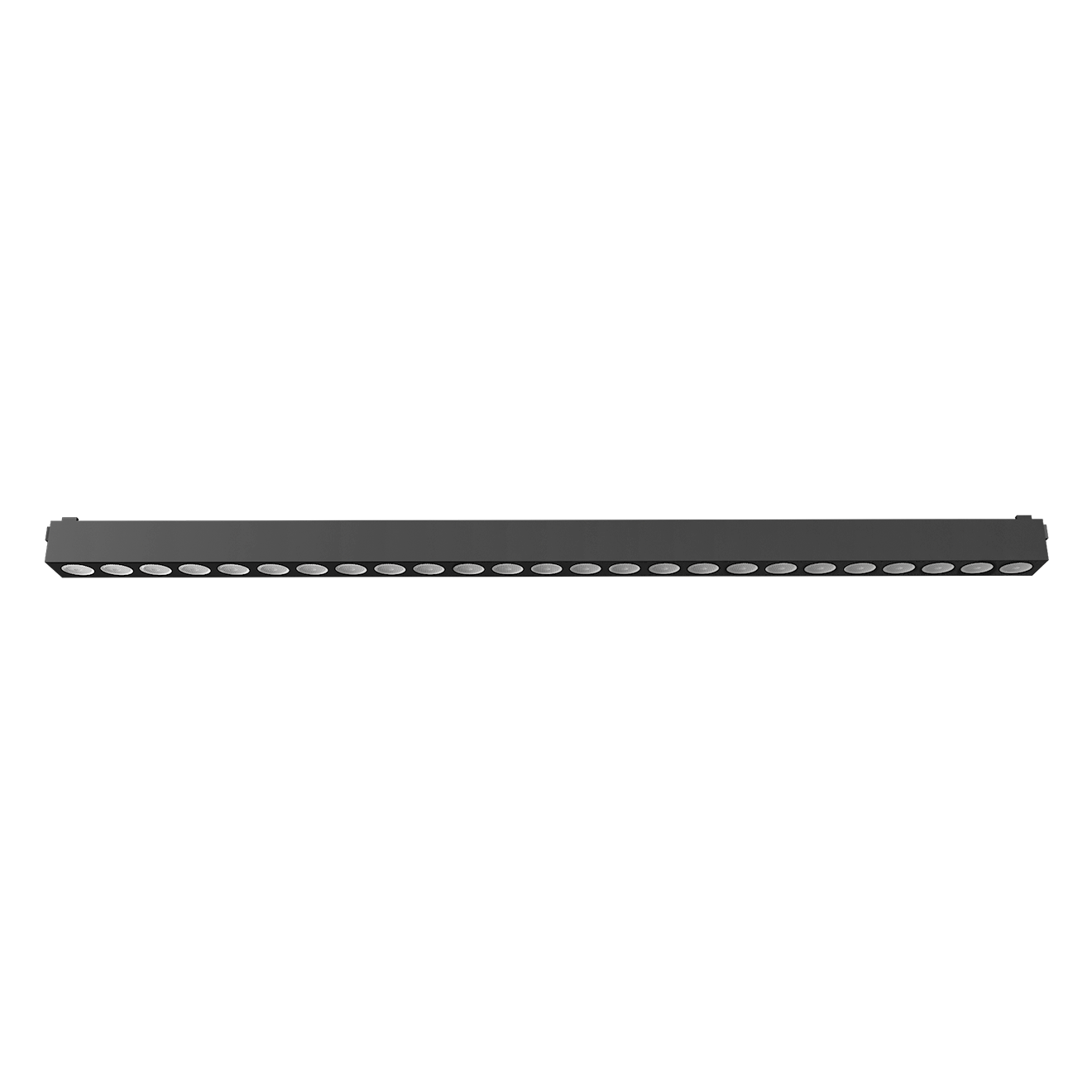

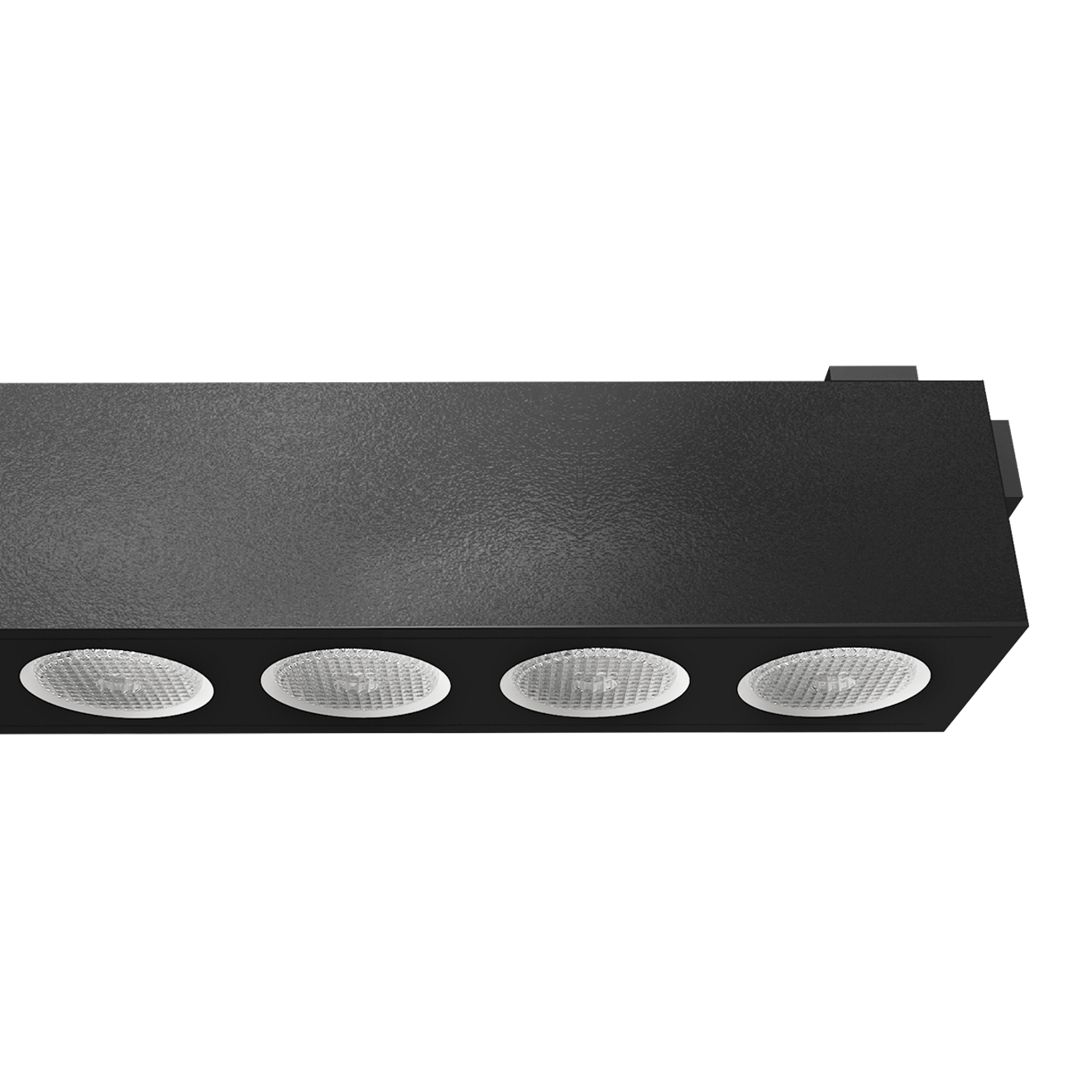

The Astraline G25 linear LED luminaire is the longest profile in the series: a 555 mm body of 25 W with 25 integrated LEDs for the slim magnetic track. It is meant for general lighting in large spaces such as showrooms, open-plan offices and stores, where you want coverage with no shadow gaps. It speaks to architects and fit-out companies working with low-voltage magnetic tracks.

Benefits

• Even coverage over large areas: 25 LEDs along 555 mm spread 1699 lm without patches or dark gaps.
• Medium 30 degree distribution: a balance between general light and emphasis on the areas that matter.
• Quick reconfiguration: slide the body along the track whenever the layout changes.
• Faithful colour: CRI 90, at 3000 K or 4000 K.
• Low draw, long service: LED technology with a luminous efficiency of 88.2 %.
• Minimal line: a 24 x 26 mm black aluminium profile that reads as a thin line on the ceiling.

Technical specifications

• Mounting type: magnetic, on a 48 V DC slim track
• Material: aluminium
• Colour: black
• Power: 25 W
• Number of LEDs: 25
• Luminous flux: 1699 lm
• Luminous efficacy: 68 lm/W
• Luminous efficiency: 88.2 %
• Optic: medium, 30 degree beam
• Colour temperature: 3000 K or 4000 K
• Colour rendering index: CRI 90
• Control: on/off
• Power supply: 48 V DC through the track; power unit not included
• Electrical class: III
• Ingress protection: IP20
• Dimensions: 555 x 24 x 26 mm
• Accessory: 48 V DC slim magnetic track

Applications and installation

Astraline G25 installs on the low-voltage 48 V DC slim magnetic track, mounted on the surface or recessed into the ceiling. Installation is quick and lets you reposition fittings as the space demands, which counts in dynamic environments where layouts change often. Typical projects are showrooms, open-plan offices, large-format stores, conference rooms and generous living rooms. IP20 keeps this Astraline G25 linear LED luminaire in dry interiors. The unit is designed and produced in Europe.

Frequently asked questions

How many G25 bodies does an open-plan office need? That depends on the area and the required illuminance. Send us the floor plan and we will calculate it.

Can G25 share a track with G10 and G15? Yes. All three use the same 48 V DC slim track and the same colour temperatures.

Is the power unit supplied? No. The 48 V DC power unit is chosen separately, according to the total load installed on the track.
