Invisilux W Adjustable Recessed LED Spotlight 12W

Invisilux W Adjustable Recessed LED Spotlight 12W

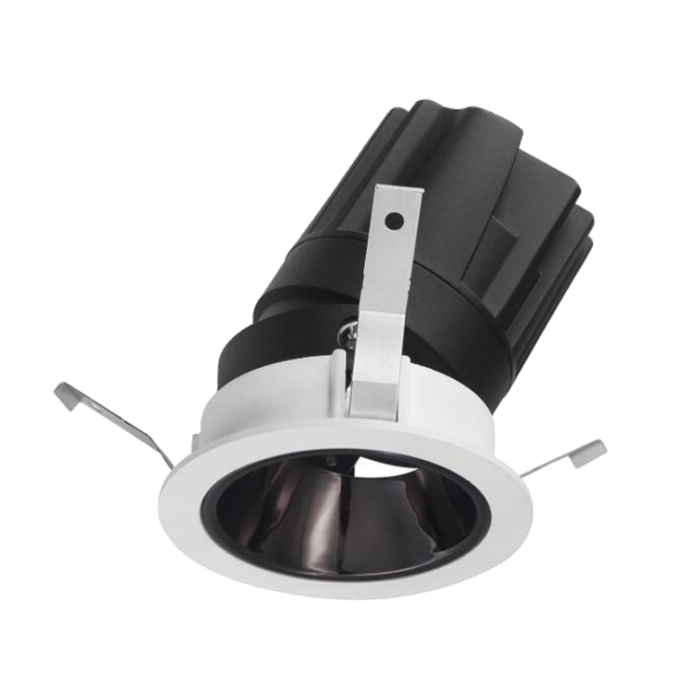

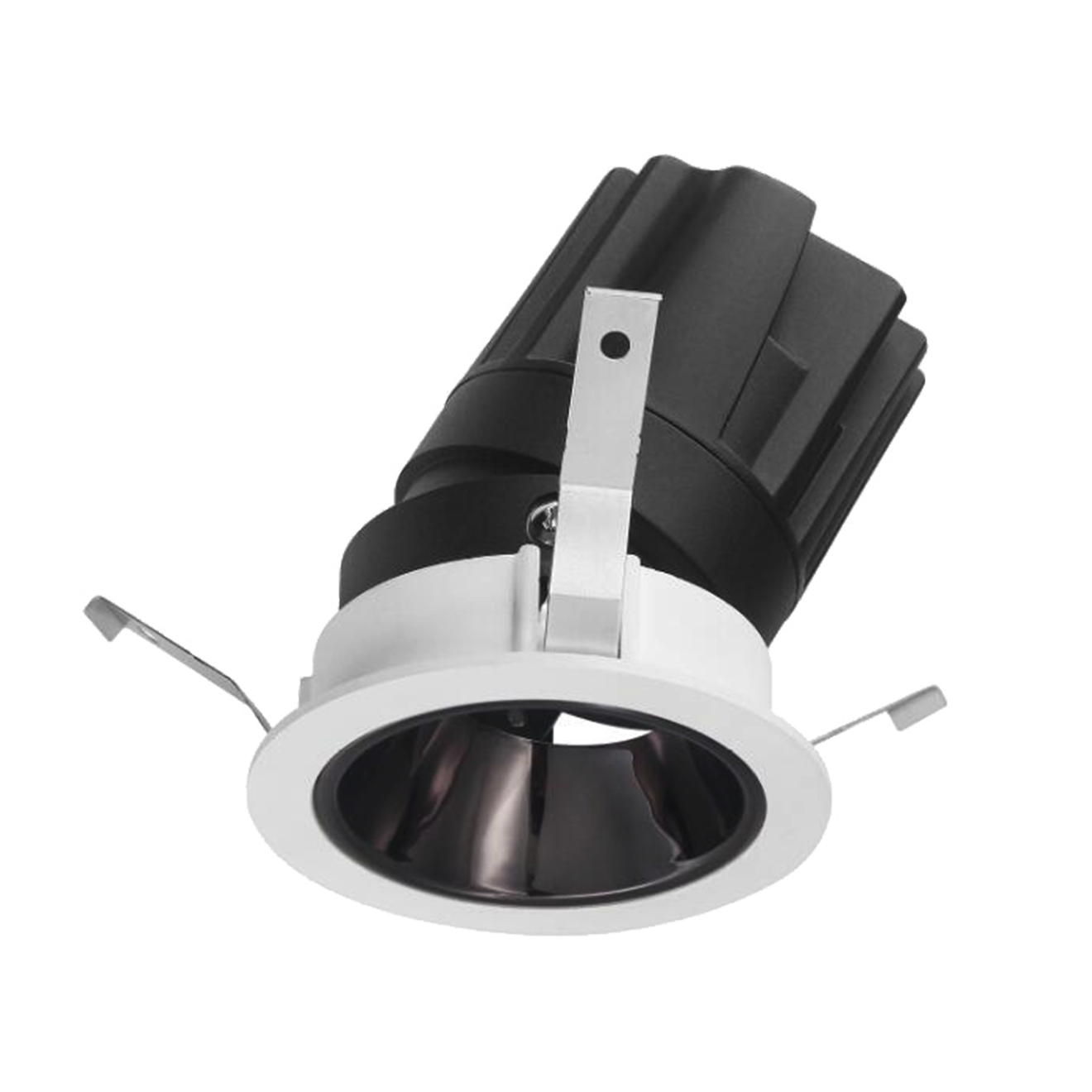

The Invisilux W recessed LED spotlight is an adjustable 12 W fitting with a 38 degree beam and CRI 90. It suits homeowners, offices and shops that want to lift a wall, a bookcase or a product with one discreet white body set into a plasterboard ceiling. It delivers 1164 lm and arrives with its driver.

Benefits

• A 38 degree beam sits between accent and general light: tight enough to shape an object, wide enough to cover a work surface.
• Colours you can trust: CRI 90 keeps the real tones of timber, artwork and merchandise.
• Re-aim it later: the adjustable body lets you move the accent whenever the furniture or the display changes.
• Steady output from 12 W: 1164 lm at 89.5 lm/W, with 89 % optical efficiency.
• Power factor above 0.9: a clean load on the circuit, which matters when you install many fittings on one line.

Technical specifications

• Mounting type: recessed in ceiling
• Material: aluminium
• Colour: white RAL9010
• Power: 12 W
• Luminous flux: 1164 lm
• Luminous efficacy: 89.5 lm/W
• Optical efficiency: 89 %
• Optic: wide, 38 degree beam
• Colour temperature (CCT): 3000 K or 4000 K
• Colour rendering index: CRI 90
• Power factor: above 0.9
• Control: on/off
• Supply voltage: 220 – 240 V AC
• Ingress protection: IP40
• Electrical class: III
• Driver included: yes, mounted outside the housing
• Adjustable: yes
• Dimensions: 86 x 94 mm

Applications and installation

Set this Invisilux W recessed LED spotlight into plasterboard ceilings in living rooms, hallways, offices, meeting rooms, shops and cafes. IP40 keeps dust out but not water, so the fitting stays in dry rooms. Being class III, it runs from the supplied driver placed above the ceiling void, switched on and off from the wall. Allow 86 mm of diameter, 94 mm of depth and room for the driver alongside. Both the design and the manufacturing are European.

Frequently asked questions

What distance suits a 38 degree beam? The higher the ceiling, the larger the pool of light on the floor. Over a picture wall or a work table, 38 degrees gives a clear pool without hard edges.

Can I use it with a dimmer? No. Invisilux W ships with on/off control. Ask our team about other Invisilux fittings if you need dimming.

How much ceiling depth do I need? The body is 86 mm across and 94 mm deep, plus the external driver. Check the void above your ceiling before you order.
