Titan Pedestrian Crossing LED Lighting System 250-490W

Titan Pedestrian Crossing LED Lighting System 250-490W

The Titan pedestrian crossing LED lighting system lights people vertically, from the direction each driver approaches. It serves municipalities, road authorities and public lighting operators that must reduce accidents on dark crossings. Titan floodlights work together with signal panels carrying two synchronised flashing amber lamps.

Benefits

• Pedestrians visible from a distance: the dedicated elliptical beam covers the crossing and the pedestrian, without glare.

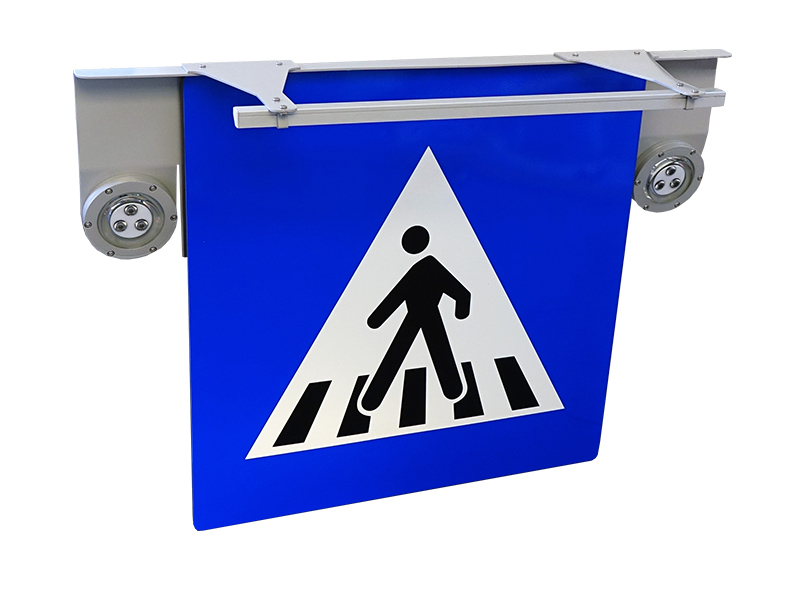

• Active warning: every panel carries two amber lamps with a concentrated, synchronised flash. The panel itself is lit directly.
• Round the clock operation: the amber lamps run on batteries during the day. They recharge at night from the street lighting circuit.
• Power matched to the road: 250 W covers one or two lanes per direction. 490 W covers three lanes.
• Built for demanding climates: the floodlights are rated minimum IP65. They operate between -30 degrees C and +50 degrees C, which suits hot, dusty Gulf roads.
• Fits existing brackets: the clamps mount on lighting arms of 50-80 mm diameter.

Technical specifications

• Components: Titan floodlights (one or two per direction) and signal panels with amber lamps
• Housing material: anodised aluminium
• Light source: OSRAM LEDs with elliptical focusing dedicated to pedestrian crossings
• Total power: 250 W (1-2 lanes per direction) or 490 W (3 lanes per direction)
• Supply: 230 V AC from the street lighting network
• Amber lamps: 230 V at night, batteries during the day, recharged overnight
• Electrical insulation class: I, protective earthing mandatory
• Connections: junction boxes on each floodlight
• Ingress protection: minimum IP65
• Operating temperature: -30 degrees C to +50 degrees C
• Titan floodlight dimensions: 150 x 305 x 440 mm
• Titan floodlight weight: approximately 5 kg
• Panel and floodlight assembly: 1000 mm long, 9 kg
• Fixing: clamps for brackets of 50-80 mm diameter
• Not included: lighting poles and brackets
• Marking: CE

Applications and installation

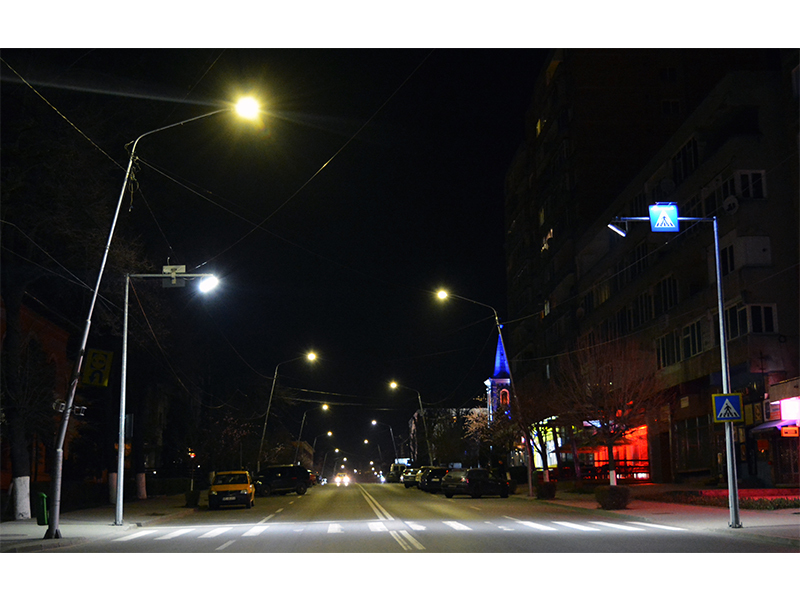

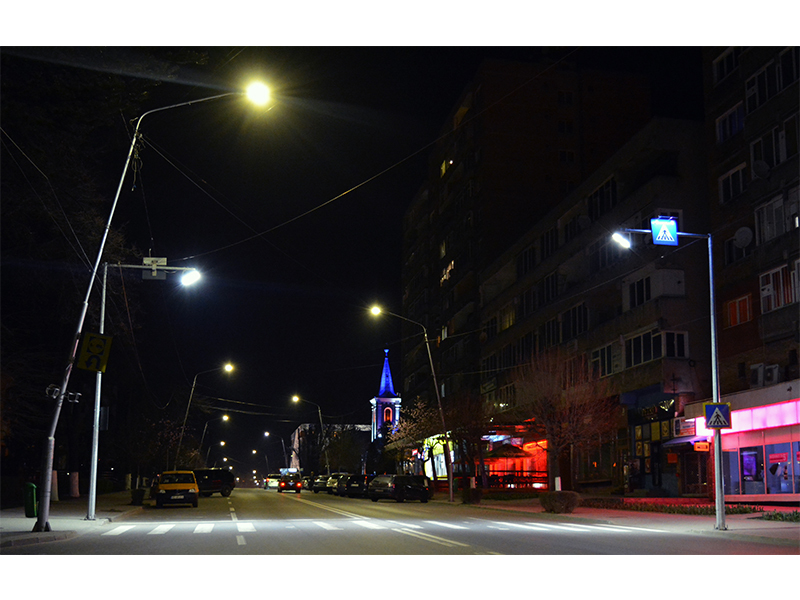

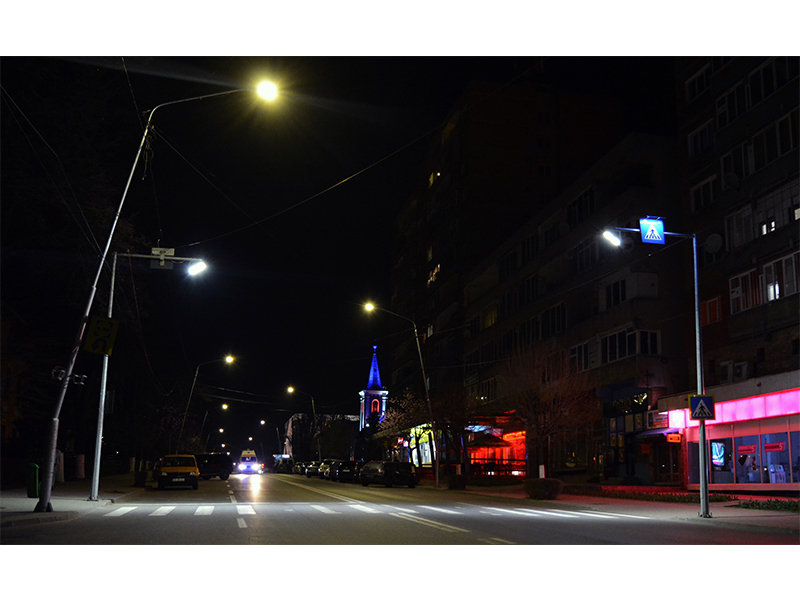

You use this crossing lighting system on public, commercial and residential roads. Mount one assembly per traffic direction on the existing bracket. Aim the floodlights at the pedestrian from the driver’s line of sight. Power comes from the street lighting circuit, and all connections run through the junction boxes on the floodlights. Protective earthing is mandatory. Poles and brackets stay outside the delivery, so confirm their diameter before ordering.

Frequently asked questions

Does the warning work during the day, when the network is off? Yes. The amber lamps switch to their batteries during daylight hours. They recharge at night, while the lighting circuit is live.

Which power do I choose for my road? 250 W covers both directions on one or two lanes per direction. For three lanes per direction the Titan pedestrian crossing LED lighting system reaches 490 W.

Are the poles included? No. The delivery covers the floodlights, the panels and the mounting clamps. You supply the poles and brackets separately.
