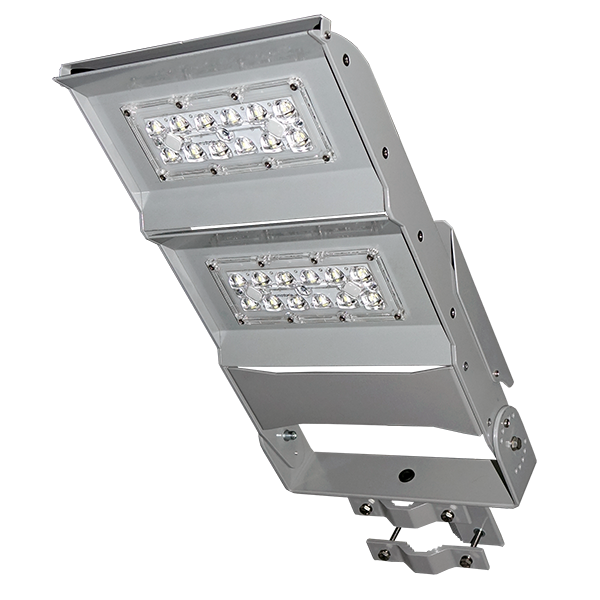

Topaz Street LED Floodlight 12-48 LEDs 30-200W

Topaz Street LED Floodlight 12-48 LEDs 30-200W

The Topaz street LED floodlight is a modular platform. You choose 12, 24, 36 or 48 OSRAM LEDs, between 30 and 200 W. It suits consultants and municipalities that want one luminaire family for every road, from footpaths to boulevards. The latest LED generation delivers minimum 115 lm/W.

Benefits

• Four power steps: 30-50 W, 50-100 W, 100-150 W or 150-200 W, according to the number of LEDs.
• Minimum 115 lm/W: the highest efficacy in this street range, at either colour temperature.
• External driver: you replace the separate driver easily, and the body runs cooler.
• Elliptical asymmetric beam: dedicated lenses spread the flux along the carriageway, with even light between poles.
• Indoor and outdoor use: the same body works on a pole or inside a hall.
• IK10 impact rating with an electrostatically powder coated aluminium housing in standard grey, weighing 4.1 kg.

Technical specifications

• Housing material: electrostatically powder coated aluminium
• Housing colour: grey (standard)
• Number of LEDs (configurable): 12, 24, 36 or 48
• Total power: 30-50 W (12 LEDs), 50-100 W (24 LEDs), 100-150 W (36 LEDs), 150-200 W (48 LEDs)
• Light source: high power OSRAM LEDs, 100,000 hours
• Luminous efficacy: minimum 115 lm/W
• Colour rendering index (CRI): 80 for neutral white, 70 for cool white
• LED colour (configurable): neutral white 4000 K or cool white 5000 K
• Focusing: elliptical, elliptical asymmetric beam
• Supply: 230 V AC standard, 90-230 V AC, 50-60 Hz, external driver
• Electrical insulation class: I
• Power factor: above 0.95
• Total harmonic distortion: below 20%
• Ingress protection: IP65
• Impact resistance: IK10
• Operating temperature: -20 degrees C to +40 degrees C
• Use: outdoor and indoor
• Weight: 4.1 kg
• Markings: CE, F (mounting on normally flammable surfaces)

Applications and installation

Use the range for street lighting, park lighting, garden lighting, perimeter lighting and general lighting. It fits commercial, residential and public projects. You fix the body on a vertical pole, on a bracket or on a flat surface. Install the external driver close to the luminaire or inside the pole. The F marking allows direct mounting on normally flammable surfaces. IP65 covers outdoor duty, and the housing suits dusty sites.

Frequently asked questions

How do I choose the number of LEDs? Follow the road width and the mounting height. Take 12 LEDs for footpaths, 24 for residential streets, 36 and 48 for arteries and large car parks.

Why an external driver? You change the driver without removing the luminaire. The electronics also stay away from the heat of the LEDs.

How efficient is it against the Proton range? The Topaz street LED floodlight delivers minimum 115 lm/W. The Proton II series reaches 110 lm/W at the same colour temperatures.
