Astraline G15 Slim Magnetic Track LED Luminaire 15W

Astraline G15 Slim Magnetic Track LED Luminaire 15W

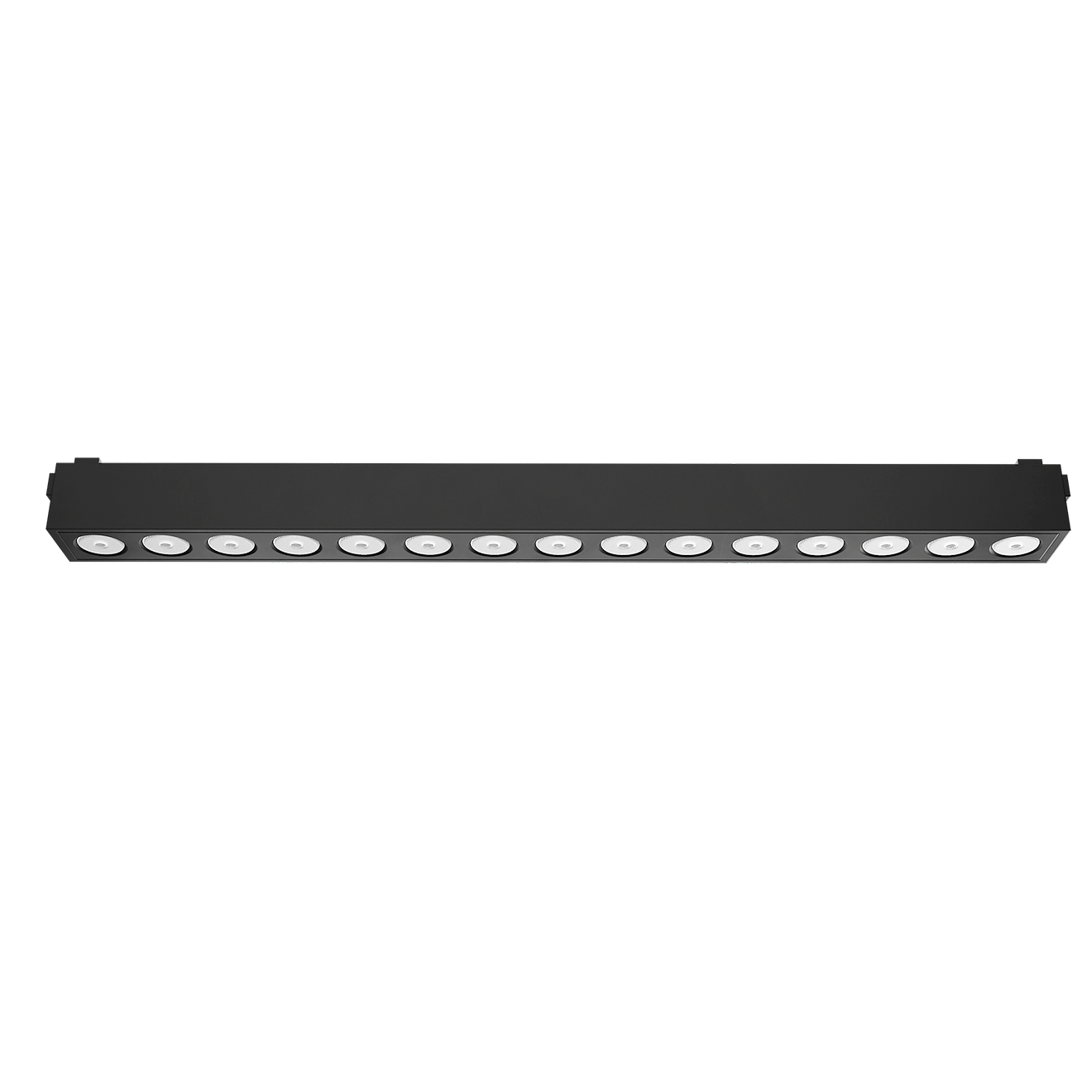

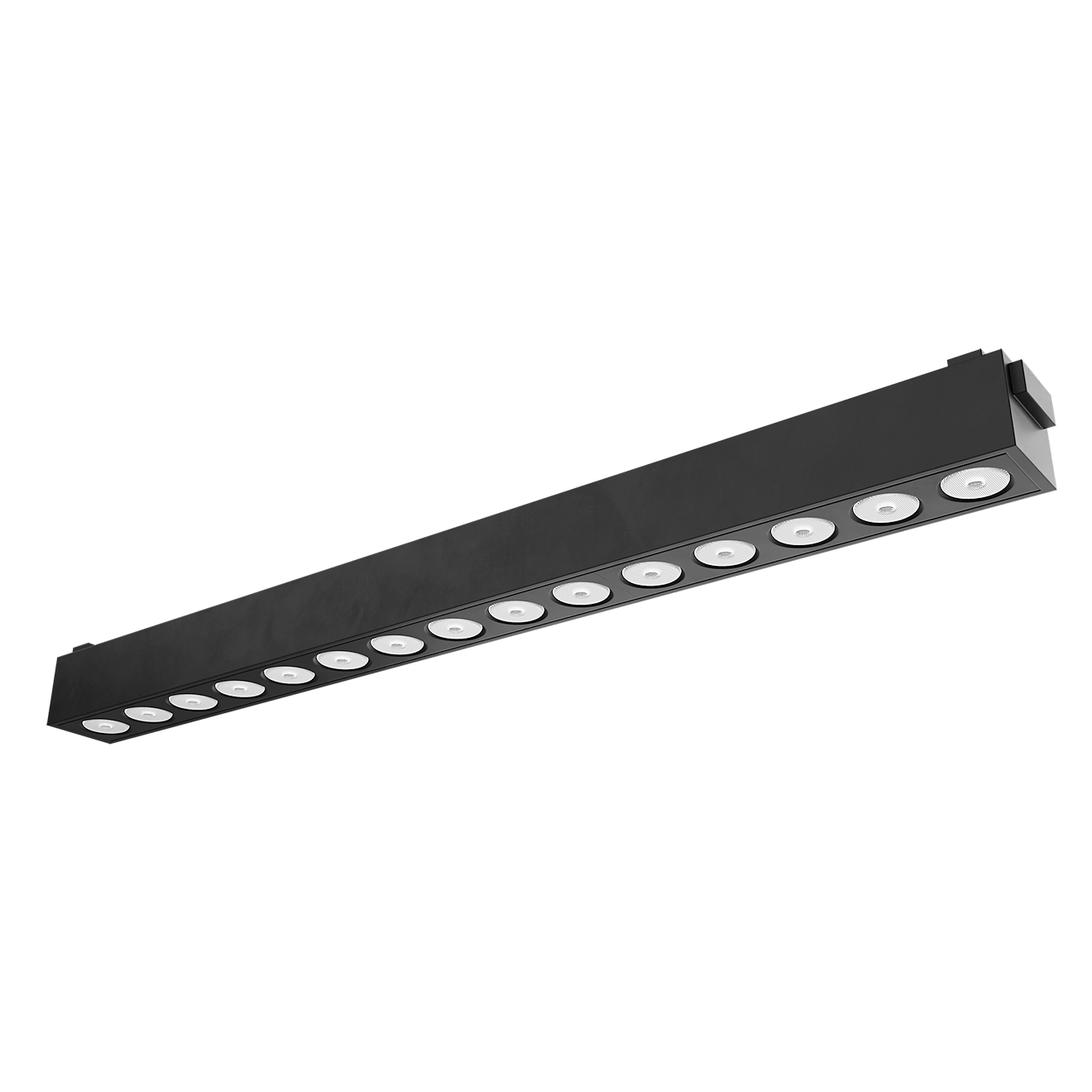

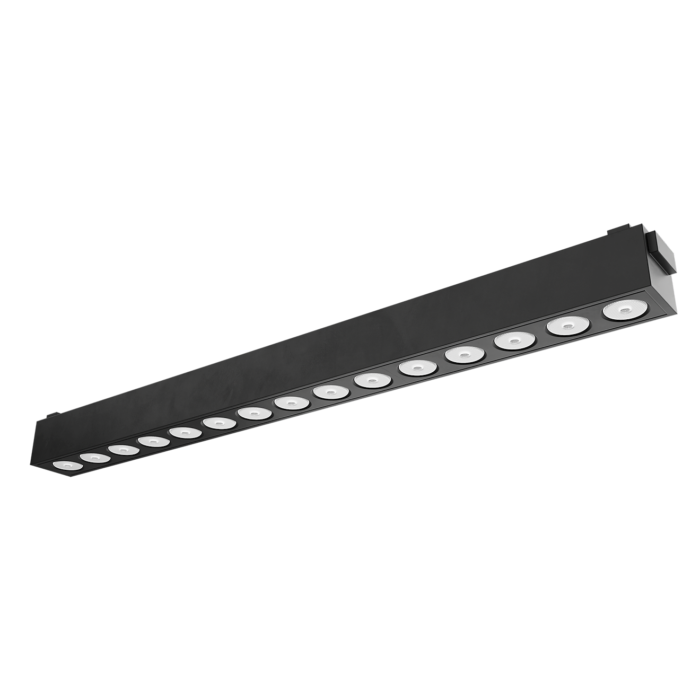

The Astraline G15 linear LED luminaire is the mid-length profile of the series: 338 mm, 15 W and 1049 lm on the slim magnetic track. Use it for general lighting or as a task light, for example above a desk. It is written for fit-out companies, offices and stores that want a lighting system they can rearrange without an electrician.

Benefits

• Task light on the desk: the 30 degree beam concentrates 1049 lm onto the working surface rather than the whole room.
• Layout changes without rewiring: the body detaches and moves to any point along the track.
• High colour rendering: CRI 90, in 3000 K and 4000 K versions.

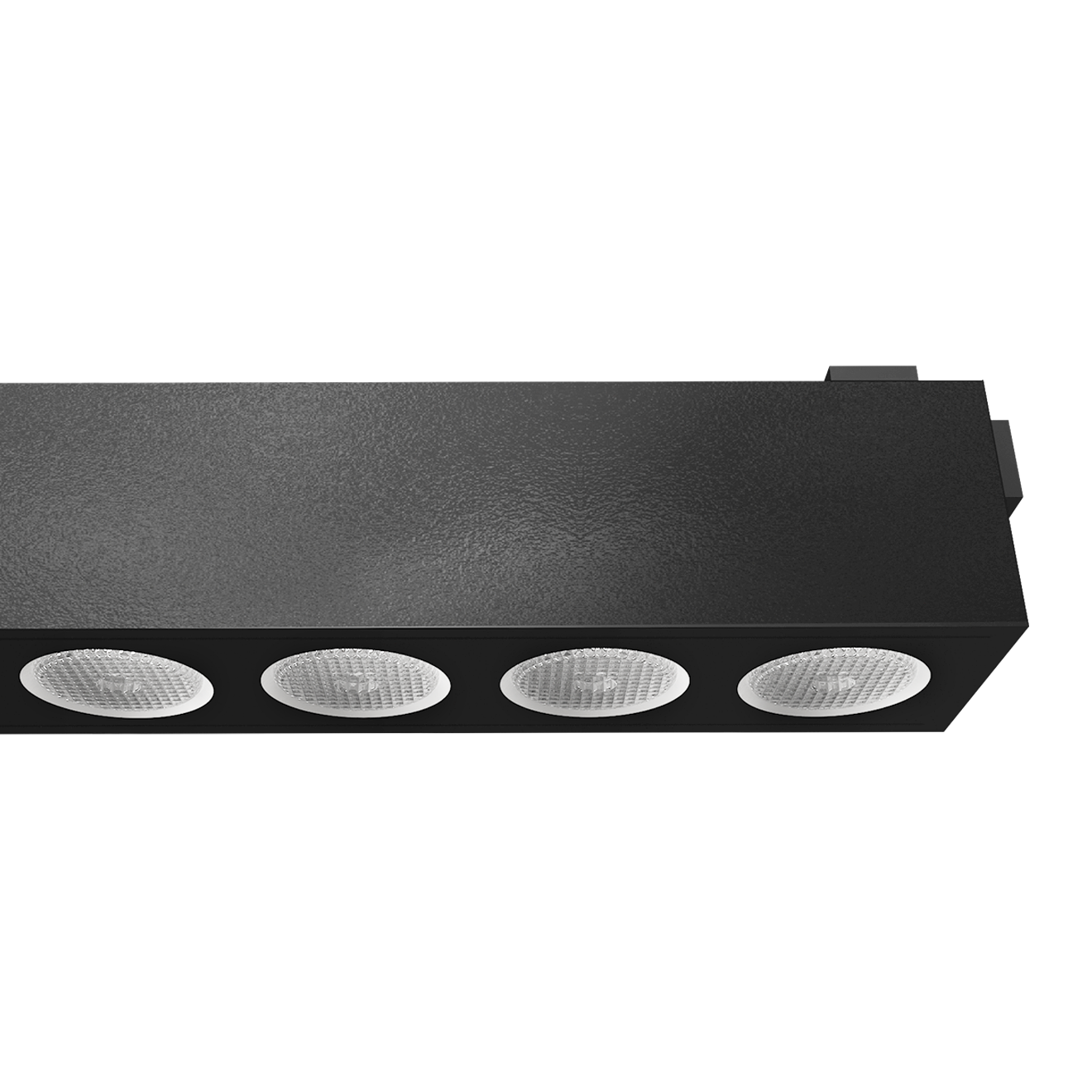

• Discreet linear design: a 24 x 26 mm profile in standard black that merges visually with the track.
• Safety through low voltage: 48 V DC, class III, with no 230 V components inside the body.
• Modular system: combine it on the same track with G10 and G25 for different illuminance levels.

Technical specifications

• Mounting type: magnetic, on a 48 V DC slim track
• Material: aluminium
• Standard colour: black
• Power: 15 W
• Luminous flux: 1049 lm
• Luminous efficacy: 70 lm/W
• Luminous efficiency: 84.4 %
• Optic: medium, 30 degree beam
• Colour temperature: 3000 K or 4000 K
• Colour rendering index: CRI 90
• Control: on/off
• Power supply: 48 V DC through the track; power unit sold separately
• Electrical class: III
• Ingress protection: IP20
• Dimensions: 338 x 24 x 26 mm
• Accessory: 48 V DC slim magnetic track

Applications and installation

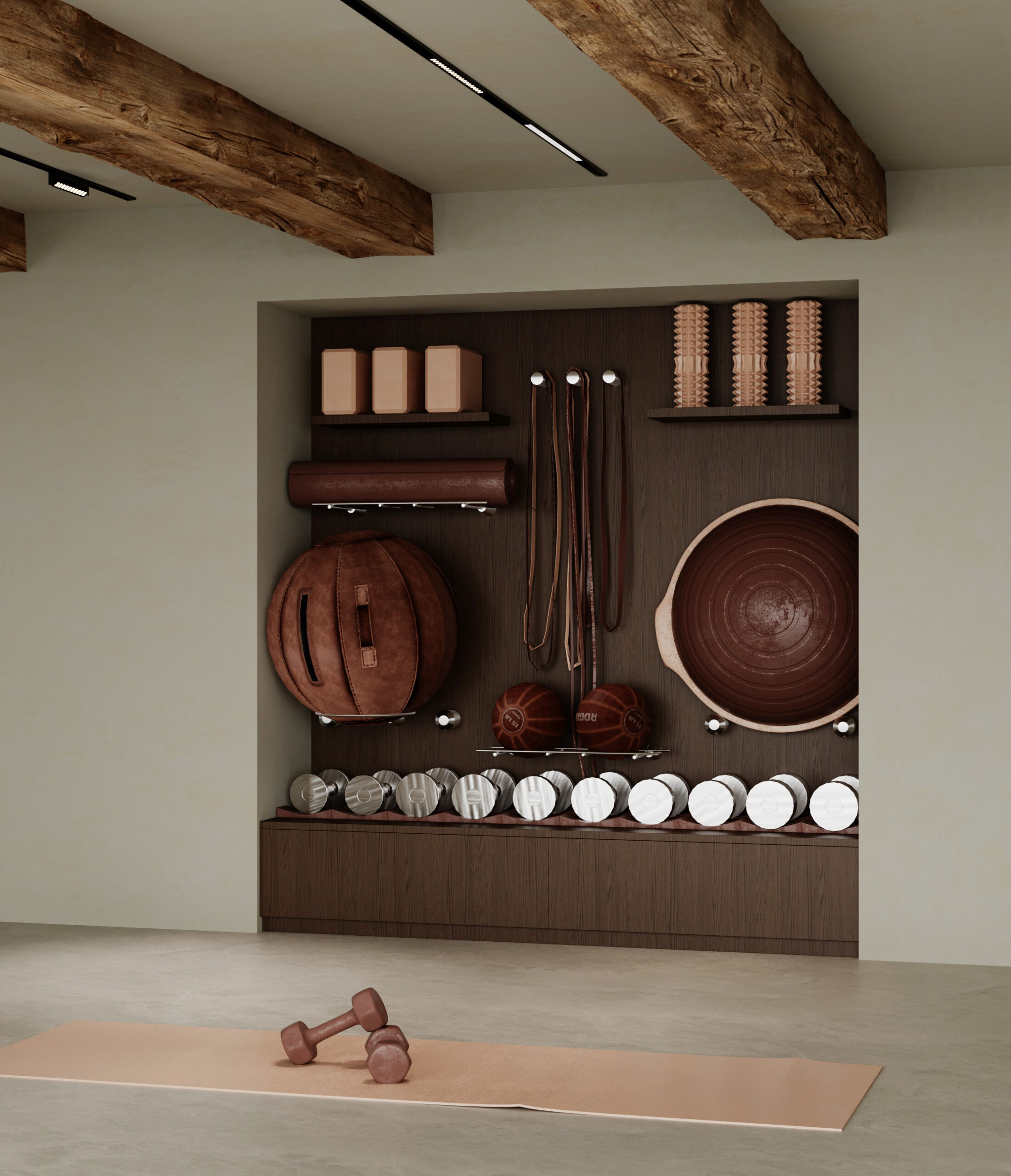

Fit the Astraline G15 linear LED luminaire to the 48 V DC slim magnetic track, surface mounted or recessed into the ceiling. It suits offices above workstations, receptions, shops, open kitchens and living rooms. Because installation is simple and the system adapts to different rooms, you can use it in commercial and residential projects alike. IP20 restricts it to dry interiors. On request, our team also prepares the lighting design. Design and build are European throughout.

Frequently asked questions

Does it work as a task light? Yes. The 30 degree beam makes it suitable as a task light, for example above a desk.

Does it come with a power unit? No. The 48 V DC power unit is bought separately and sized to the total load on the track.

What colour is the body? The standard colour is black.
