Galaxy 10 1m Adjustable Linear LED Luminaire 15-26W Outdoor

Galaxy 10 1m Adjustable Linear LED Luminaire 15-26W Outdoor

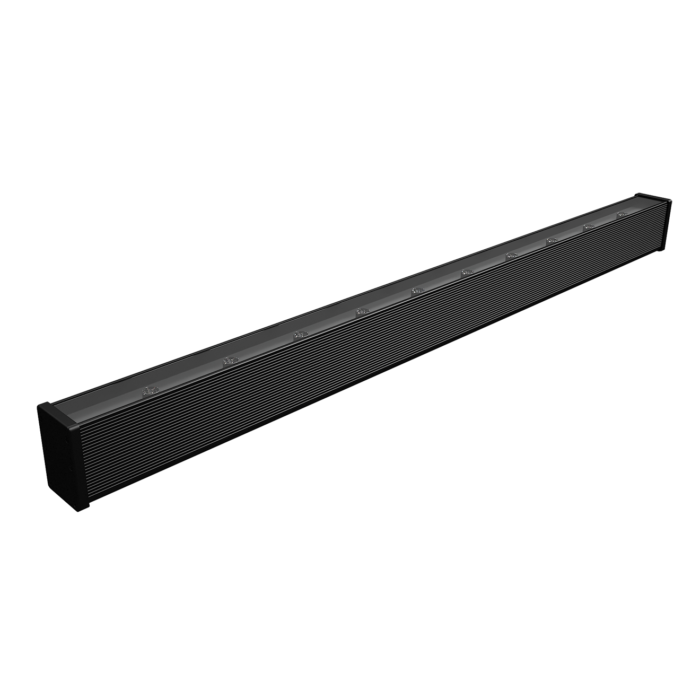

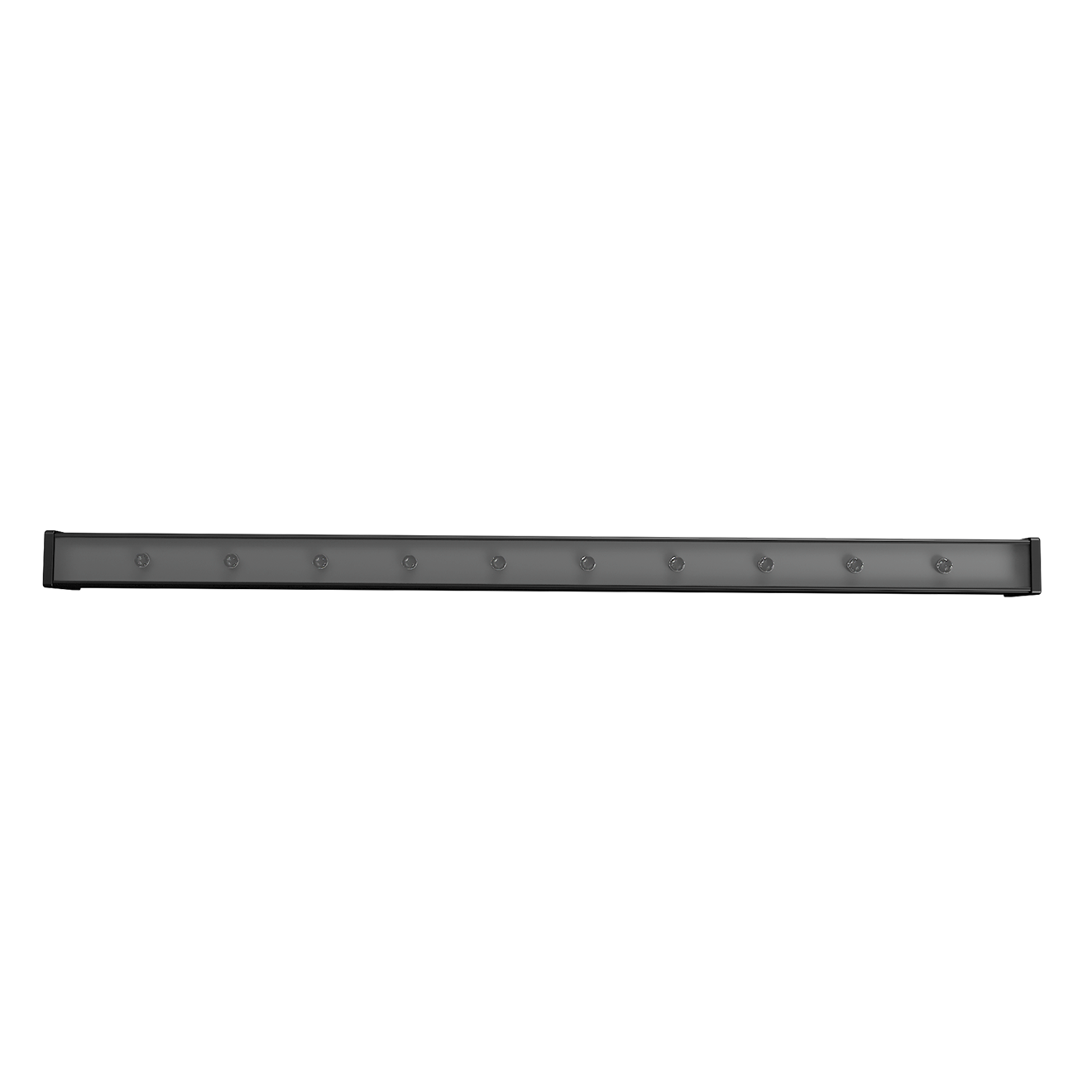

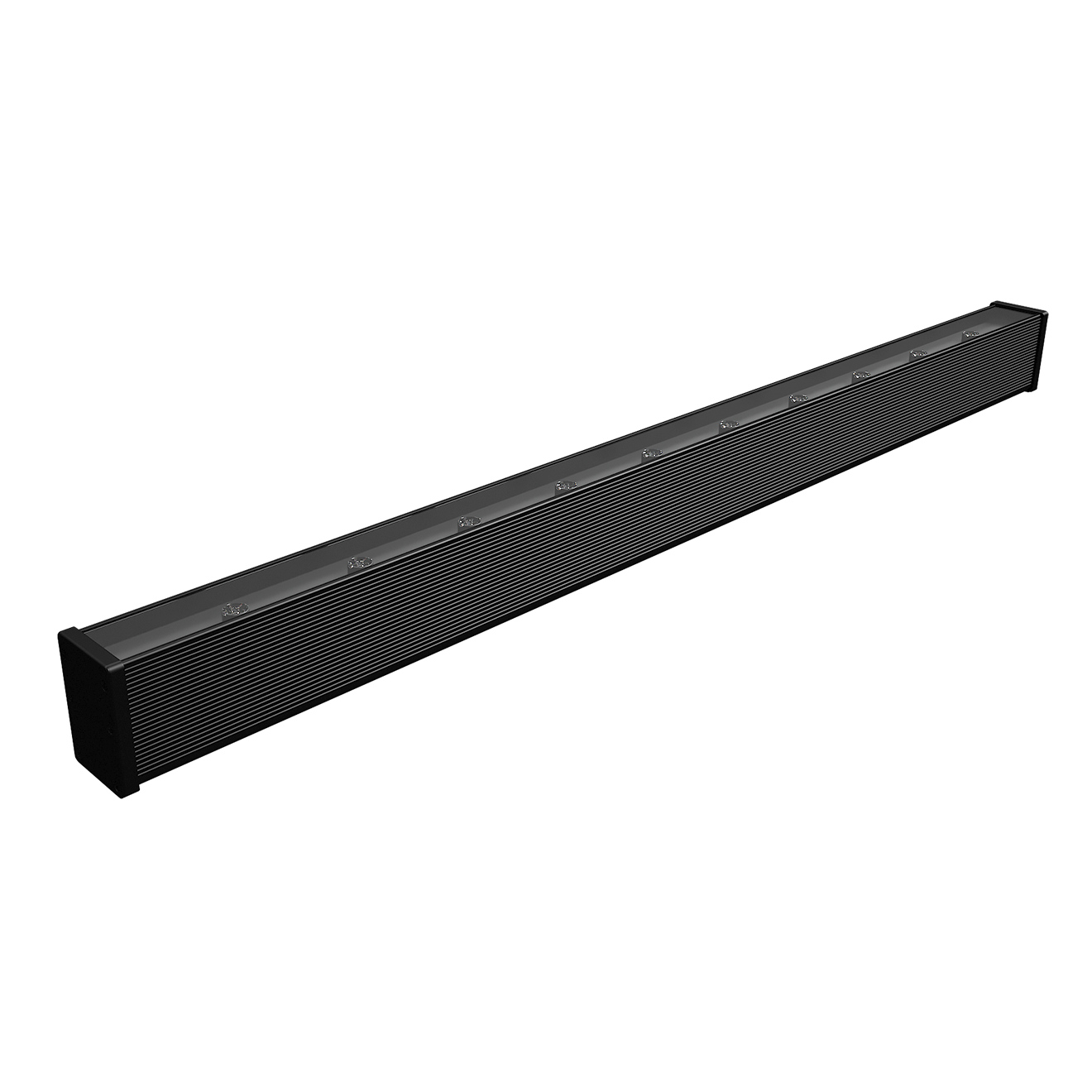

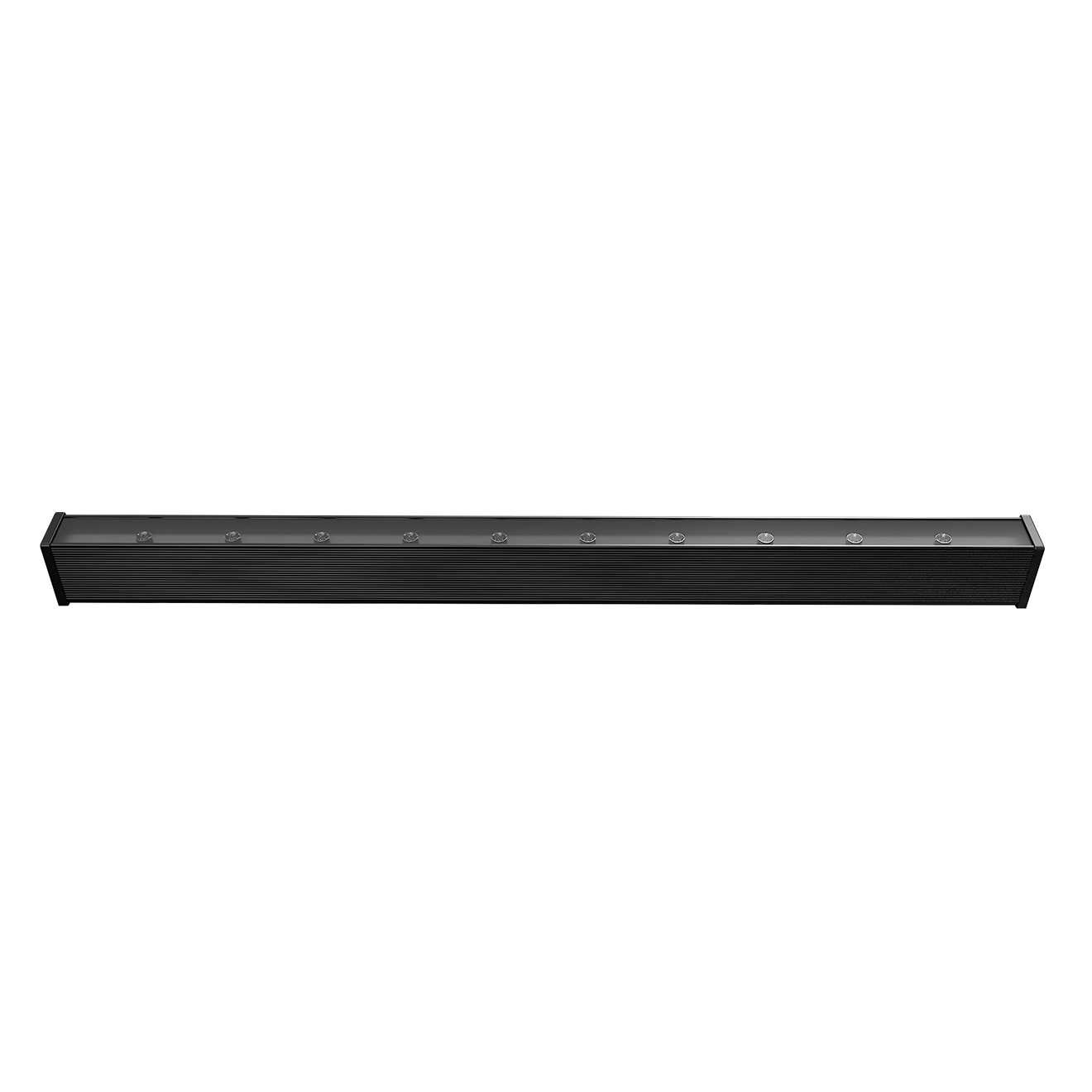

The Galaxy 10 1m adjustable linear LED luminaire is a one metre outdoor profile rated 15 or 26 W. It fixes to ceiling, floor or wall and rotates in the horizontal plane. Architects and lighting contractors use it where a line of light must follow the geometry of a building, protected to IP66 and IK10.

Benefits

• Two adjustable brackets: the BK system moves between -50 degrees and +90 degrees with metal end caps, while the standard system covers -90 degrees to +90 degrees with plastic end caps.
• Six facade optics: wide, medium, narrow, elliptical, wall grazing and wall washer, so one housing either washes a flat wall or grazes a texture.
• Up to 131 lm/W: at 26 W with the wall grazing optic you obtain 3399 lm; at 15 W, between 1660 and 1947 lm.
• Dimmable on DALI or 1-10V: the luminaire joins dynamic facade scenes, or runs simply on/off.
• Driver in the housing: nothing to conceal on the elevation, with a class I supply at 220-240 V AC.

Technical specifications

• Mounting type: ceiling, floor or wall, with BK adjustable bracket (-50 degrees / +90 degrees) or standard bracket (-90 degrees / +90 degrees)
• Material: extruded aluminium

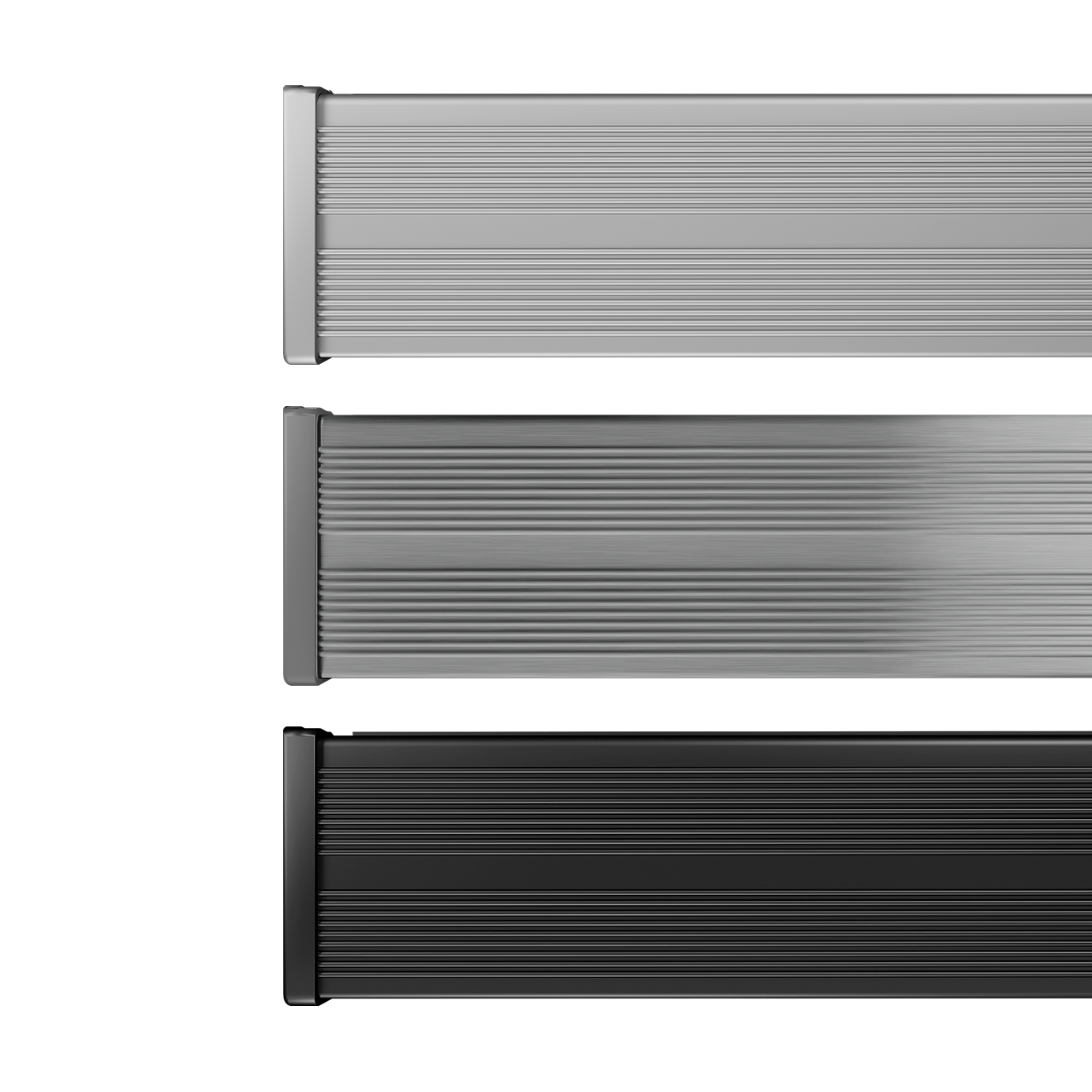

• Colours available: anodised aluminium silver RAL7040, powder-coated grey RAL7040, anodised black RAL9010
• End caps: metal on the BK system, plastic on the standard system
• Power range: 15 W to 26 W
• Luminous flux: 1660 to 3768 lm, depending on power and optic
• Luminous efficacy: 108 to 131 lm/W
• Optical efficiency: 75.5 % to 89.7 %
• Optics available: wide, medium, narrow, elliptical, wall grazing, wall washer
• Colour temperature: 3000 K, 4000 K, 5000 K
• Colour rendering index: CRI 80
• Control: DALI, 1-10V or on/off
• Supply voltage: 220 to 240 V AC
• Ingress protection: IP66
• Impact resistance: IK10
• Electrical insulation class: I
• Driver included: yes, in the housing
• Adjustable: yes, in the horizontal plane
• Dimensions: 83 x 58 x 1000 mm
• Options: RGB with DMX control; single colour (red, amber, blue, green) on request

Applications and installation

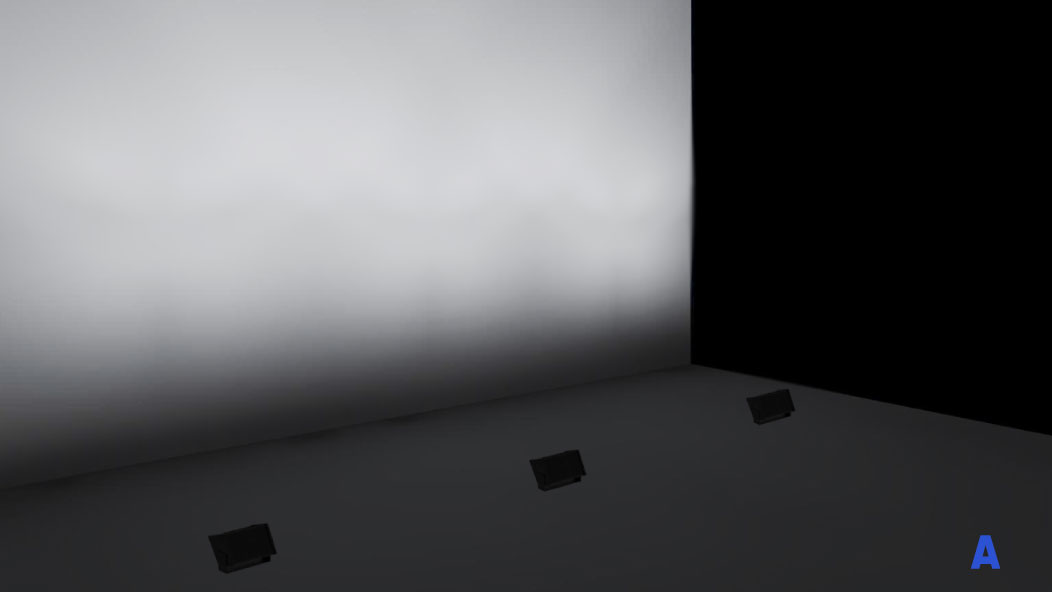

Fit the Galaxy 10 1m luminaire on office, hotel and retail facades, on bridge and walkway parapets, on columns, retaining walls, boundary walls and paths. Mounted at the base of a wall with the wall grazing optic it emphasises stone or brick. With the wall washer optic it covers a smooth surface evenly. IP66 sealing and the IK10 extruded aluminium body suit exposed positions where dust and driven rain reach the fitting. Designed and manufactured in Europe.

Frequently asked questions

What is the difference between the BK and standard brackets? The BK system rotates between -50 degrees and +90 degrees and has metal end caps. The standard system covers -90 degrees to +90 degrees with plastic end caps.

Can the facade be lit in colour? Yes. On request the luminaire is supplied as an RGB version with DMX control, or in a single colour such as red, amber, blue or green.

Can it be fixed to the floor? Yes. The Galaxy 10 1m luminaire mounts on any surface, ceiling, floor or wall, with the adjustable bracket.
