Proton SP II Street LED Floodlight 6 LEDs 15-20W

Proton SP II Street LED Floodlight 6 LEDs 15-20W

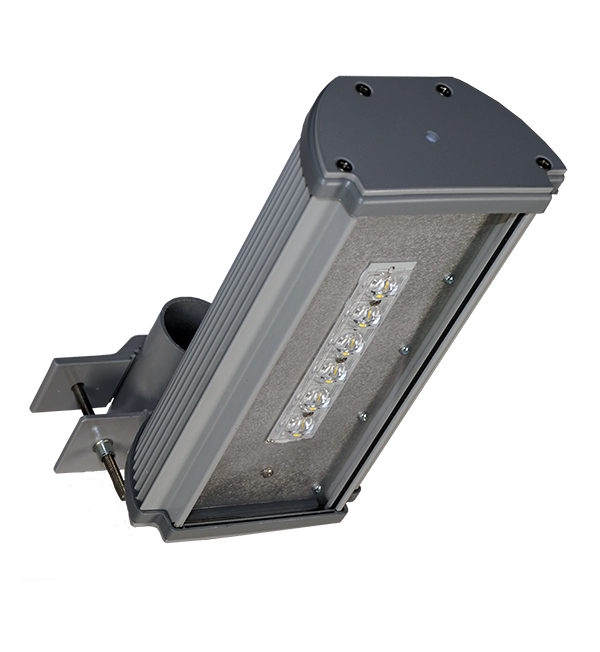

The Proton SP II street LED floodlight with 6 LEDs is the most compact model in the series. It serves municipalities, car park operators and property associations lighting walkways and secondary streets. It replaces power hungry classic lamps with a 15-20 W body that delivers minimum 110 lm/W.

Benefits

• Low draw, high output: the high power OSRAM LEDs deliver minimum 110 lm/W at either colour temperature.
• Elliptical asymmetric distribution: purpose designed lenses put light on the carriageway, not in neighbouring windows.
• No external driver: the power supply sits inside the housing, so installation needs only the mains cable.
• Weight of 1.5 kg: the powder coated aluminium body mounts easily on a pole, bracket or flat surface.
• IP66 and IK10 protection: the UV protected polycarbonate diffuser stands up to rain, dust and impact.
• Clean network: power factor above 0.95 and total harmonic distortion below 20%.

Technical specifications

• Housing material: electrostatically powder coated aluminium
• Diffuser: clear polycarbonate, UV protected
• Housing colour: other colours available on customer request
• Number of LEDs: 6
• Total power: 15-20 W
• Light source: high power OSRAM LEDs, rated life 100,000 hours
• Luminous efficacy: minimum 110 lm/W
• Colour rendering index (CRI): 80 for neutral white, 70 for cool white
• LED colour (configurable): neutral white 4000 K or cool white 5000 K
• Focusing: elliptical, elliptical asymmetric beam
• Supply: 90-230 V AC, 50-60 Hz, driver built into the housing
• Electrical insulation class: I
• Power factor: above 0.95
• Total harmonic distortion: below 20%
• Ingress protection: IP66
• Impact resistance: IK10
• Operating temperature: -20 degrees C to +40 degrees C
• Dimensions: 255 x 135 x 80 mm
• Weight: 1.5 kg
• Markings: CE, F (direct mounting on normally flammable surfaces)

Applications and installation

The luminaire covers street lighting, perimeter lighting and car park lighting in residential, commercial and public areas. Fix it on a vertical pole, on a bracket or on a flat surface. The F marking allows direct mounting on normally flammable surfaces, for example wooden fences or facades. Its modest power suits pedestrian paths, courtyards and access roads, where a larger body would over light the space.

Frequently asked questions

Which colour temperature can I choose? You have two options: neutral white 4000 K with CRI 80, or cool white 5000 K with CRI 70. Efficacy stays at minimum 110 lm/W in both cases.

Do I need a separate power supply? No. The driver sits inside the housing and accepts 90-230 V AC, 50-60 Hz.

Which climates does it handle? The rated operating range runs from -20 degrees C to +40 degrees C. The IP66 housing keeps dust and driving rain out.
