Display II LED Ceiling Panel 300×1200 mm 45W

Display II LED Ceiling Panel 300×1200 mm 45W

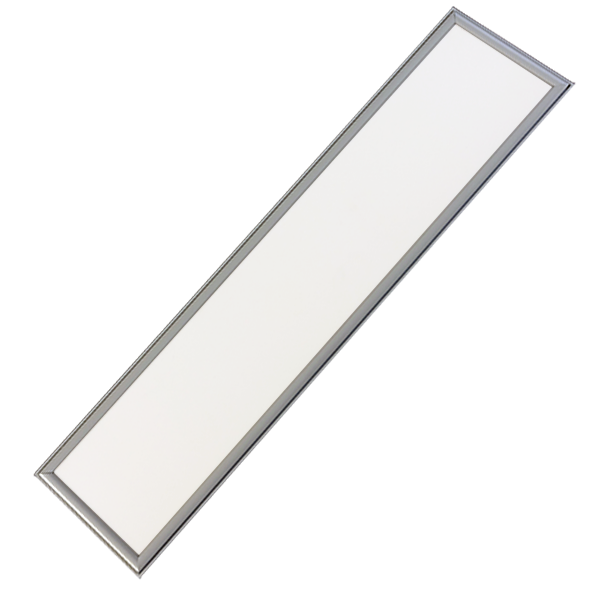

The Display II LED ceiling panel in 300×1200 mm delivers 45W along the length of a room instead of across a square module. Specify it for corridors, classrooms, wards and production aisles that still run long fluorescent battens. At 16 mm deep, the body drops into a grid ceiling or sits flush in plasterboard.

Benefits

• Light that follows the room: the 300 x 1200 mm format tracks corridors and rows of desks.
• Approx. 240 lux at desk level: measured 80 cm above the floor, mounted at 2.4 m with cool white LEDs.
• Minimum 100 lm/W: the efficacy figure holds for neutral white and cool white.
• Only 16 mm deep: it suits grid ceilings, plasterboard cut-outs and surface mounting.
• Durable materials: electrostatically painted aluminium body with a UV-resistant polycarbonate diffuser.
• External driver: you replace the power supply without dismounting the luminaire.

Technical specifications

• Body material: electrostatically painted aluminium
• Diffuser: clear polycarbonate, UV resistant
• Body colour: standard white
• Total power: 45W
• Luminous efficacy: minimum 100 lm/W (neutral white and cool white)
• Illuminance: approx. 240 lux at 80 cm above the floor, mounted at 2.4 m, cool white
• Colour rendering index: 80 for neutral and warm white, 70 for cool white
• Supply: 230V AC, 50/60Hz
• Driver: external, outside the body
• Electrical insulation class: I
• Ingress protection: IP40
• Operating temperature: -20 degrees C to +40 degrees C
• Dimensions: 300 x 1200 x 16 mm
• Mounting: grid ceiling, recessed in plasterboard or surface mounted (clips on request)
• Markings: CE, F-Mark; indoor use

Applications and installation

This Display II LED ceiling panel serves commercial, residential, office, school, hospital and industrial interiors, including dry production halls. Lay it into a 300 x 1200 mm grid module, cut it into plasterboard, or fix it to the soffit with the surface clips supplied on request. The F-Mark allows direct mounting on normally flammable surfaces. Place the external driver above the false ceiling or beside the body. IP40 restricts it to dry, conditioned interiors. The luminaire is designed and built in Europe.

Frequently asked questions

How does it differ from the 600 x 600 mm model? Power and illuminance are identical, 45W and approx. 240 lux. Only the shape changes: 300 x 1200 mm spreads light lengthways, which suits corridors and long halls.

Can I surface mount it on a concrete soffit? Yes. Order the recessing clips, fix the body to the soffit and mount the external driver next to it.

Is it suitable for production halls? Yes, for dry production areas. Protection is IP40 and the operating range is -20 degrees C to +40 degrees C.
