Invisilux T Adjustable Recessed LED Spotlight 10W CRI97

Invisilux T Adjustable Recessed LED Spotlight 10W CRI97

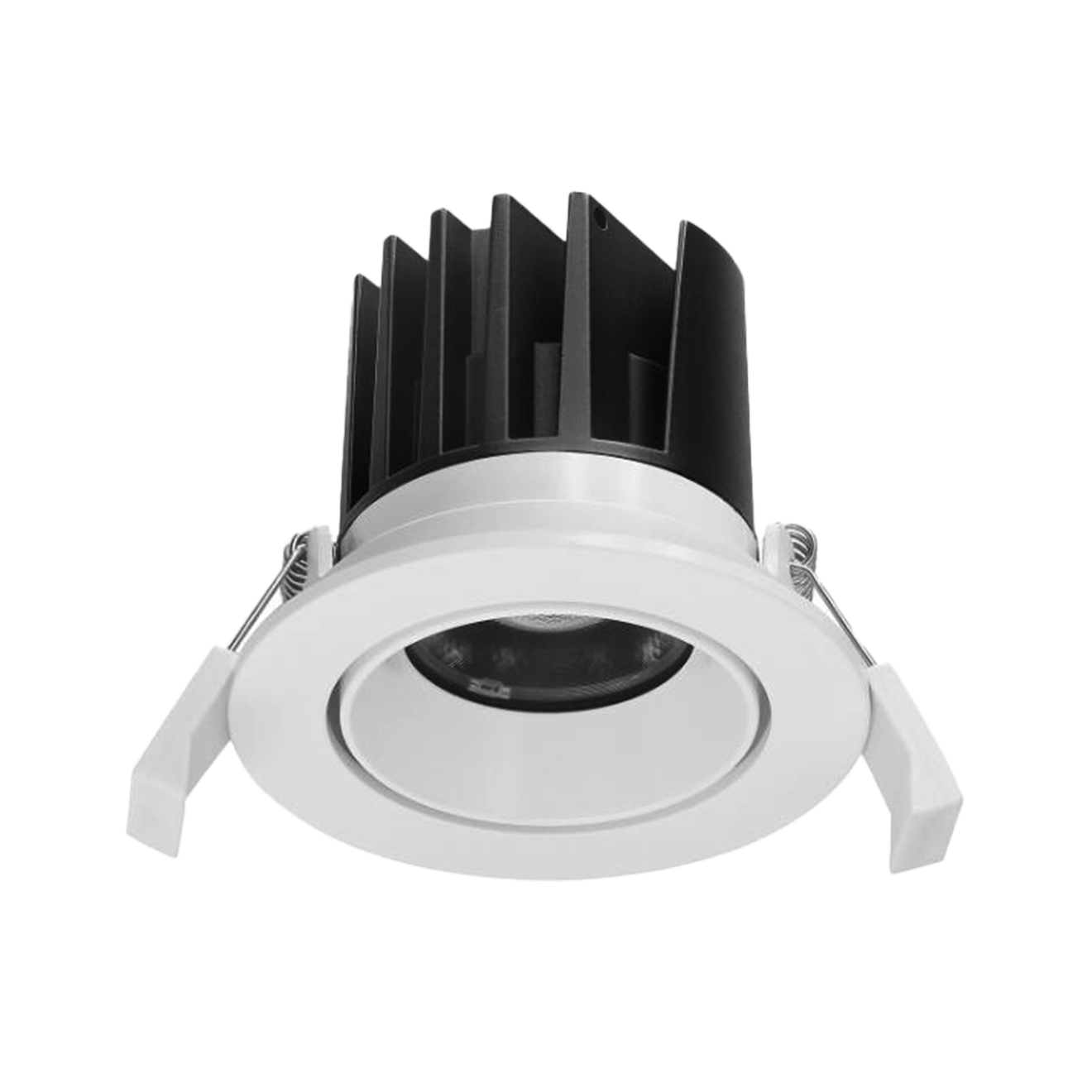

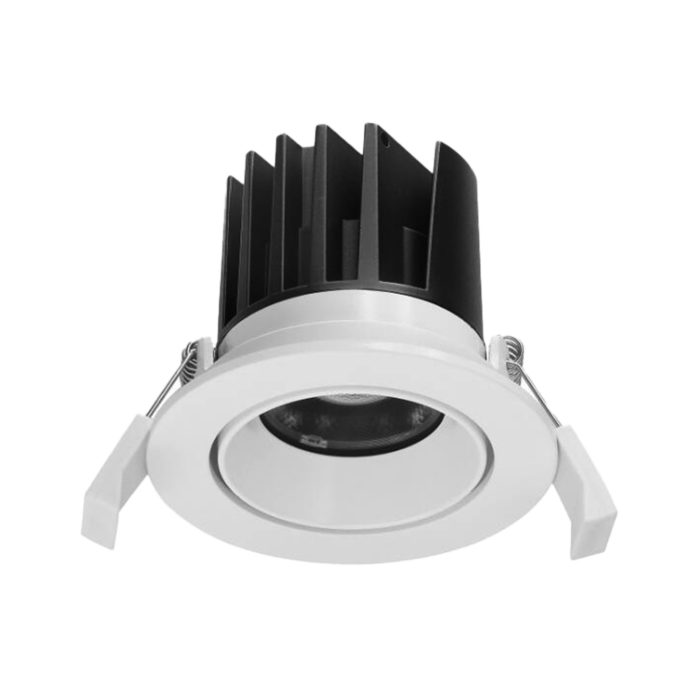

This Invisilux T recessed LED spotlight is an adjustable 10 W fitting with a colour rendering index of 97, the highest in the family. It is aimed at galleries, fashion and jewellery stores, restaurants and finishes showrooms, where a shifted hue costs a sale. You choose between three beam angles: 15, 24 or 60 degrees.

Benefits

• Colour close to daylight: CRI 97 renders reds, skin tones and textiles without visible drift, the benchmark for premium retail and art.
• Three beams in one product family: the narrow 15 degree optic for a single object, the medium 24 degree for a group, the wide 60 degree for a zone.
• Adjustable after installation: re-aim the head every time the display or the layout changes.
• IP44 protection: the body tolerates occasional splashes, so it can sit above a bar or near an open kitchen.
• Power factor above 0.9: the circuit stays clean, with little reactive loss across a large installation.
• Up to 97 lm/W: the medium optic returns 1027 lm from 10 W.

Technical specifications

• Mounting type: recessed in ceiling
• Material: aluminium
• Colour: white RAL9010
• Power: 10 W
• Luminous flux: 929 – 1027 lm, depending on the optic
• Luminous efficacy: 88 – 97 lm/W
• Optical efficiency: 84.5 % – 89.1 %
• Available optics: narrow 15 degrees, medium 24 degrees, wide 60 degrees
• Colour temperature (CCT): 3000 K or 4000 K
• Colour rendering index: CRI 97
• Power factor: above 0.9
• Control: on/off
• Supply voltage: 220 – 240 V AC
• Ingress protection: IP44
• Electrical class: III
• Driver included: yes, mounted outside the housing
• Adjustable: yes
• Dimensions: 90 x 69 mm

Applications and installation

Invisilux T fits plasterboard ceilings in art galleries, museums, boutiques, jewellery and cosmetics stores, restaurants, furniture and finishes showrooms. At 90 mm across and only 69 mm deep, the body suits shallow ceiling voids; the supplied driver mounts separately nearby. Power reaches the fitting in class III through that driver, with on/off switching. The fitting comes from European design and manufacture.

Frequently asked questions

What changes against a CRI 80 spotlight? At CRI 97 saturated colours, especially reds and skin tones, look as they do under natural light. At CRI 80 those hues lose intensity.

Which optic should I use on a painting? For a small work or a jewellery piece, 15 degrees concentrates the light. For a large canvas or a display wall, 24 or 60 degrees covers more.

Is the driver inside the body? No. The driver is supplied but mounts outside the housing, above the ceiling.
