Galaxy LED Billboard Lighting System 36 LEDs 90W

Galaxy LED Billboard Lighting System 36 LEDs 90W

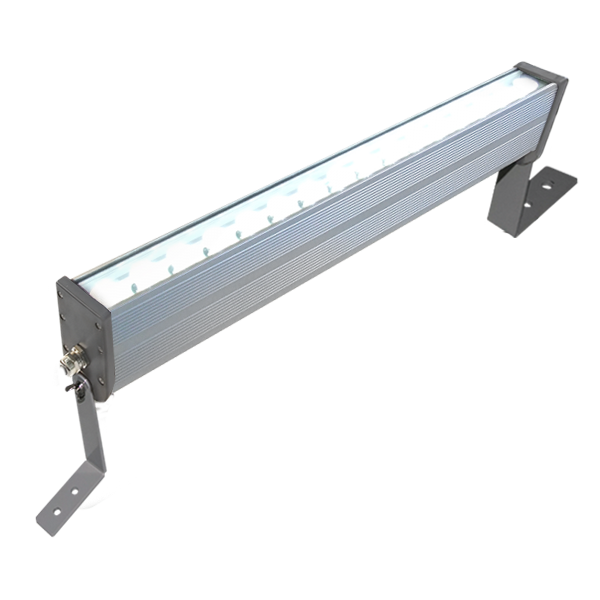

The Galaxy LED billboard lighting system consists of three linear floodlights with 12 LEDs each, for outdoor media companies and owners of billboards, totems and commercial facades. The 0.9 m assembly replaces fluorescent tube lighting. It ends the routine of tubes that dim in cold weather and need frequent replacement.

Benefits

• Direct replacement for fluorescent tubes: 36 OSRAM LEDs of 2.5 W, each around 300 lm.
• Chain mounting: the three floodlights link with male-female connectors and run from a single external power unit.
• Adjustable aiming: each floodlight rotates so the light covers the display evenly.
• Weather and vandal resistant: IK10 against impact and minimum IP66 against water and dust.
• Neutral light for true colours: 4000 K neutral white with medium focus suits printed posters.
• Durable housing: powder-coated aluminium, grey as standard or another colour on request.

Technical specifications

• Composition: 3 linear floodlights with 12 LEDs each, linked by male-female connectors
• Housing material: powder-coated aluminium
• Housing colour: grey as standard, other colours on customer request
• Diffuser: clear 3 mm polycarbonate, UV protected
• Mounting bracket: powder-coated aluminium, rotating
• Light source: OSRAM LEDs
• Number of LEDs: 36
• Power per LED: 2.5 W
• Total power: 90 W
• LED colour: neutral white 4000 K
• Beam focus: medium
• Luminous output: approximately 300 lm/LED
• CRI: 70
• Supply: 230 V AC, 50/60 Hz, shared external power unit for the 3 floodlights
• Supply cable length: 2 m
• Insulation class: I
• Ingress protection: minimum IP66
• Impact resistance: IK10
• Operating temperature: -20 degrees C to +40 degrees C
• Dimensions: 900 x 54 x 115 mm
• Weight: 3.6 kg
• Compliance: CE marking, RoHS, F mark for mounting on normally flammable surfaces, outdoor use

Applications and installation

The system is dedicated to billboard lighting. Mount it on the display arms, above or below the printed surface, and rotate each floodlight towards the poster. The shared external power unit feeds the group of three bodies and belongs in a sealed enclosure. For longer displays, order several systems and align them end to end. Minimum IP66 keeps blown dust and rain out of the optics on exposed roadside structures.

Frequently asked questions

How long is the system? About 0.9 m with the three floodlights linked, measuring 900 x 54 x 115 mm.

How many systems does a 6 m display need? That depends on the mounting distance and the illuminance you target. Send the display dimensions and you receive a layout proposal.

Does it resist impact? Yes. The bodies carry an IK10 impact rating in an aluminium housing.
