Arcadia A Adjustable Surface-Mounted LED Spotlight 16W

Arcadia A Adjustable Surface-Mounted LED Spotlight 16W

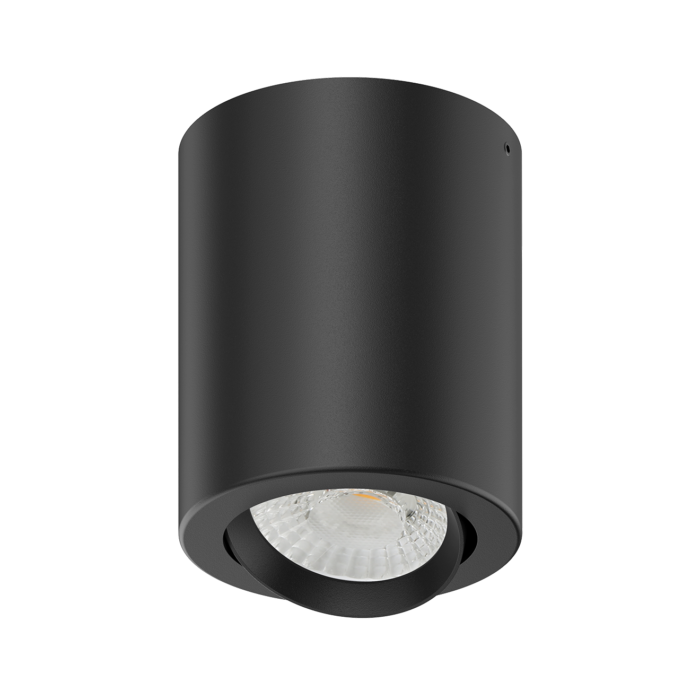

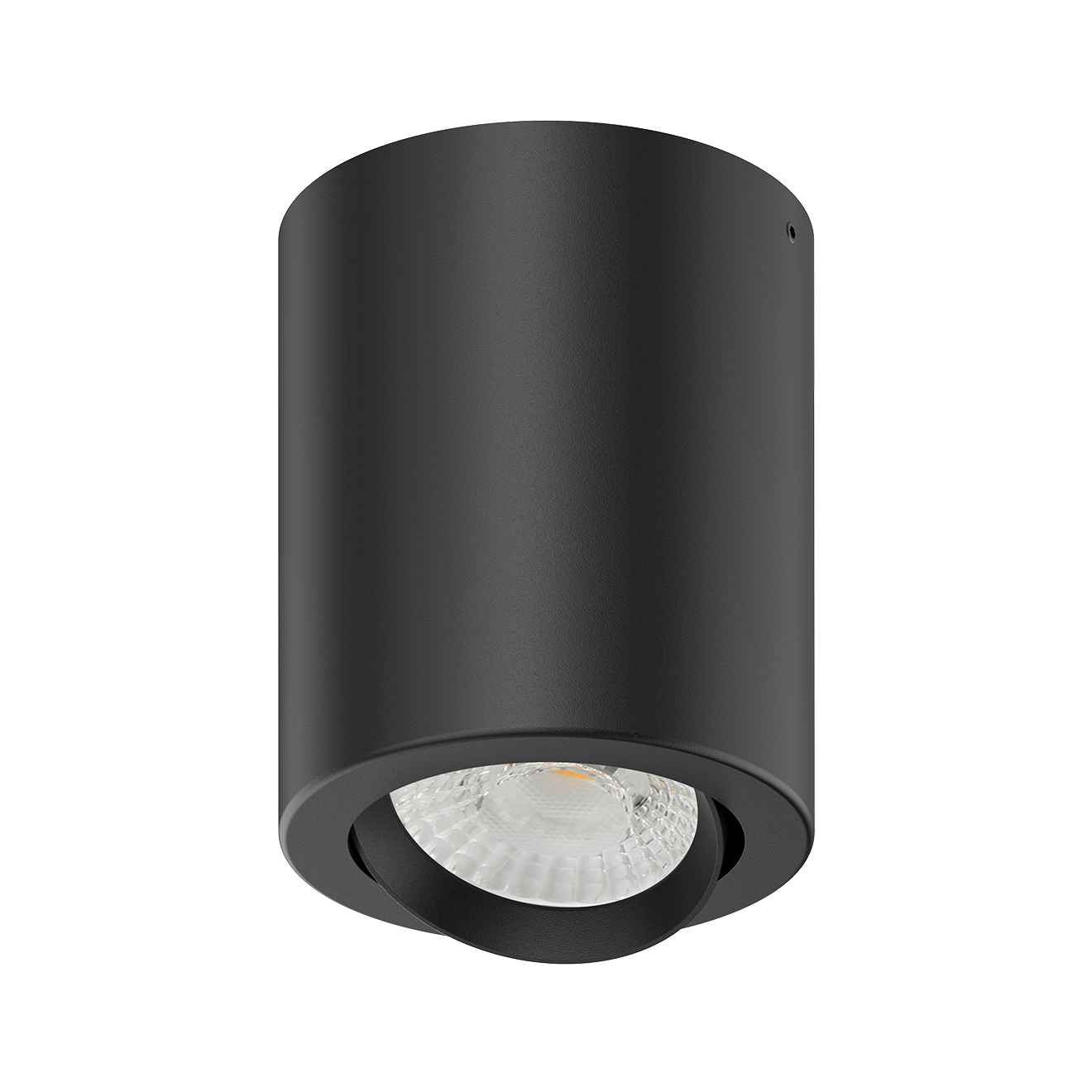

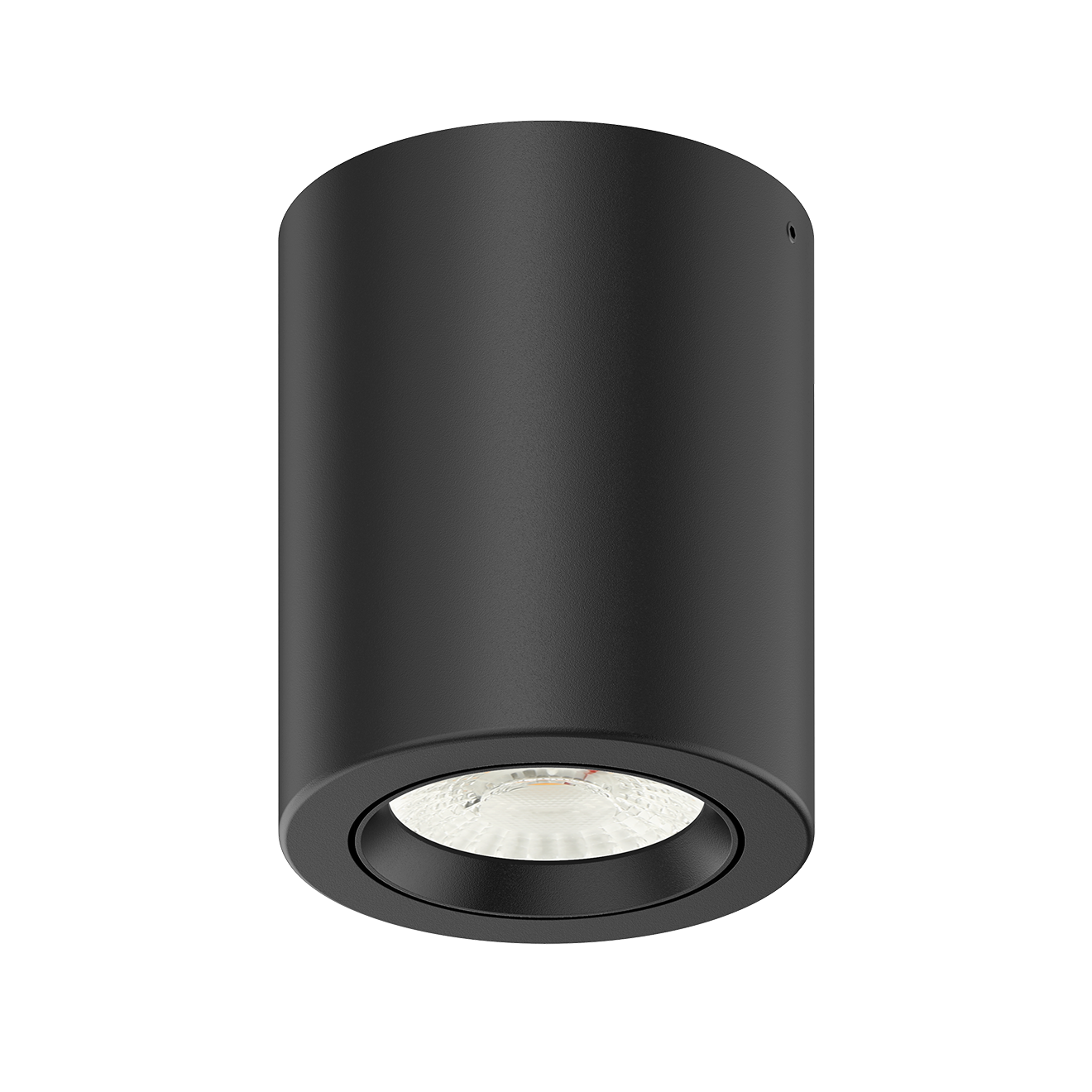

The Arcadia A adjustable LED spotlight is a 16 W fitting that mounts directly on the ceiling. You choose it when there is no suspended ceiling to recess into, yet you still need to aim light at merchandise, artwork or a work surface. Architects, interior designers and retailers specify it for accurate colour.

Benefits

• Light where you point it: the head tilts, so you set the beam on the exact object after the fitting is up.
• True colours: CRI 90 matters in showrooms, galleries and fashion retail.
• Three optics: narrow at 1712 lm, medium at 1617 lm or wide at 1471 lm.
• No plenum required: the driver is inside the body and the unit wires to 220-240 V AC.
• Efficient for an accent fitting: up to 107 lm/W from 16 W.
• Aluminium housing: good heat dissipation and a clean black finish.

Technical specifications of the Arcadia A LED spotlight

• Mounting type: surface-mounted on the ceiling, adjustable
• Material: aluminium
• Colour: black
• Power: 16 W
• Luminous flux: 1471-1712 lm
• Luminous efficacy: 91.9-107 lm/W
• Optical efficiency: 88 %
• Available optics: narrow, medium, wide
• Colour temperature: 3000 K or 4000 K
• CRI: 90
• Control: on/off
• Supply: 220-240 V AC, driver included in the housing
• Protection class: I
• Ingress protection: IP20
• Dimensions: 115 x 122 mm
• Adjustable: yes

Applications and installation

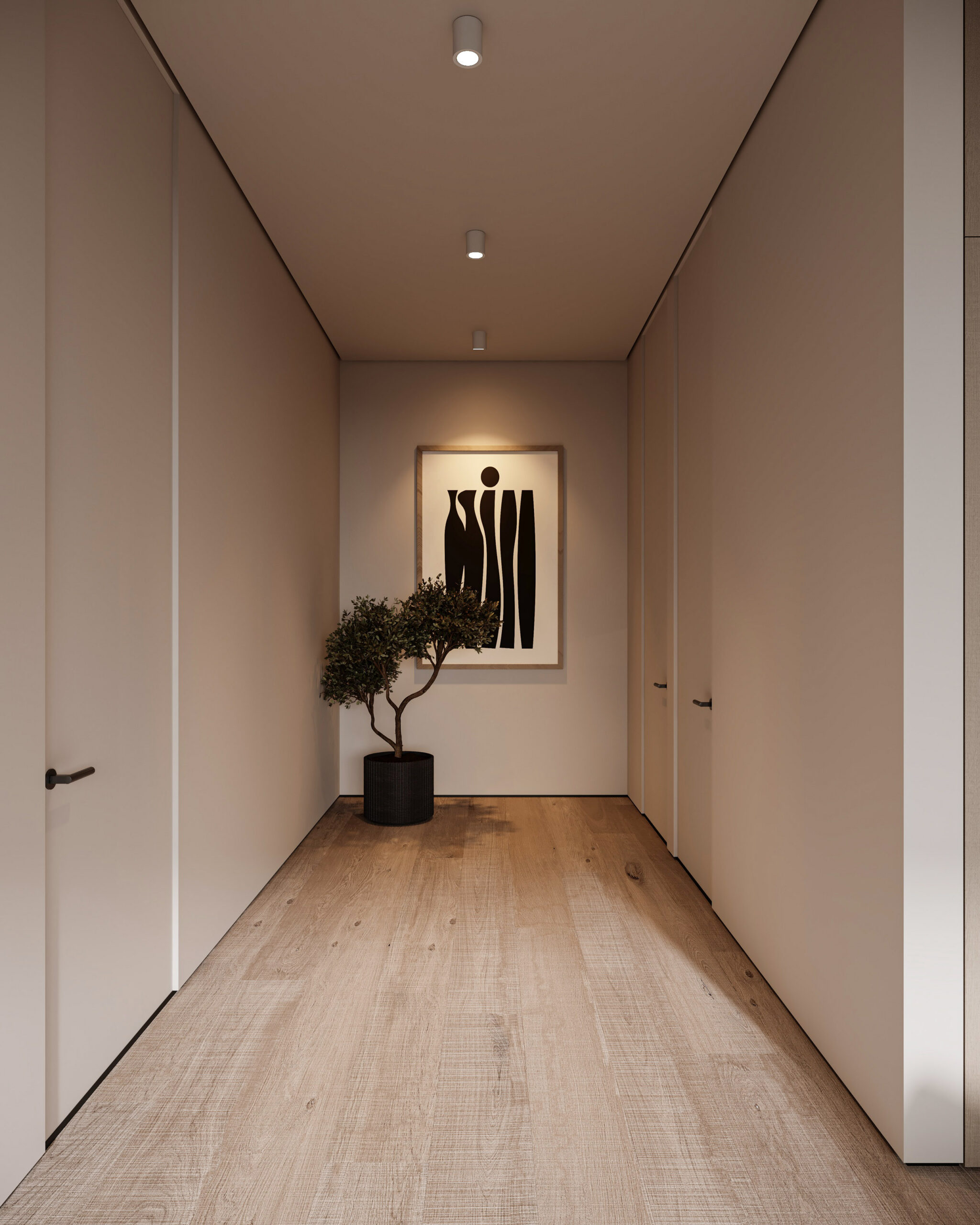

Arcadia A fixes to concrete, plasterboard or timber ceilings in dry interiors, since it is rated IP20. Use it for accent lighting in shops, car showrooms, art galleries, hotel receptions and offices. The narrow optic picks out a single object from a distance, while the wide optic covers whole shelving bays or a wall. Run the fittings on a line and aim each one separately. The luminaire is designed and manufactured in Europe.

Frequently asked questions

Can I use Arcadia A in a bathroom or on a terrace? No. IP20 limits it to dry interiors. Use the IP54 Arcadia D in damp areas.

What separates the two colour temperatures? 3000 K gives warm light for hotels and homes. 4000 K is neutral and preferred in retail and offices.

Do I need a separate driver? No. The power supply is built into the housing.
