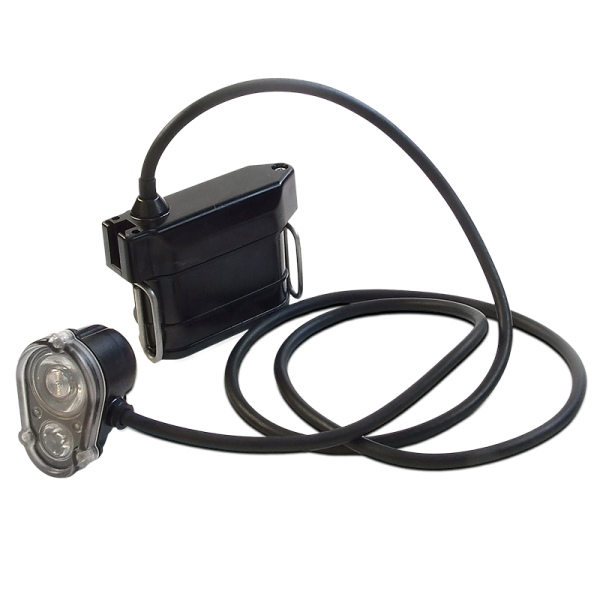

ELM 04 SD ATEX Lamp with 2 LEDs for Coal Mines

ELM 04 SD ATEX Lamp with 2 LEDs for Coal Mines

The ELM 04 SD ATEX lamp is an Ex cap lamp for mines with potentially explosive working atmospheres in group 1, above all coal mines. Compared with the ELM 01 SD, it uses two high-power LEDs with different beam angles. Miners get one concentrated beam for distance and a wider one for the work area.

Benefits

• Two complementary beams: a 1W LED with a 6 degrees lens and a high-power LED with a 15 degrees lens.
• At least 1500 lx at 1 m: enough light for face work.
• Group M2 or M1: below 2% methane as standard, above 2% with additional protection in the battery.
• Battery capacity to match the shift: NiMH at 4.5, 7 or 9Ah.
• Headlamp charging: in a multi-station rack or with the individual charger.
• Polycarbonate housing with Allen screw closure: sealed cells, with no electrolyte leakage under normal conditions.

Technical specifications

• Housing material: black polycarbonate
• Intended use: mines with potentially explosive atmospheres, group 1, above all coal mines
• Group of use: M2 (methane below 2%); M1 with additional protection
• Light source: 2 high-power OSRAM LEDs
• Beam focus: 1 LED of 1W with a 6 degrees lens, 1 high-power LED with a 15 degrees lens
• Minimum illuminance at 1 m: 1500 lx
• Battery type: NiMH (or NiCd 4.5Ah)
• Battery capacity: 4.5Ah | 7Ah | 9Ah
• Nominal voltage: 3.6V
• Output voltage: 3.75V
• Current per LED: max. 300 mA
• Charging method: through the headlamp, in a rack or with an individual charger
• Operating temperature: -5 degrees C to +40 degrees C
• Dimensions: 90 x 130 mm
• Weight: 0.9 kg
• Compliance: CE, ATEX

Applications and installation

Wear the ELM 04 SD ATEX lamp with the battery fixed to the belt and the headlamp on the helmet, the two linked by cable. It works with the individual headlamp charger and with the 10, 50 or 100-station racks, so you can scale a lamp room to your crew size. As an option, it takes a location transmitter and becomes the ELM 04 PSD version. Keep the lamp within its rated -5 degrees C to +40 degrees C window. Design and production take place in Europe.

Frequently asked questions

Why two LEDs? The 6 degrees lens gives a narrow beam for distance, while the 15 degrees lens covers the nearby work area.

Can I use it where methane exceeds 2%? Yes, with the additional protection in the battery, which places it in group M1.

Which rack fits it? The headlamp charging racks with 10, 50 or 100 stations, and the individual headlamp charger.
