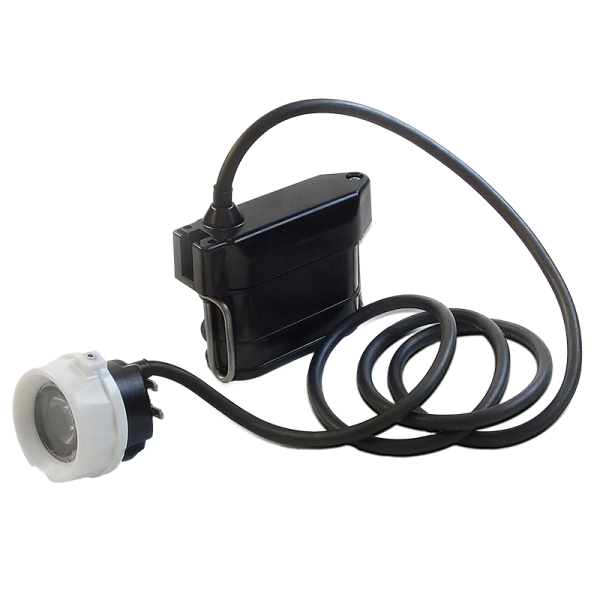

ELM 01 PSD ATEX Lamp with Location Transmitter

The ELM 01 PSD ATEX lamp adds a location transmitter to the ELM 01 SD mining lamp, fitted in the battery cover and cast in resin. Rescue teams can then detect the position of miners through rock or through a coal seam 25 m thick. It is intended for underground workings with a potentially explosive atmosphere.

Benefits

Location after an incident: the transmitter allows detection through rock or coal up to 25 m thick.
Transmitter autonomy of at least 168 hours: a full week of continuous emission.
8 working channels in the 4100 – 5850 Hz band, so crews are identified separately.
Operating range up to 50 m with a location distance of 25 m.
Protected transmitter: cast in resin in the battery cover, shielded from moisture and shock.
The same ELM 01 SD lamp: black polycarbonate housing rated IP54.

Technical specifications

Housing material: black polycarbonate
Base lamp: ELM 01 SD mining lamp
Location transmitter: in the battery cover, cast in resin
Transmitter autonomy: at least 168 hours
Transmission frequency: 4100 – 5850 Hz
Number of channels: 8
Operating range: up to 50 m
Location distance: 25 m
Detection through rock / coal: up to 25 m thickness
Ingress protection: IP54
Weight: 0.9 kg
Compliance: CE, ATEX

Applications and installation

Use the ELM 01 PSD ATEX lamp in mines and other potentially explosive environments, as an individual cap lamp, wherever underground personnel location is required. Charging runs through the headlamp, either in the 10, 50 or 100-station racks or with the individual headlamp charger. Plan the channel allocation together with your rescue service, so each crew is identified on its own channel. Store and charge the lamps in the surface lamp room between shifts. The lamp is designed and built in Europe.

Frequently asked questions

What does the PSD version add over the ELM 01 SD? The location transmitter, an optional device cast into the battery cover, with autonomy of at least 168 hours.

From what distance can a miner be detected? The operating range is up to 50 m and the location distance is 25 m, even through 25 m of rock or coal.

Can several transmitters run at the same time? Yes. The transmitter works on 8 channels, which lets you tell crews apart.
