ELM 04 PSD ATEX Lamp with 2 LEDs and Location Transmitter

ELM 04 PSD ATEX Lamp with 2 LEDs and Location Transmitter

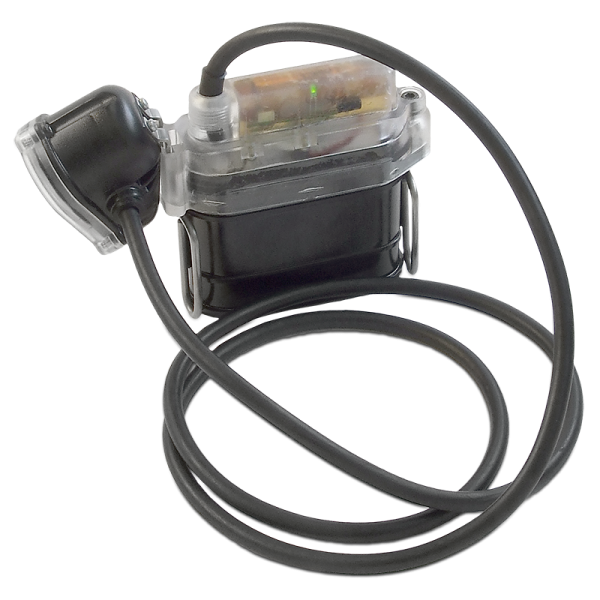

The ELM 04 PSD ATEX lamp combines the two-LED ELM 04 SD mining lamp with a location transmitter cast in resin inside the battery cover. It is intended for coal mines and other workings with a potentially explosive atmosphere, where rescue teams must fix the position of miners through rock or coal.

Benefits

• Position through solid ground: a miner can be located through rock or a coal seam up to 25 m thick.
• At least 168 hours of continuous emission: enough for extended rescue operations.
• 8 channels between 4100 and 5850 Hz: you separate crews or sectors on different channels.
• Operating range up to 50 m with a location distance of 25 m.
• Same lighting as the ELM 04 SD: two high-power LEDs with different beam angles.
• Protected transmitter: cast in resin inside the battery cover, in an IP54 housing.

Technical specifications

• Housing material: black polycarbonate
• Base lamp: ELM 04 SD mining lamp with 2 LEDs
• Location transmitter: in the battery cover, cast in resin
• Transmitter autonomy: at least 168 hours
• Transmission frequency: 4100 – 5850 Hz
• Number of channels: 8
• Operating range: up to 50 m
• Location distance: 25 m
• Detection through rock / coal: up to 25 m thickness
• Ingress protection: IP54
• Weight: 1.0 kg
• Compliance: CE, ATEX

Applications and installation

Wear the ELM 04 PSD ATEX lamp as an individual cap lamp in potentially explosive atmospheres, with the battery on the belt. Charging runs through the headlamp, either in the 10, 50 or 100-station racks or with the individual headlamp charger. The transmitter is an option fitted to order, so specify it when you size your lamp fleet. Assign channels to crews before the shift, so the receiving team can tell sectors apart during a search. The lamp is designed and manufactured in Europe.

Frequently asked questions

Does the lighting differ from the ELM 04 SD? No. The lighting section is identical, with two high-power LEDs; the difference is the location transmitter.

How long does the transmitter run without recharging? At least 168 hours of continuous operation.

Through what thickness can the lamp be detected? Through rock or a coal seam up to 25 m, within the 50 m operating range.
