Eclipsar Suspended LED Luminaire 15W Indoor

Eclipsar Suspended LED Luminaire 15W Indoor

The Eclipsar suspended LED luminaire is a cylindrical pendant of 63 x 300 mm, drawing 15 W and delivering up to 1,360 lm at CRI 90. It suits restaurants, bars, offices and homes that light tables, counters and reception desks from above. Installation stays simple because the power supply sits inside the body.

Benefits

• Integral power supply: no separate driver and no extra junction boxes above the ceiling.
• Two optics: narrow gives 1,252 lm for a tight pool on the table, wide gives 1,360 lm across a larger area.
• CRI 90: food, materials and skin tones are rendered accurately under the pendant.
• Efficacy up to 92 lm/W: useful output from a 15 W load per pendant.
• Slim cylinder: a 63 mm diameter aluminium body suits rows above long tables.
• Indoor rated: insulation class I with IP20 protection for conditioned interiors.

Technical specifications

• Mounting: suspended
• Housing material: aluminium
• Finish: black (RAL9010)
• Power: 15 W
• Luminous flux: 1,252 lm (narrow optic), 1,360 lm (wide optic)
• Luminous efficacy: 83-92 lm/W
• Optics: narrow, wide
• Colour temperature (CCT): 3000 K, 4000 K
• CRI: 90
• Control: on/off
• Ingress protection: IP20
• Insulation class: I
• Driver: included
• Adjustable: no
• Dimensions: 63 x 300 mm

Applications and installation

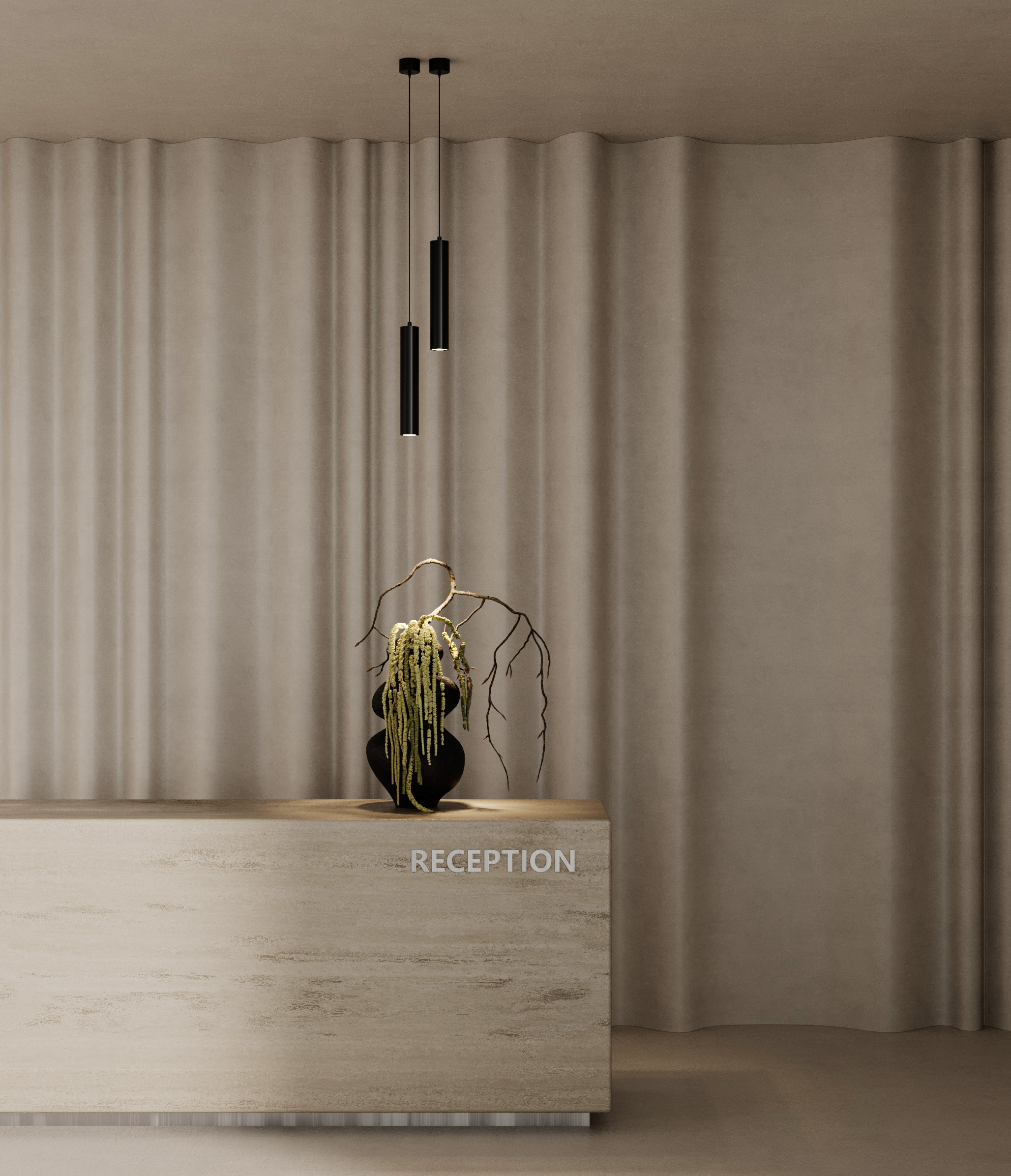

Hang the Eclipsar suspended LED luminaire above restaurant tables, bar counters, reception desks, kitchen islands and single workstations. The narrow optic draws a clear pool of light on the work surface, while the wide optic covers a whole table. The 63 mm diameter lets you install several pendants in a line at close centres without visual clutter. Set the drop height so the light source stays out of seated sightlines. Choose 3000 K for dining rooms and bars, and 4000 K where the pendant lights a reception desk or a work surface. The IP20 rating restricts installation to dry, conditioned interiors. Design and production take place in Europe.

Frequently asked questions

Which optic suits a restaurant table? The narrow optic for accent on the centre of the table, the wide optic for broad tables or full-surface lighting.

Is the power supply included? Yes. The supply is built into the body and the insulation class is I.

Is it dimmable? The available version is on/off, without dimming.
