Astraline G20 Slim Magnetic Track Linear LED Luminaire 20W

Astraline G20 Slim Magnetic Track Linear LED Luminaire 20W

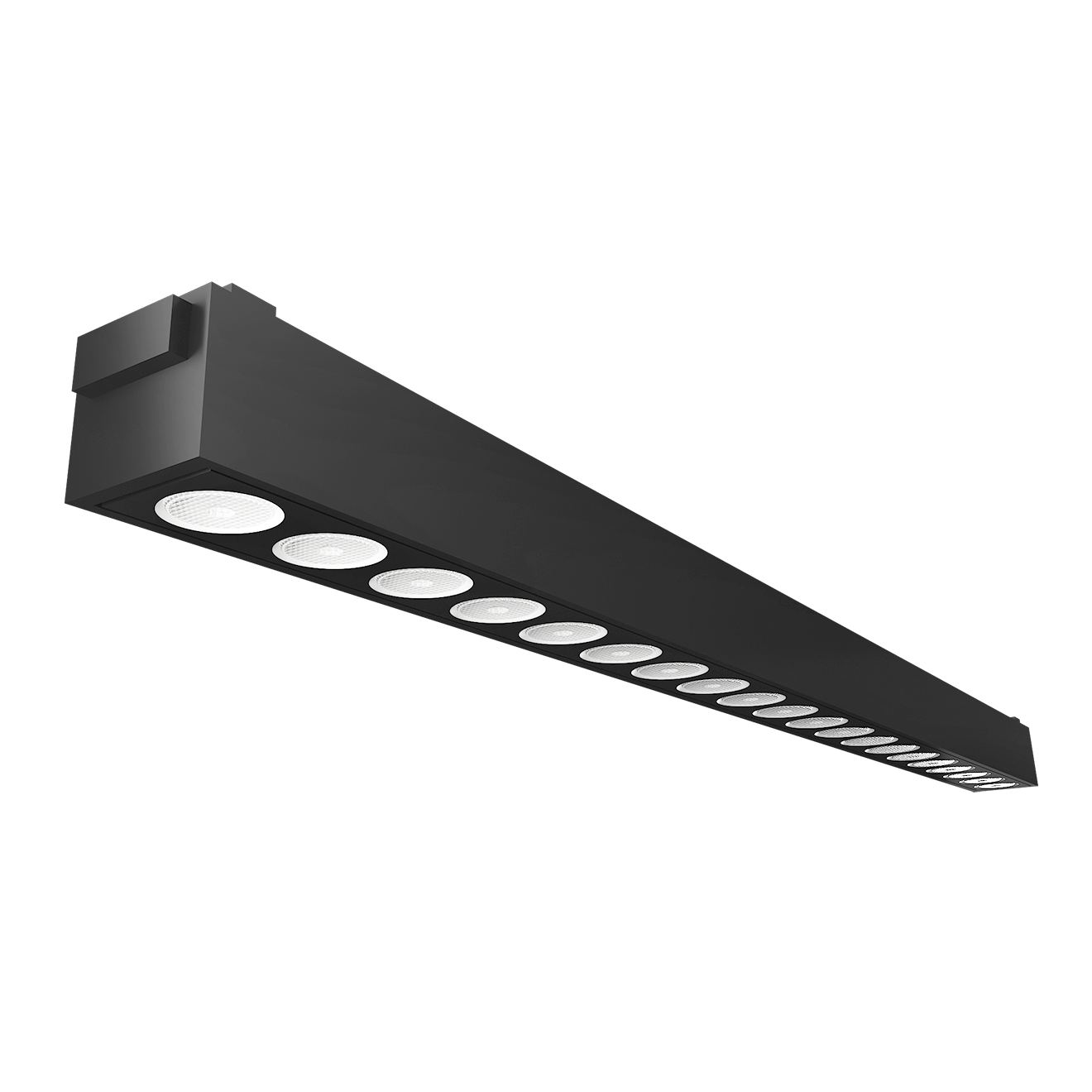

The Astraline G20 linear LED luminaire is a 445 mm module of 20 W and 1,399 lm, with a 30 degrees beam, made for slim magnetic track. Architects and designers choose it for kitchens, corridors, receptions and bedrooms where the track itself must stay barely visible in the ceiling or wall.

Benefits of the Astraline G20 linear LED luminaire

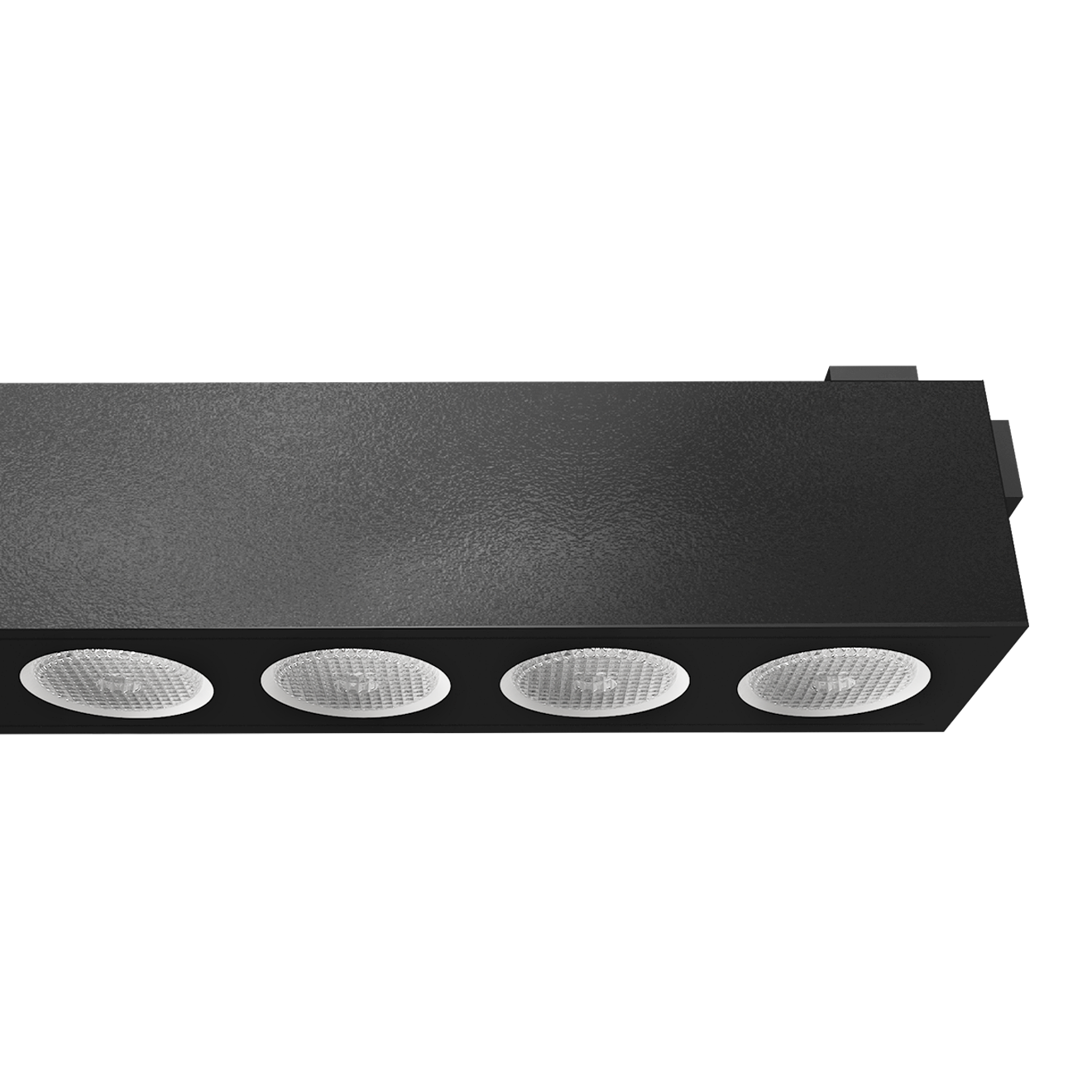

• Profile of just 24 x 26 mm: sized for slim magnetic track, so the module stays discreet in the ceiling line.
• 1,399 lm from 20 W: 70 lm/W of linear output for task work or circulation routes.
• 30 degrees beam: the light stays on the worktop, table or corridor instead of spilling onto walls.
• CRI 90: natural rendering of food, finishes and textiles under the module.
• Extra-low voltage: insulation class III with a 48 V DC supply through the track.
• Magnetic mounting: no tools, and you can slide the module along the track at any time.

Technical specifications

• Mounting: slim 48 V DC magnetic track
• Housing material: aluminium
• Finish: black (RAL9010)
• Power: 20 W
• Luminous flux: 1,399 lm
• Luminous efficacy: 70 lm/W
• Optic: medium, 30 degrees beam angle
• Colour temperature (CCT): 3000 K, 4000 K
• CRI: 90
• Control: on/off
• Supply voltage: 48 V DC
• Power supply: not included
• Ingress protection: IP20
• Insulation class: III
• Adjustable: no
• Accessory: slim 48 V DC magnetic track

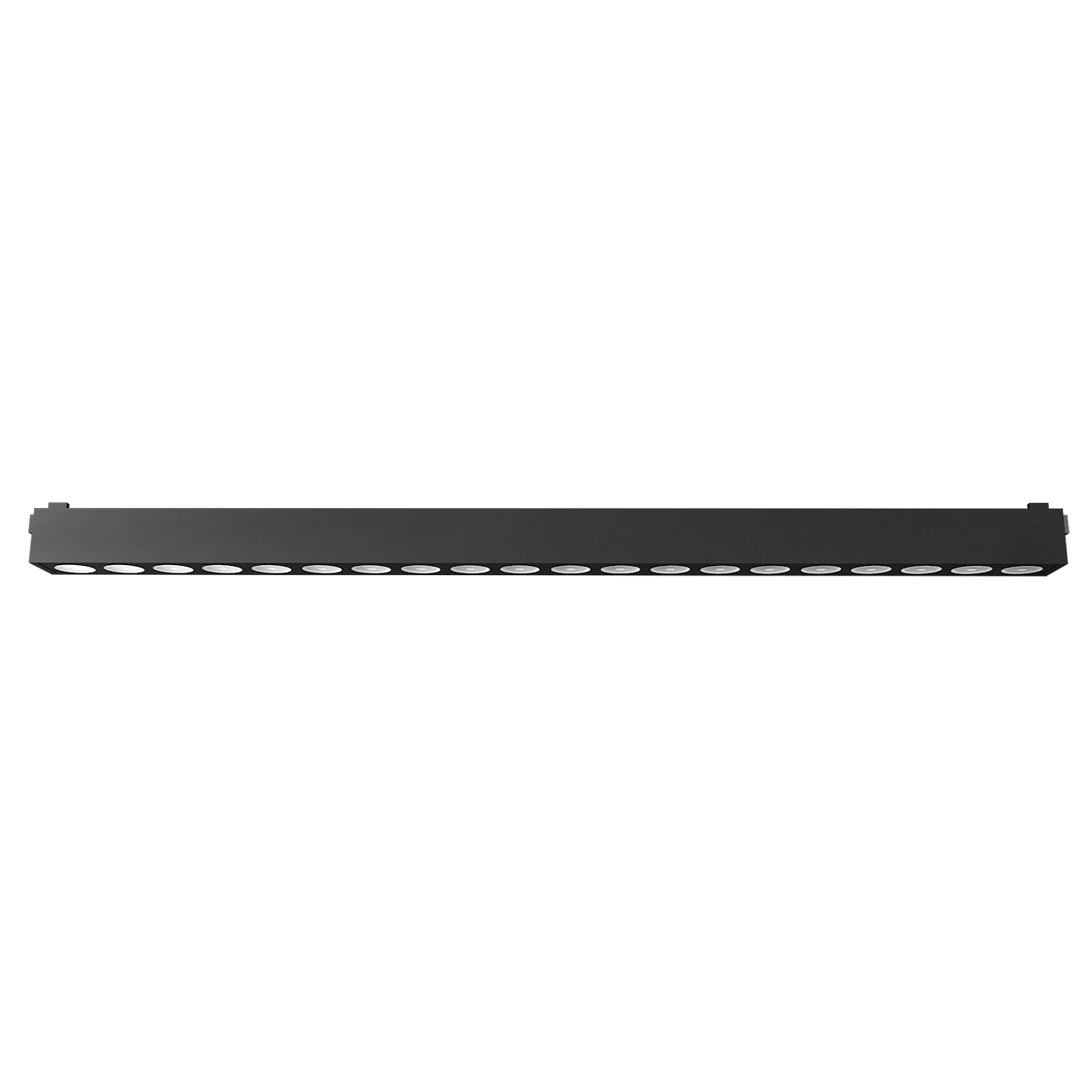

• Dimensions: 445 x 24 x 26 mm

Applications and installation

Run the Astraline G20 linear LED luminaire on slim magnetic track in kitchens above worktops, and in corridors, receptions, bedrooms and small retail units. Place several modules end to end for a continuous line of light. The module is designed for the slim 48 V DC magnetic track sold as an accessory, and needs a separate power supply sized to the number of modules on the run. Keep the installation indoors, because the rating is IP20. The system is designed and manufactured in Europe.

Frequently asked questions

Which track does it fit? The slim 48 V DC magnetic track, available as an accessory. The module is shaped for that narrow format.

Is the power supply included? No. The 48 V DC supply is chosen separately, based on the total load installed on the track.

Can it be aimed? No. The module has fixed emission with a 30 degrees beam and is positioned by sliding it along the track.
