Display II LED Ceiling Panel 600×600 mm 45W

Display II LED Ceiling Panel 600×600 mm 45W

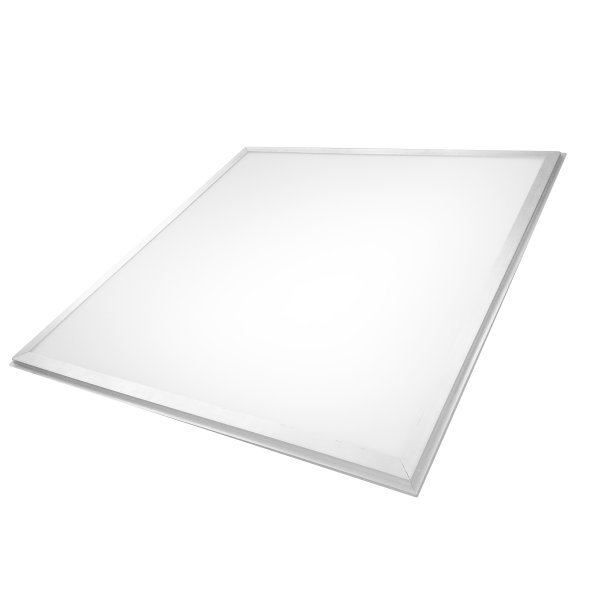

The Display II LED ceiling panel in 600×600 mm replaces the 4 x 18W fluorescent troffers still sitting in most grid ceilings. It is aimed at offices, schools, hospitals, retail floors and dry production areas. A 16 mm aluminium body ends both the high running load and the routine of swapping tubes one by one.

Benefits

• Direct 4x18W swap: the 600 x 600 mm format drops straight into the existing ceiling module.
• Stated light level: approx. 240 lux at desk height, 80 cm above the floor, mounted at 2.4 m with cool white LEDs.
• Minimum 100 lm/W: the figure applies to neutral white and to cool white.
• Three mounting methods: grid ceiling, plasterboard cut-out or surface with recessing clips on request.
• Slim profile: just 16 mm deep, in electrostatically painted white aluminium.
• Stable diffuser: clear polycarbonate that resists UV over its service life.

Technical specifications

• Body material: electrostatically painted aluminium
• Diffuser: clear polycarbonate, UV resistant
• Body colour: standard white
• Total power: 45W
• Luminous efficacy: minimum 100 lm/W (neutral white and cool white)
• Illuminance: approx. 240 lux at 80 cm above the floor, mounted at 2.4 m, cool white
• Colour rendering index: 80 for neutral and warm white, 70 for cool white
• Supply: 230V AC, 50/60Hz
• Driver: external, outside the body
• Electrical insulation class: I
• Ingress protection: IP40
• Operating temperature: -20 degrees C to +40 degrees C
• Dimensions: 600 x 600 x 16 mm
• Mounting: grid ceiling, recessed in plasterboard or surface mounted (clips on request)
• Markings: CE, F-Mark; indoor use

Applications and installation

Fit this Display II LED ceiling panel in commercial, residential, office, school, hospital and industrial interiors. Set it into the false ceiling tile, cut it into plasterboard, or fix it to the soffit with clips. The F-Mark allows mounting directly on normally flammable surfaces. Run the external driver above the ceiling void and keep an access tile for service. Rated IP40, the panel belongs in dry, conditioned rooms rather than wet areas. It is designed and manufactured in Europe.

Frequently asked questions

How many lux reach the desk? Around 240 lux at 80 cm above the floor, with the panel at 2.4 m and cool white LEDs fitted.

Can it go on a concrete soffit? Yes, surface mounted with the recessing clips supplied on request. Place the external driver above or beside the body.

Is it suitable for bathrooms? Protection is IP40, so it is intended for dry rooms: offices, classrooms, wards and shops.
