Oazis LED Wall Light for Bathrooms and Wet Areas 10-20W

Oazis LED Wall Light for Bathrooms and Wet Areas 10-20W

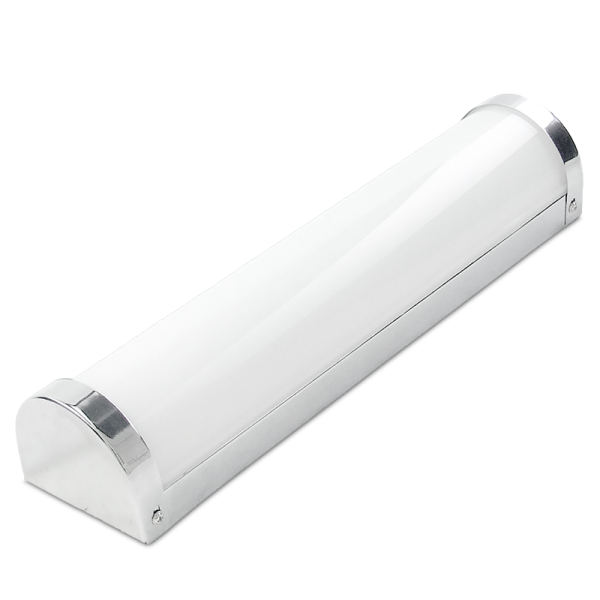

The Oazis LED wall light is a chromed metal fitting with a satin glass diffuser, offered at 10W and 20W. It is made for bathrooms, kitchens and other humid rooms in homes, hotels, offices, schools and hospitals. Its protected optical compartment answers the usual problem of fittings that degrade in steam.

Benefits

• Built for humidity: the optical compartment is protected and the chromed body holds up in bathrooms and kitchens.
• Two powers, two lengths: 10W at 250 mm or 20W at 400 mm, matched to the mirror or the wall.
• Efficient light: Samsung LEDs deliver minimum 100 lm/W in neutral white and cool white.
• No separate driver: the power supply is internal and accepts 90-230V AC directly.
• Diffused output: satin glass softens the beam and avoids harsh reflections in the mirror.
• Accurate colours: colour rendering index 80 for neutral and warm white.

Technical specifications

• Body material: chromed metal
• Diffuser: satin glass
• Body colour: standard grey
• Light source: Samsung LEDs
• Total power: 10W | 20W
• Luminous efficacy: minimum 100 lm/W (neutral white and cool white)
• Colour rendering index: 80 for neutral and warm white, 70 for cool white
• Supply: 230V AC, 50Hz; range 90-230V AC
• Driver: internal
• Electrical insulation class: I
• Ingress protection: IP42
• Operating temperature: -20 degrees C to +40 degrees C
• Dimensions: 400 x 90 x 70 mm (20W) or 250 x 90 x 70 mm (10W)
• Weight: 0.7 kg
• Markings: CE, F-Mark; indoor use

Applications and installation

Specify the Oazis LED wall light in commercial, residential, office, school and hospital projects, for bathroom lighting and general interior light. Mount it on the wall above a mirror or to one side of it. The F-Mark permits fixing directly on normally flammable surfaces. Protection is IP42, which covers the humidity of a bathroom or kitchen but not direct jets of water, so keep it clear of shower sprays. The internal driver accepts a wide 90-230V AC range, which simplifies wiring in refurbishment work. The fitting is designed and produced in Europe.

Frequently asked questions

Which version fits above a bathroom mirror? Use the 10W, 250 mm version over narrow mirrors. For wide mirrors or shared bathrooms, choose 20W at 400 mm.

Which light colours are available? Neutral white and warm white with colour rendering index 80, or cool white with index 70. Efficacy is minimum 100 lm/W for white.

Do I need a transformer? No. The driver is built in and accepts AC voltage between 90 and 230V.
