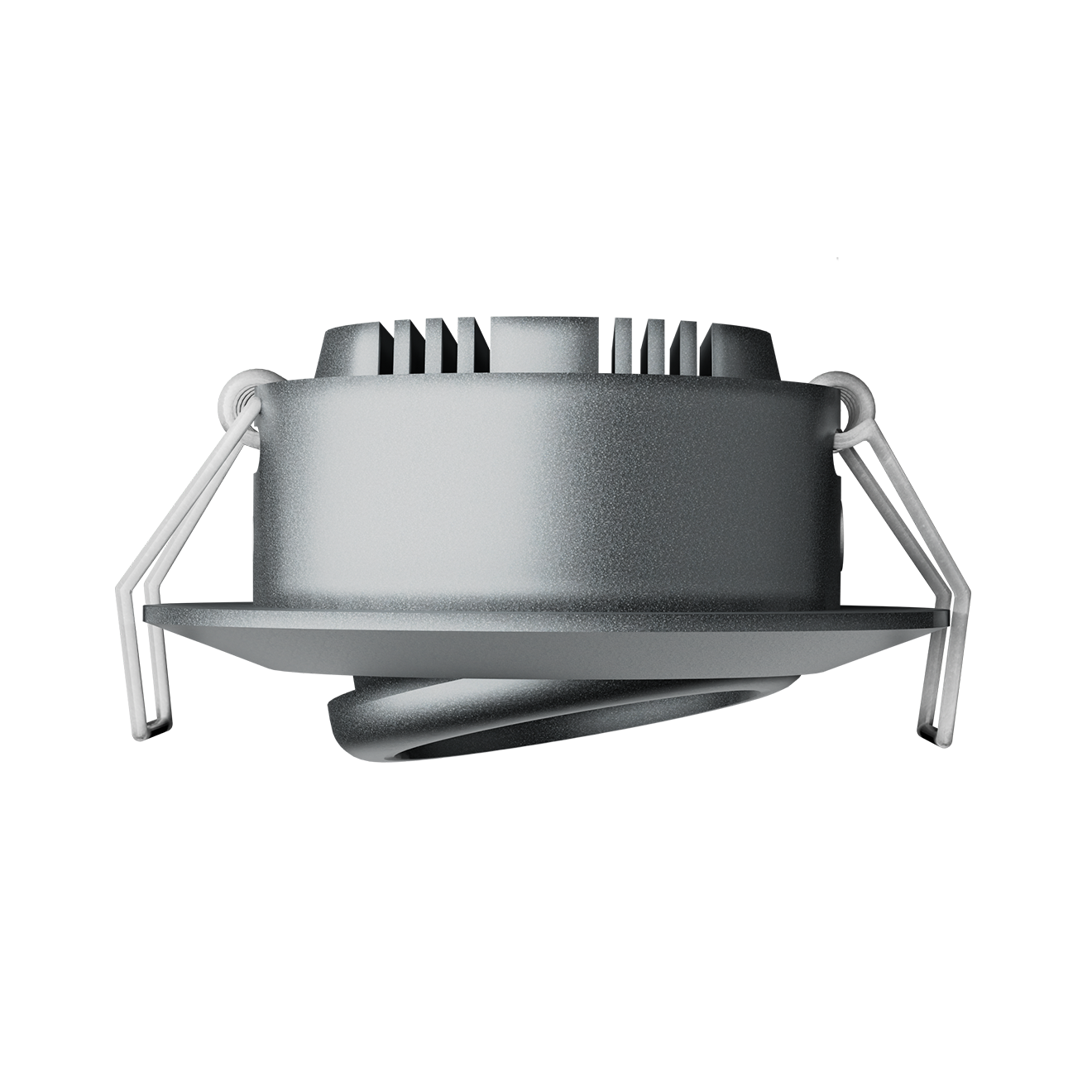

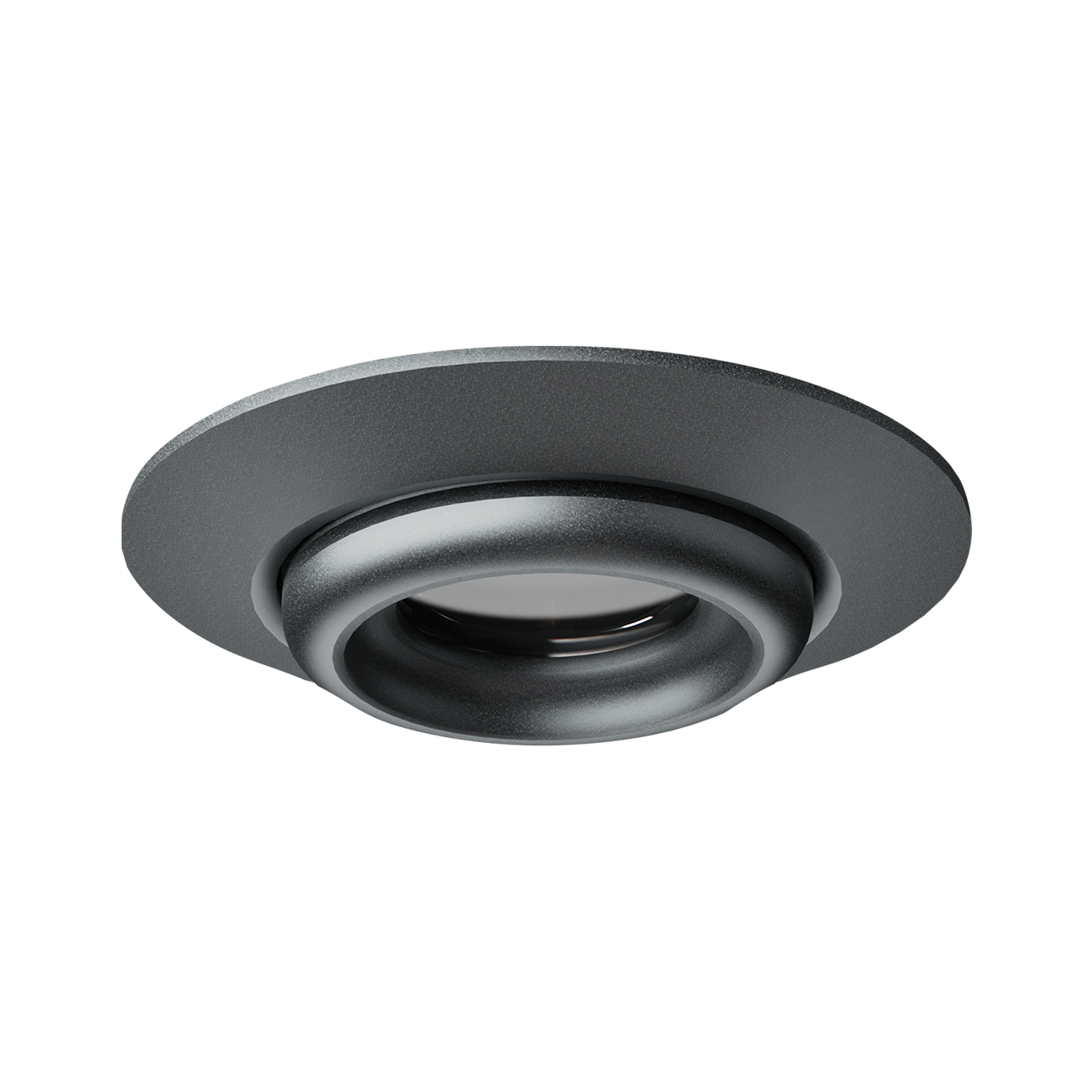

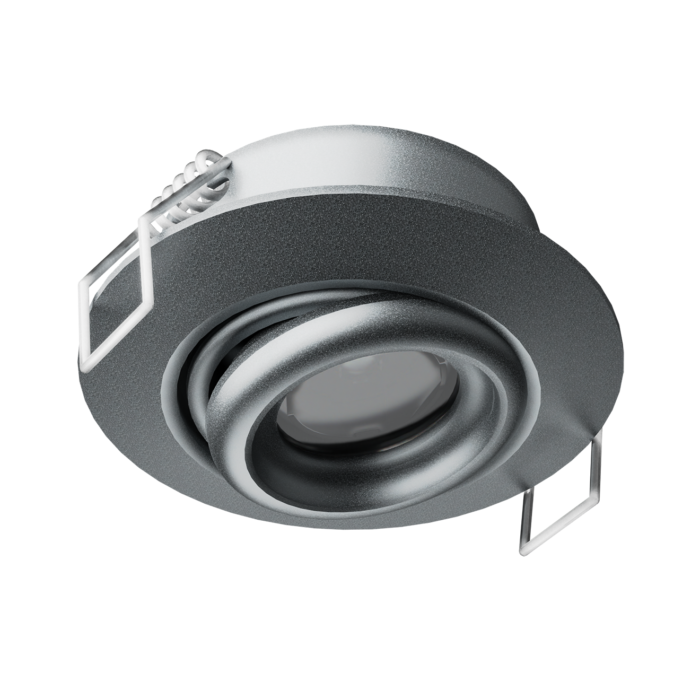

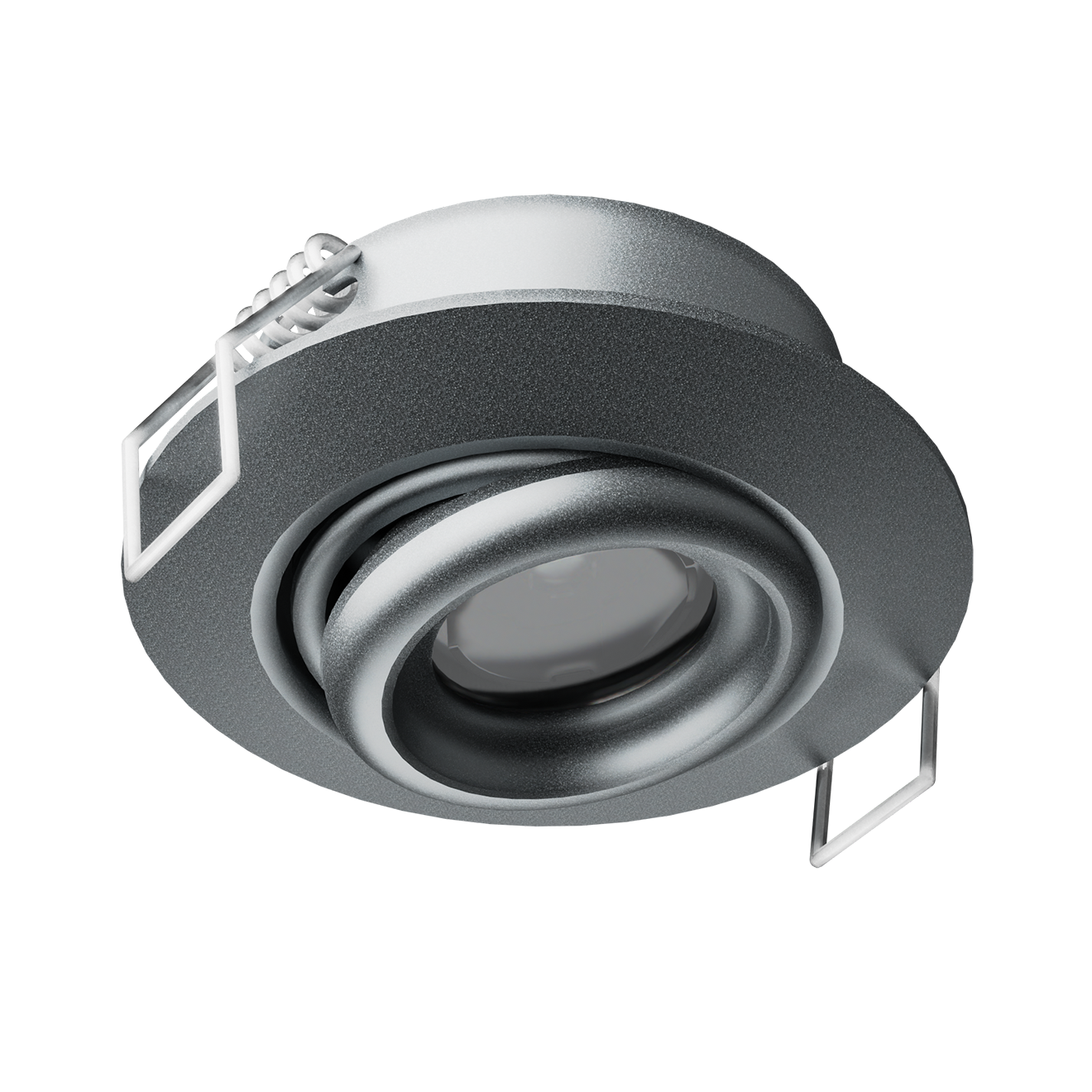

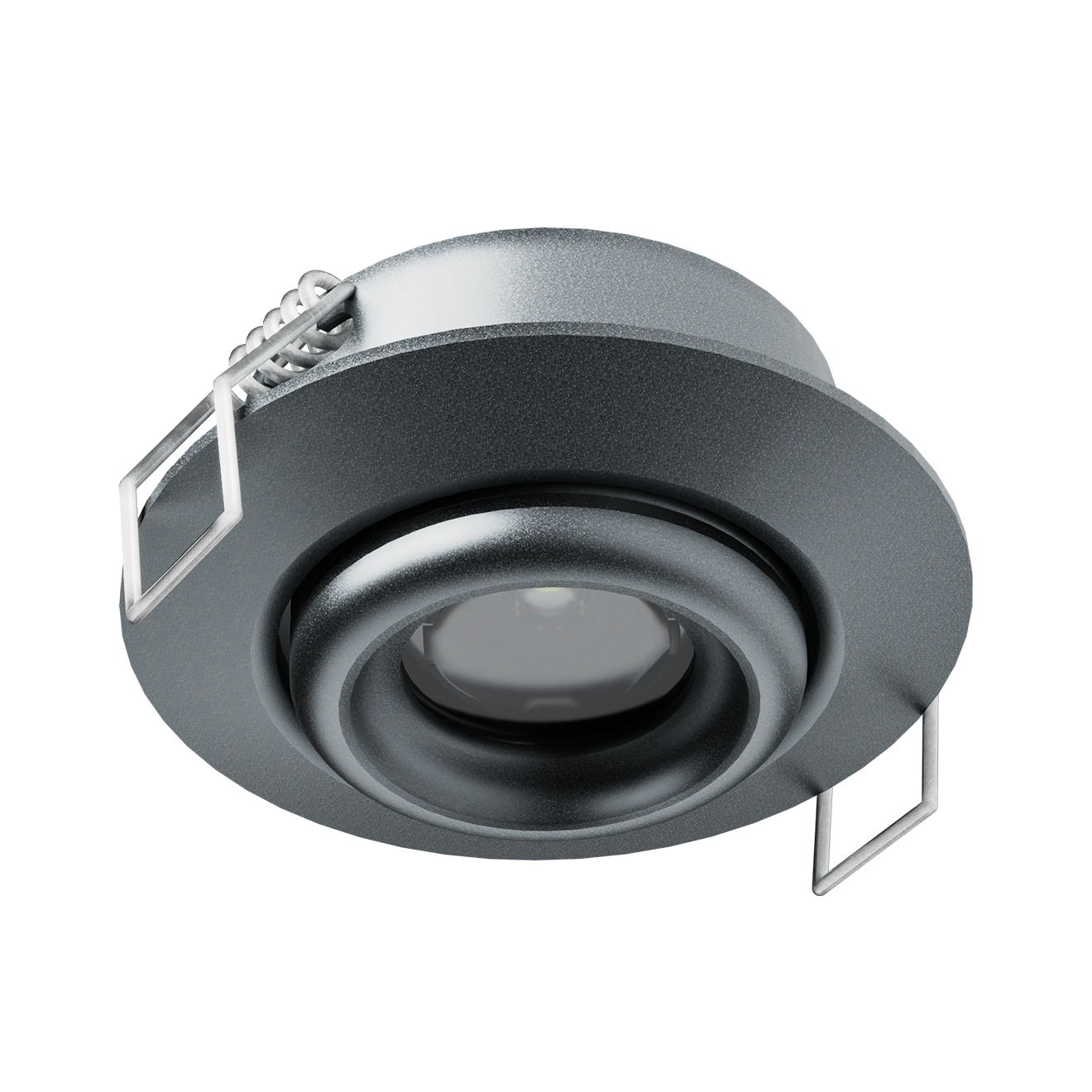

Pluto Orbit Mini Adjustable Recessed LED Spotlight 4W

Pluto Orbit Mini Adjustable Recessed LED Spotlight 4W

The Pluto Orbit Mini recessed LED spotlight is a 4 W accent fitting measuring only 52 x 25 mm, so it all but disappears into a ceiling or a joinery panel. Architects and interior designers use it to aim light precisely at a painting, a niche or a decorative detail.

Benefits

• Aim after installation: the tilting head lets you point at the object once the ceiling is closed, not before.
• Discreet format: at 52 x 25 mm the fitting hides in plasterboard ceilings and inside furniture.
• Three optics: narrow for accent at 327 lm, medium at 194 lm or wide at 262 lm.
• Faithful colour: CRI above 90 keeps artwork and displayed goods true to their real tones.
• Warm 3000 K: a relaxed atmosphere as standard, with other colour temperatures or coloured LEDs on request.
• Extra-low voltage: class III supply with the driver included, and LEDs rated 100,000 hours to L80.

Technical specifications

• Mounting: recessed, tilting head
• Material: aluminium with polycarbonate diffuser
• Finish: grey RAL7040
• Power: 4 W
• Luminous flux: 194-327 lm
• Luminous efficacy: 53-82 lm/W
• Optics: narrow, medium, wide
• Colour temperature: 3000 K standard; other CCTs or coloured LEDs on request
• CRI: above 90
• Control: on/off
• Supply: extra-low voltage, driver included
• Ingress protection: IP20
• Insulation class: III
• LED lifetime: 100,000 hours (L80)
• Dimensions: 52 x 25 mm

Applications and installation

Recess the Pluto Orbit Mini spotlight into suspended ceilings, joinery soffits, display cases, bookcases and niches in homes, galleries, shops and hotels. The spring fixing is made for quick installation in thin ceilings. Keep it in dry, conditioned interiors, because the rating is IP20. For a fixed version without tilt, specify the Pluto Core Mini instead. Both fittings are designed and manufactured in Europe.

Frequently asked questions

How does it differ from Pluto Core Mini? Orbit Mini has a tilting head and a 52 x 25 mm body. Core Mini is fixed and measures 40 x 26 mm.

How much light does it give? Between 194 and 327 lm depending on the optic, from just 4 W.

Do I need a separate transformer? No. The spotlight runs at extra-low voltage and ships with its driver.
