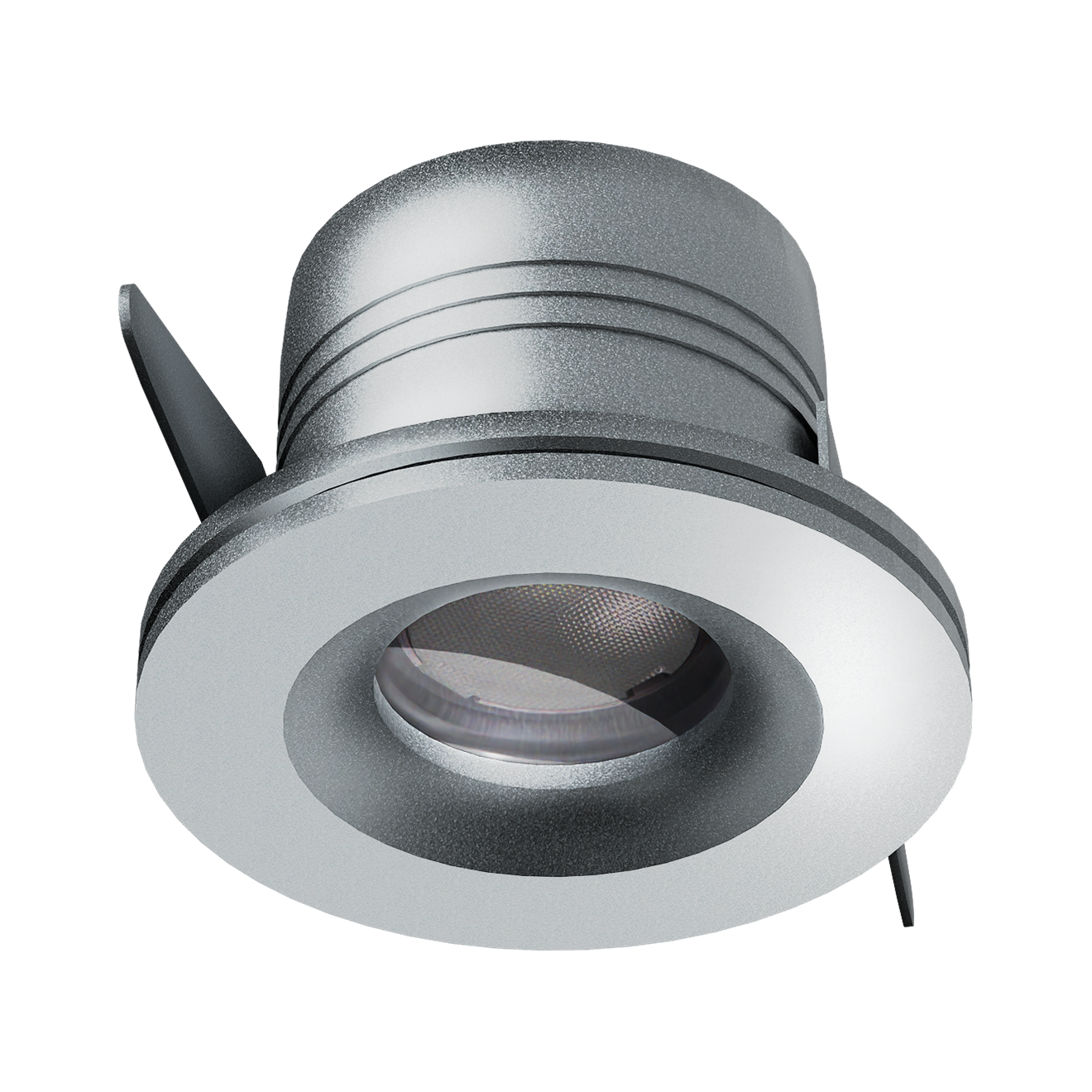

Pluto Core Mini Recessed LED Spotlight 4W

Pluto Core Mini Recessed LED Spotlight 4W

The Pluto Core Mini recessed LED spotlight is a 4 W fitting of only 40 x 26 mm and 48 grams, made for niches, joinery and ceilings with very little void behind them. Interior designers reach for it where a normal downlight will not fit but warm, accurate light is still required.

Benefits

• Fits almost anywhere: a 40 x 26 mm body weighing 0.048 kg drops into shelves, display cases and coves.
• Three beam widths: narrow at 327 lm, medium at 194 lm or wide at 262 lm, for accent or general fill.
• True materials: CRI above 90 keeps timber, textiles and merchandise in their real colours.
• Warm 3000 K: a welcoming tone for homes and retail, with other colour temperatures or coloured LEDs on request.
• Extra-low voltage: class III operation is safe inside furniture and close to people.
• 100,000 hours L80: years of service before the output drops enough to matter.

Technical specifications

• Mounting: recessed, fixed
• Material: grey-finished aluminium with clear polycarbonate diffuser
• Finish: grey RAL7040
• Power: 4 W
• Luminous flux: 194-327 lm, depending on optic
• Luminous efficacy: 53-82 lm/W
• Optics: narrow, medium, wide
• Colour temperature: 3000 K; other CCTs or coloured LEDs on request
• CRI: above 90
• Control: on/off
• Supply: extra-low voltage, driver included
• Ingress protection: IP20
• Insulation class: III
• LED lifetime: 100,000 hours (L80)
• Dimensions: 40 x 26 mm
• Weight: 0.048 kg

Applications and installation

Recess the Pluto Core Mini spotlight into suspended ceilings, coves, wardrobes, bookcases, retail display cases, hotel reception desks and indoor stair treads. The narrow optic picks out small objects, while the wide optic lights a whole shelf. Plan a 40 mm cut-out and 26 mm of depth behind the finish. Because the rating is IP20, keep the fitting inside conditioned spaces. Design and production take place in Europe.

Frequently asked questions

How much installation depth do I need? The body is 40 mm across and 26 mm deep, so it fits most furniture and shallow suspended ceilings.

Can I order another colour temperature? Yes. Standard is 3000 K, and on request we fit any other temperature or coloured LEDs.

Which version gives the most light? The narrow optic, at 327 lm and 82 lm/W.
