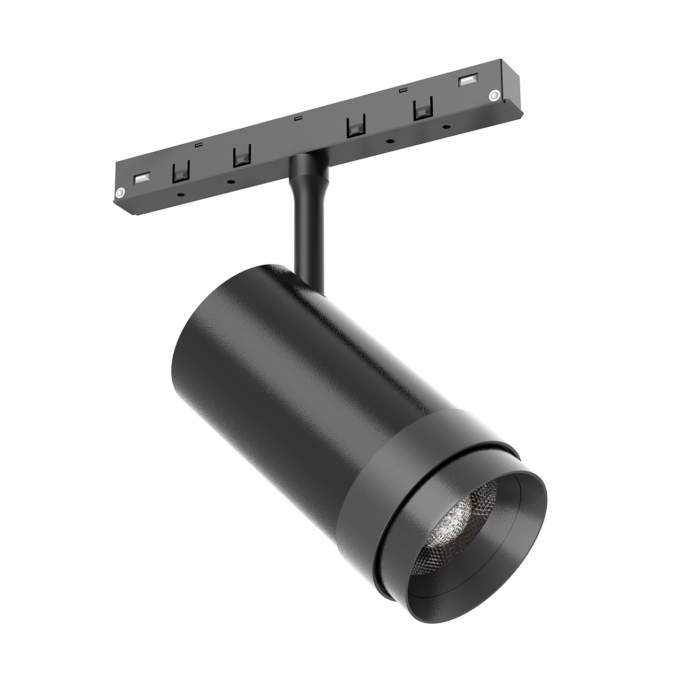

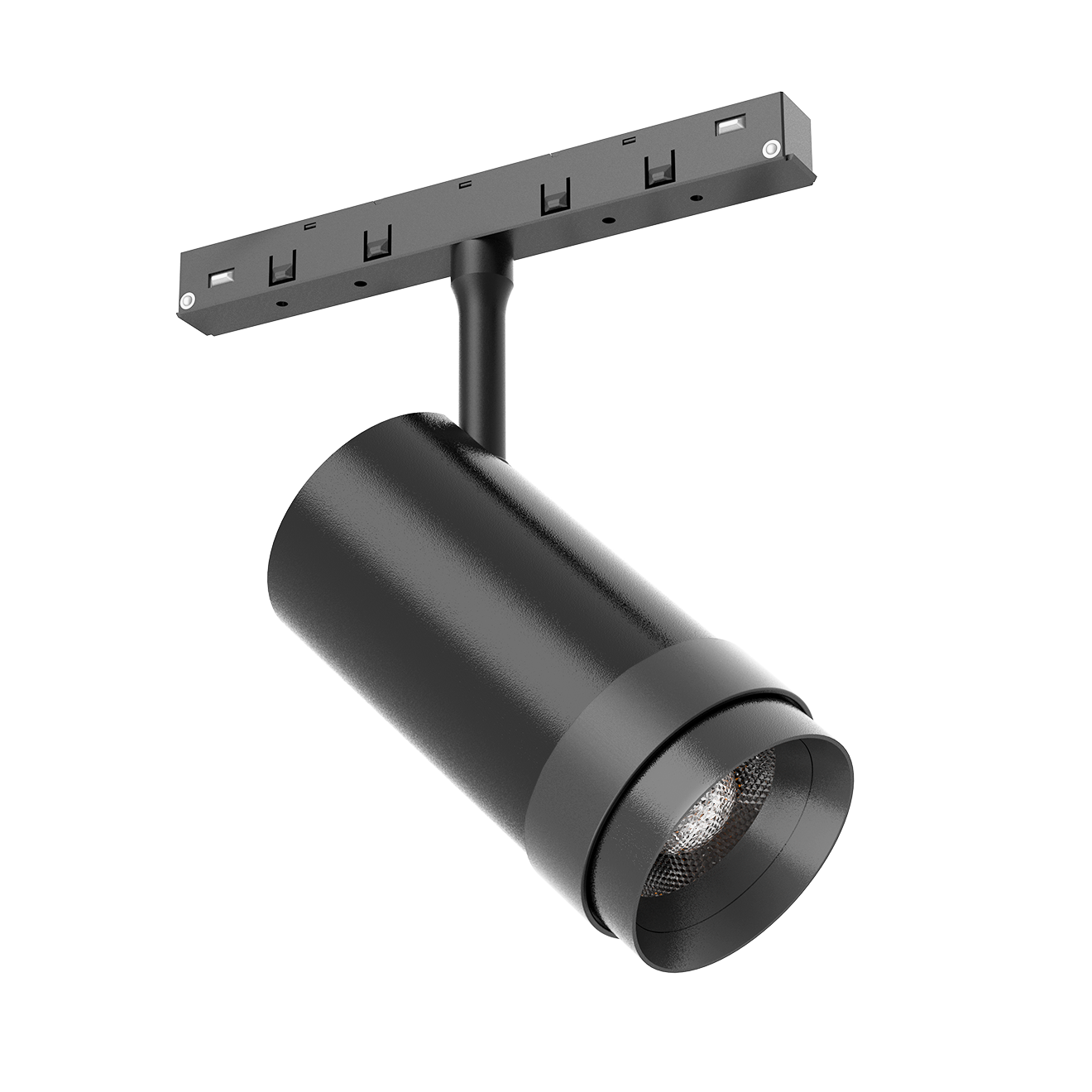

Zoomix Adjustable LED Spotlight 12W for 48V Magnetic Track

Zoomix Adjustable LED Spotlight 12W for 48V Magnetic Track

The Zoomix adjustable LED spotlight is a 12 W head for 48 V DC magnetic track, with a beam angle you set between 15 and 36 degrees. It is made for shops, galleries and showrooms where the display changes every few weeks and the light must follow it without replacing the fitting.

Benefits

• Zoom optic 15-36 degrees: tighten the beam onto a single object or open it across a full display bay.
• Tilting head: aim the light after installation, directly on the track, with no tools.
• 977 lm from 12 W: enough accent output at normal retail ceiling heights.
• Consistent colour: CRI 90 with SDCM below 5 steps keeps neighbouring spotlights matched in tint.
• Move it any time: the magnetic coupling to the 48 V track lets you re-plan the layout in minutes.
• Safe extra-low voltage: insulation class III, powered through the track rather than a local driver.

Technical specifications

• Mounting: 48 V DC magnetic track, adjustable head
• Material: aluminium
• Finish: black
• Power: 12 W
• Luminous flux: 977 lm
• Luminous efficacy: 62 lm/W
• Optic: zoom, adjustable 15-36 degrees
• Colour temperature: 3000 K or 4000 K
• CRI: 90
• Colour consistency: SDCM below 5 steps (ANSI)
• Supply voltage: 48 V DC
• Control: on/off
• Ingress protection: IP20
• Insulation class: III
• Driver included: no, powered through the track
• Accessory: surface-mounted 48 V DC magnetic track, 3 m
• Dimensions: 65 x 135 x 55.5 mm

Applications and installation

Run the Zoomix adjustable LED spotlight on the 48 V magnetic track system together with Luminex modules or other heads from the same family. It fits clothing and jewellery shops, art galleries, car showrooms, museums, restaurants and living areas with exposed ceilings. The IP20 rating keeps it indoors. Size the track power supply from the total connected load, then position each head by hand. The system is designed and built in Europe.

Frequently asked questions

How do I set the beam angle? The zoom optic adjusts manually between 15 and 36 degrees on the spotlight itself, with no lens change.

Can I use it on a 230 V track? No. Zoomix runs only on 48 V DC magnetic track.

Which colour temperature should I choose? Pick 3000 K for warm retail and hospitality interiors, 4000 K for offices and galleries.
