Linea Linear LED Bar 12V for Recessed Lighting

Linea Linear LED Bar 12V for Recessed Lighting

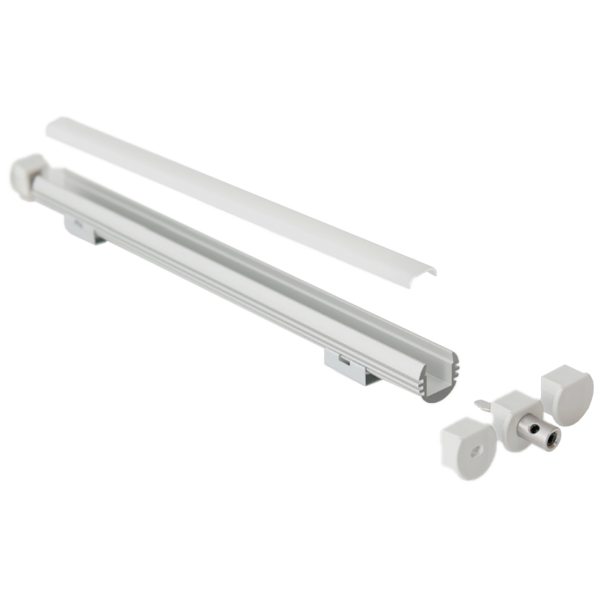

The Linea linear LED bar is an anodised aluminium profile fitted with OSRAM LEDs and run at 12V DC. Architects, designers and installers use it where light must be seen but the fitting must not: recessed into walls, floors, handrails or joinery. Modularity in 250 mm steps solves lengths that standard profiles never match.

Benefits

• Exactly the length you need: segments of 250 mm, or any multiple of 250 mm, up to 2000 mm.
• Effectively maintenance free: LED service life is a minimum of 50,000 hours.
• 8W per metre: 2W per 250 mm module, for 800 lm per linear metre.
• Two optical finishes: a clear diffuser at 97% efficiency, or a matt one at 70% for even, diffused light.
• Low-voltage safety: class III construction fed at 12V DC from an external supply.
• Higher protection on request: the LEDs can be resin-potted for a minimum of IP65.

Technical specifications

• Body material: anodised aluminium
• Diffuser: clear or matt PMMA
• Body colour: standard grey
• Light source: OSRAM LEDs
• Power: 2W per 250 mm module; 8W per linear metre
• Luminous flux: 800 lm per linear metre
• Diffuser efficiency: 97% clear, 70% matt
• LED service life: minimum 50,000 hours
• Supply: 12V DC (12-24V DC), external driver
• Electrical protection class: III
• Ingress protection: IP40 standard; minimum IP65 with resin-potted LEDs on request
• Operating temperature: -20 degrees C to +40 degrees C
• Lengths: 250 mm segments, multiples of 250 mm, maximum 2000 mm
• Weight: 0.4 kg
• Warranty: 2 years
• Markings: CE, F-Mark; indoor and outdoor use

Applications and installation

The bar serves architectural, retail, residential, office, school and hospital projects, for recessed and general interior light. Recess it into a wall, a floor, a handrail or a piece of furniture, and keep the driver accessible in a service void. The F-Mark allows mounting directly on normally flammable surfaces. Size the 12V DC supply at 8W for every metre installed and allow for cable losses on long runs. Where the profile sits in a floor or an exposed position, order the resin-potted version rated at minimum IP65, which also keeps dust out. The product is designed and made in Europe.

Frequently asked questions

Which power supply do I need? An external 12V DC driver, rated at 8W for each metre of bar installed.

Clear or matt? The clear diffuser keeps 97% of the flux and suits positions where output matters. The matt one, at 70%, hides the LED dots and gives a continuous line.

Can it go into an outdoor floor? The standard rating is IP40. For floors and exposed areas, request the resin-potted version at minimum IP65.
