Inset FATO Recessed LED Light 9W for Heliports

Inset FATO Recessed LED Light 9W for Heliports

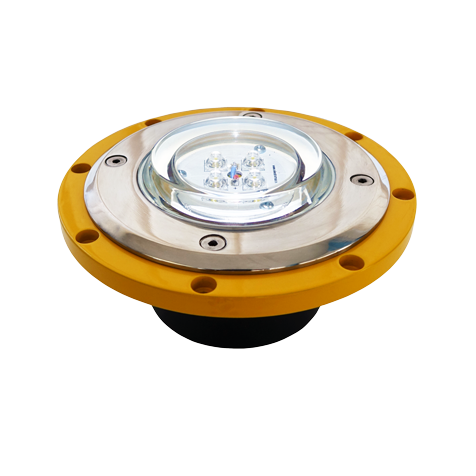

This Inset FATO recessed LED light marks the final approach and take-off area of a heliport from deck level, with no raised body at all. It suits helidecks with ground traffic, rooftop platforms and any area where helicopter skids must not meet an obstruction. The unit draws 9 W and holds up from -55 degrees C to +55 degrees C.

Benefits

• Nothing above the surface: an 80 mm deep, 153 mm diameter body sits inside the deck with the lens flush.
• Takes helicopter loads: toughened glass lens with a nickel-plated flange and stainless steel screws.
• Fully sealed: IPX8 rating, anti-condensation valve and nickel-plated brass cable gland.
• Corrosion tested: salt fog class Ka to IEC 60068-2-11 and IEC 60068-2-25, plus UV protection for coastal Gulf installations.
• Documented compliance: ICAO Annex 14 Volumes I and II and IEC TS 61827.
• Light to handle: heavy use of aluminium alloys brings the weight to 1.5 kg for easier field work.

Technical specifications

• Housing material: electrostatically painted aluminium
• Housing colour: aviation yellow RAL 1004
• Diffuser: toughened glass
• Diffuser flange: nickel-plated
• Cable gland: nickel-plated brass
• Fasteners: stainless steel
• Anti-condensation valve: included
• Light source: high-power OSRAM LED
• Total power: 9 W
• Power supply option 1: 48 V DC from the heliport controller, dimmable 100%, 30%, 10%
• Power supply option 2: 90-230 V, 50/60 Hz, no dimming
• Ingress protection: IPX8
• Operating temperature: -55 degrees C to +55 degrees C
• Salt fog test: Ka, to IEC 60068-2-11 and IEC 60068-2-25
• UV protection: yes
• Standards: ICAO Annex 14 Vol. I and Vol. II, IEC TS 61827
• Diameter: 153 mm
• Height: 80 mm
• Weight: 1.5 kg
• Markings: CE, outdoor use

Applications and installation

You use the FATO inset unit both as a FATO light and as an aiming point light. Powered at 48 V DC from the heliport controller, it gives you three dimming steps. Powered at 90-230 V, it runs at fixed intensity. Recess the body into the deck with the lens flush; the anti-condensation valve clears the glass when temperatures swing. Designed and manufactured in Europe.

Frequently asked questions

When do I choose the Inset FATO recessed LED light over an elevated fitting? Whenever the surface must stay completely clear: rooftop helidecks, decks with ground taxiing, or areas crossed by vehicles.

Can I dim it? Yes, to 100%, 30% and 10%, when it runs from the controller at 48 V DC.

How does it handle wash-down and standing water? The IPX8 rating covers immersion, so deck washing and pooled rainwater are not an issue.
