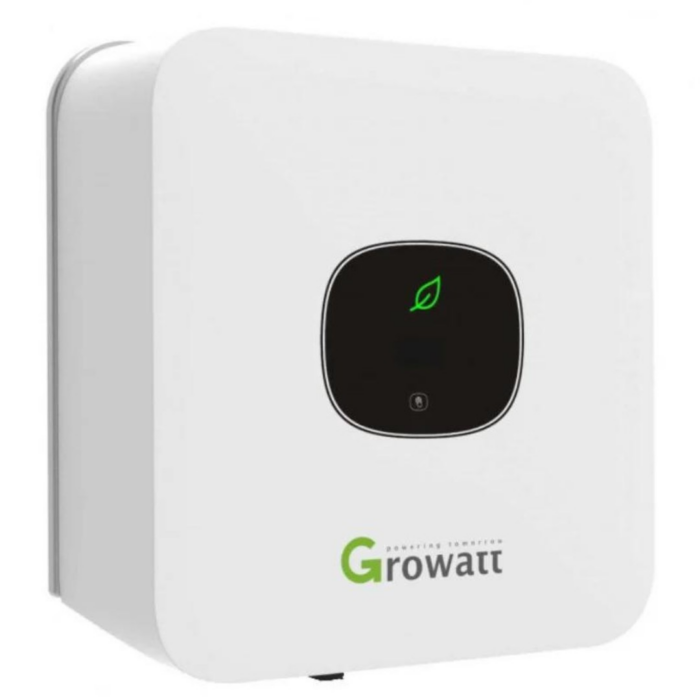

Growatt ON-GRID MIN3600TL-X 3.6KW Single Phase Inverter

The Growatt 3.6kW On-Grid Inverter offers a highly efficient and reliable solution for residential solar systems, perfect for those aiming to become prosumers. This compact, single-phase inverter (available in TL-X and battery-ready TL-XH models) maximizes your energy production and ensures seamless grid integration.

Weight

10,8 kg

Dimensions

37,5 × 35 × 16 cm

Brand

Growatt

3 People watching this product now!

The Growatt 3.6kW On-Grid inverter (popular models include MIN 3600 TL-X and MIN 5000-XH) is a smart and efficient single-phase solution designed for residential photovoltaic systems. It converts direct current (DC) generated by solar panels into alternating current (AC) usable in the home and, in excess, deliverable to the national grid, being approved for the prosumer program.

Key Features

High Efficiency: The inverter has a maximum efficiency of up to 98.4%, ensuring optimal conversion of solar energy.
Compact and Lightweight Design: It has a modern, compact design, being about 30% lighter than previous models, which facilitates installation.
Dual MPPT (Maximum Power Point Tracking): Equipped with two MPP trackers, it optimizes energy production even when the panels are partially affected by shade or have different orientations.
Smart Monitoring: Offers advanced remote monitoring functions, allowing the user to check system performance via Wi-Fi or other communication modules.
Advanced Protection: Includes safety measures such as active arc fault circuit interrupter (AFCI) protection and type II surge protection on the DC and AC sides, ensuring safe operation.
Hybrid Compatibility (for the TL-XH model): The TL-XH variant is a hybrid inverter that supports the subsequent addition of a storage system (Growatt ARK XH batteries), offering increased energy autonomy.

General Technical Specifications

Rated AC power: 3.6kW
Max. power PV recommended: 5kW
Maximum DC voltage: 550V
Start-up voltage: 100V
Max. input current per MPP tracker: 13.5A
Max. short-circuit current per MPP tracker: 16.9A
Rated AC output power: 3.6W
Rated AC voltage (range *): 230V (180-280V)
AC mains frequency: 50/60Hz, (45-55Hz/55-65 Hz)
Max. output current: 22.7A
Degree of protection: IP65, which means it is resistant to dust and water, suitable for installation in various environments.
Display: Equipped with a modern OLED touchscreen for simple operation
Operating temperature range: -25°C…+60 °C
