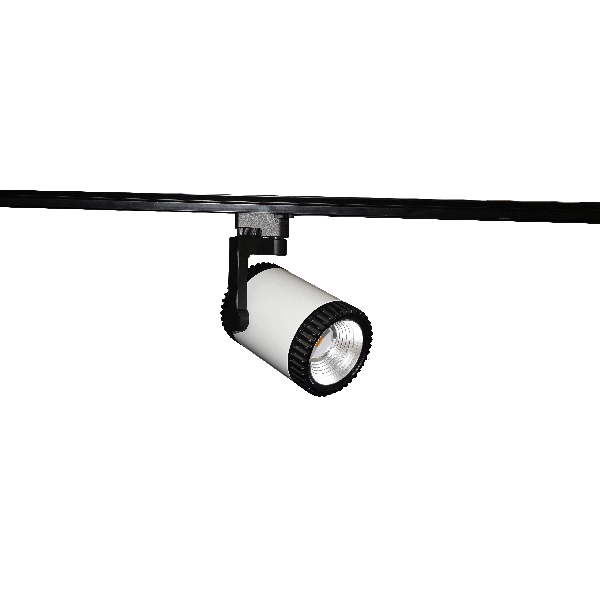

Celest II LED Track Spotlight 1 COB LED 30W

Celest II LED Track Spotlight 1 COB LED 30W

The Celest II LED track spotlight is an indoor accent fitting with a single 30W COB LED. It is made for shops and showrooms that rearrange their displays often. Track mounting on three circuits lets you move and regroup spotlights without touching the ceiling or calling an electrician back.

Benefits

• Flexible merchandising: the 2 m three-circuit track accepts repositioning whenever the window display changes.
• Beam matched to the object: reflector focusing is specified wide, medium or narrow, according to the size of the product on show.
• Heat carried away: the aluminium body takes the temperature off the COB LED, which keeps output and service life stable.
• Three colour temperatures: warm white 3000 K, neutral white 4000 K or cool white 5000 K, chosen for the goods.
• True colours on request: LEDs with CRI above 90 are available for colour-critical merchandise.
• Low draw: one 30W Bridgelux COB LED replaces far hungrier conventional accent sources.

Technical specifications

• Housing material: anodised aluminium and PVC, external assembly parts in stainless steel
• Housing colour: white (standard)
• Diffuser: plexiglass
• Light source: 1 Bridgelux COB LED
• Power per LED: 30W
• LED colour (option): warm white 3000 K, neutral white 4000 K, cool white 5000 K
• Colour rendering index: on request, above CRI 90
• Focusing (option): wide, medium, narrow, with reflectors
• Mounting: on a 2 m track with 3 circuits
• Nominal current: maximum 16A per track
• Power supply: 230V AC, 50Hz (standard)
• Electrical protection class: I
• Ingress protection: IP40
• Operating temperature: -20 to +40 degrees C
• Dimensions: diameter 115 mm, length 160 mm
• Weight: 1 kg

Applications and installation

Use the Celest II LED track spotlight for indoor retail lighting: window displays, stands, product shelving and feature walls. Mount it on the 2 m three-circuit track and keep the total current of all fittings on one track below 16A. With IP40 protection the spotlight belongs in dry spaces only, so plan it for air-conditioned shop interiors and enclosed display windows rather than open mall frontage or covered outdoor areas.

Frequently asked questions

How many spotlights fit on one track? The track is 2 m long with 3 circuits and accepts fittings drawing a total of 16A at most. We can help you calculate the exact number for your layout.

Can I choose the beam angle? Yes. Focusing is done with reflectors and is ordered in the wide, medium or narrow version.

Will it work in a window exposed to rain? No. The spotlight is rated IP40 and is intended for indoor use only.
