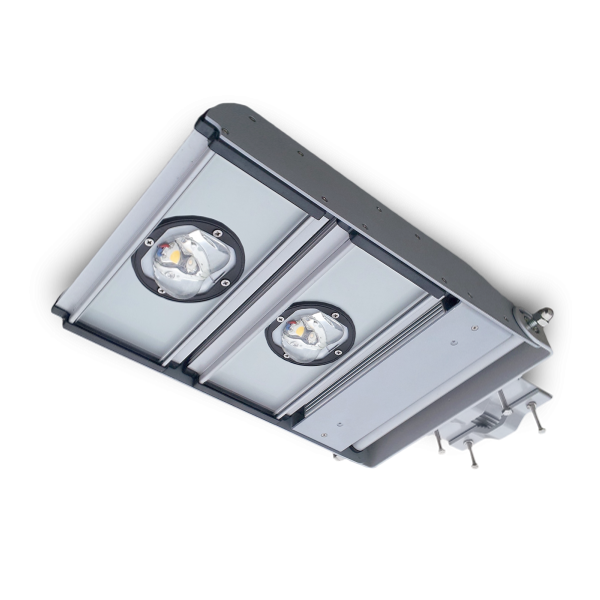

Proton S Street LED Floodlight 2 COB LEDs 30-50W

Proton S Street LED Floodlight 2 COB LEDs 30-50W

The Proton S street LED floodlight with 2 COB LEDs doubles the luminous surface of the base model. The body measures 400 x 248 mm. It serves lighting designers and commercial property teams who light facades, car parks and streets. Each Bridgelux COB source gets its own silicone lens, selected for the mounting height.

Benefits

• Two Bridgelux COB sources: even light over a wider surface than the single LED version.
• Silicone lenses: the material withstands outdoor conditions and allows different beams on request.
• Colour of your choice: 3000 K, 4000 K or 5000 K, with CRI 80 on warm and neutral white.
• Elliptical asymmetric beam, aimed through a bracket that tilts plus or minus 45 degrees.
• Anodised aluminium housing, electrostatically powder coated, with a UV protected 3 mm diffuser.
• 90-250 V AC supply with a built in driver and a power factor above 0.95.

Technical specifications

• Housing material: anodised aluminium, electrostatically powder coated
• Diffuser: 3 mm clear polycarbonate, UV protected
• Housing colour: other colours available on customer request
• Number of LEDs: 2 COB LEDs
• Light source: Bridgelux COB
• Total power: 30-50 W (per the manufacturer data sheet)
• Luminous efficacy: minimum 110 lm/W for cool white
• Colour rendering index (CRI): 80 for warm and neutral white, 70 for cool white
• LED colour (configurable): warm white 3000 K, neutral white 4000 K, cool white 5000 K
• Focusing: elliptical, silicone lenses, other beams on request
• Supply: 90-250 V AC, 50/60 Hz, built in driver
• Electrical insulation class: I
• Power factor: above 0.95
• Total harmonic distortion: below 20%
• Ingress protection: IP65
• Impact resistance: IK10
• Operating temperature: -20 degrees C to +40 degrees C
• Tilt adjustment: plus or minus 45 degrees
• Dimensions: 400 x 248 mm
• Weight: 4.8 kg
• Markings: CE, F (mounting on normally flammable surfaces)

Applications and installation

The main applications are facade lighting, car park lighting and street lighting, in architectural, commercial, residential and public projects. You fix the body on a pole or bracket. Rotate it within 45 degrees to cover the target area. The F marking allows normally flammable surfaces, and IP65 keeps the unit outdoors. Check that the arm carries 4.8 kg before installation.

Frequently asked questions

Can the two LEDs carry different beams? The focusing is set on request, according to the mounting height. Discuss the right combination with our engineering team.

Which colour suits a facade? Warm white 3000 K with CRI 80 brings out stone and brick. Neutral white 4000 K stays a safe choice for modern buildings.

How heavy is the luminaire? The Proton S street LED floodlight weighs 4.8 kg at 400 x 248 mm. Size the bracket accordingly.
