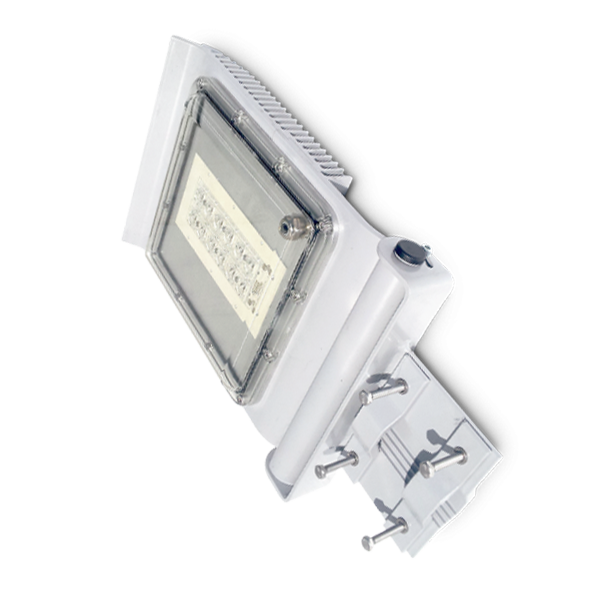

Proton II Street LED Floodlight 12 LEDs 30W 3360 lm

Proton II Street LED Floodlight 12 LEDs 30W 3360 lm

The Proton II street LED floodlight produces 3360 lm from only 30W. It suits road authorities, car park operators and sports facilities that need a rugged luminaire with a universal 90-260V AC supply and bracket mounting. Twelve high-intensity OSRAM LEDs of 2.5W each carry the output.

Benefits of the Proton II street LED floodlight

• 3360 lm from 30W: a minimum efficacy of 112 lm/W keeps the running cost of every pole low.
• Universal 90-260V AC, 50-60Hz input: the driver tolerates unstable grid voltage on rural feeders.
• Power factor above 0.95, THD below 20%: the luminaire loads the network cleanly, without harmonic penalties.
• Rated to +50 degrees C: the 470 x 280 x 80 mm aluminium body sheds heat during long hot spells.
• Four beam distributions: narrow (N), medium (M), wide (W) or street (S), with elliptical as the standard option.
• IP66 and a UV-stable lens: dust and driven rain stay out, and the polycarbonate does not yellow in strong sun.

Technical specifications

• Luminaire type: street floodlight, Proton II series
• Number of LEDs: 12
• Light source: high-intensity OSRAM LEDs
• Power per LED: 2.5W
• Total power: 30W
• Luminous flux: 3360 lm
• Luminous efficacy: minimum 112 lm/W
• LED colour (configurable): neutral white 4000 K, cool white 5000 K
• Colour rendering index: 80 for neutral and warm white, 70 for cool white
• Beam: elliptical; lenses for narrow (N), medium (M), wide (W) or street (S)
• Standard supply: 90-260V AC, 50-60Hz
• Driver: included, inside the housing
• Electrical insulation class: I
• Power factor: above 0.95
• THD: below 20%
• Housing material: electrostatically powder-coated aluminium
• Housing colour: standard grey
• Lens: clear UV-resistant polycarbonate
• Mounting: standard on a bracket up to 70 mm diameter; pole or flat surface on request
• Ingress protection: IP66
• Operating temperature: -20 degrees C to +50 degrees C
• Dimensions: 470 x 280 x 80 mm
• Weight: 4.9-5 kg
• Markings: CE, F

Applications and installation

You install this luminaire on residential, commercial, public and sports sites: street lighting, car park lighting, perimeter lighting and sports field lighting. The standard fixing suits a bracket of up to 70 mm diameter, while pole and flat-surface kits are available to order. The F marking allows mounting on normally flammable surfaces. IP66 and the +50 degrees C rating make it a sound choice for dusty, hot Gulf sites. The product is designed and manufactured in Europe.

Frequently asked questions

What is the total light output? 3360 lm, from 12 LEDs of 2.5W each at a minimum of 112 lm/W.

Which bracket does it fit? A bracket of up to 70 mm diameter as standard. Ask for the pole or wall kit when you order.

Does it cope with summer heat? Yes. The rated operating range reaches +50 degrees C, higher than other models in the range.
