Galaxy 10 Adjustable Linear LED Luminaire 15-26W Outdoor

Galaxy 10 Adjustable Linear LED Luminaire 15-26W Outdoor

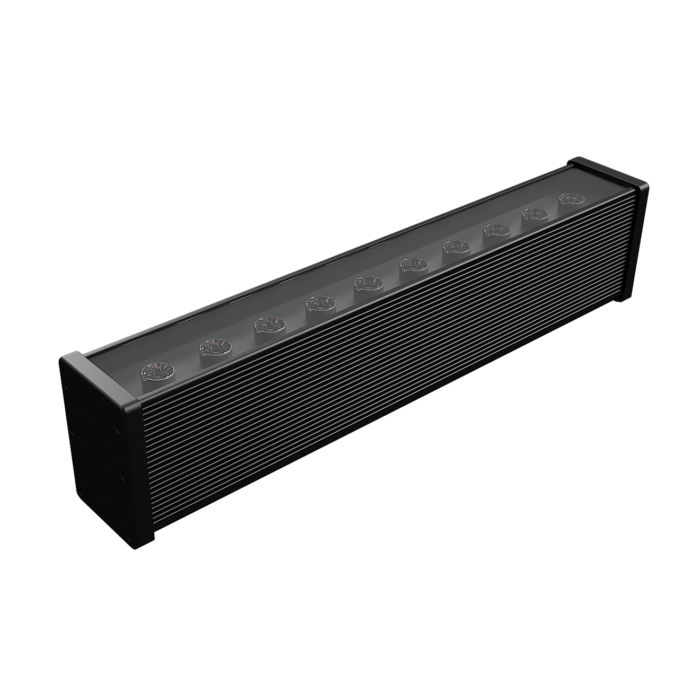

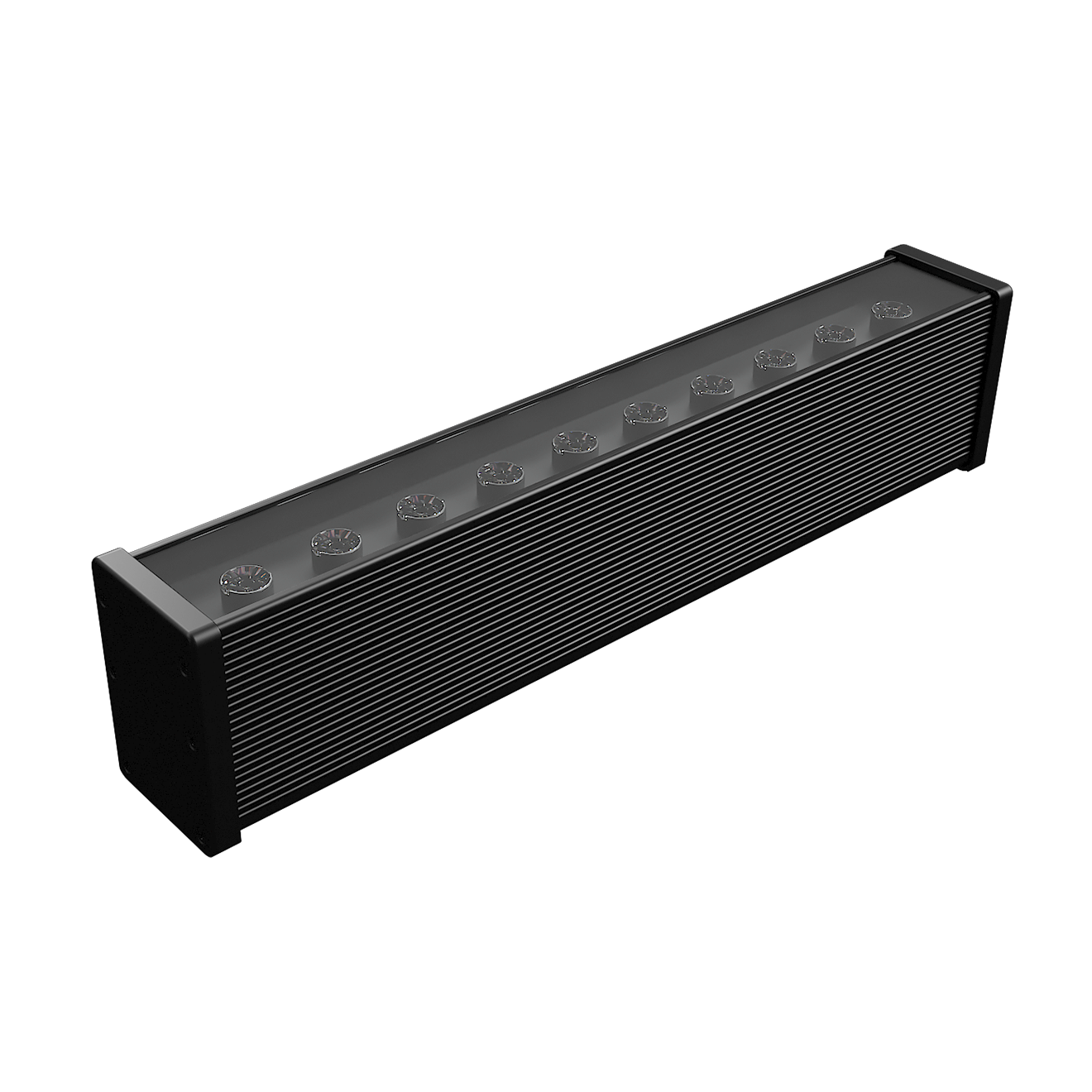

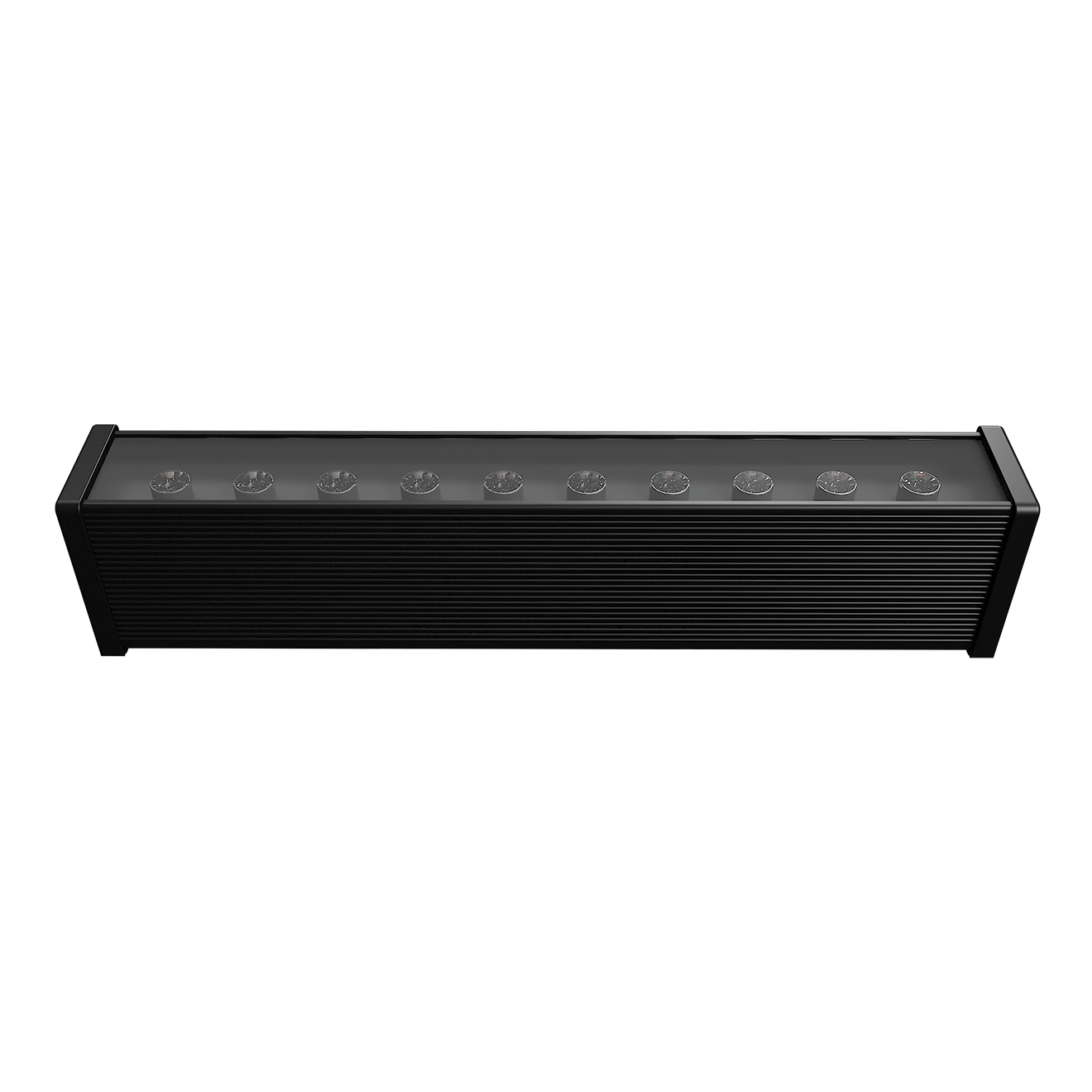

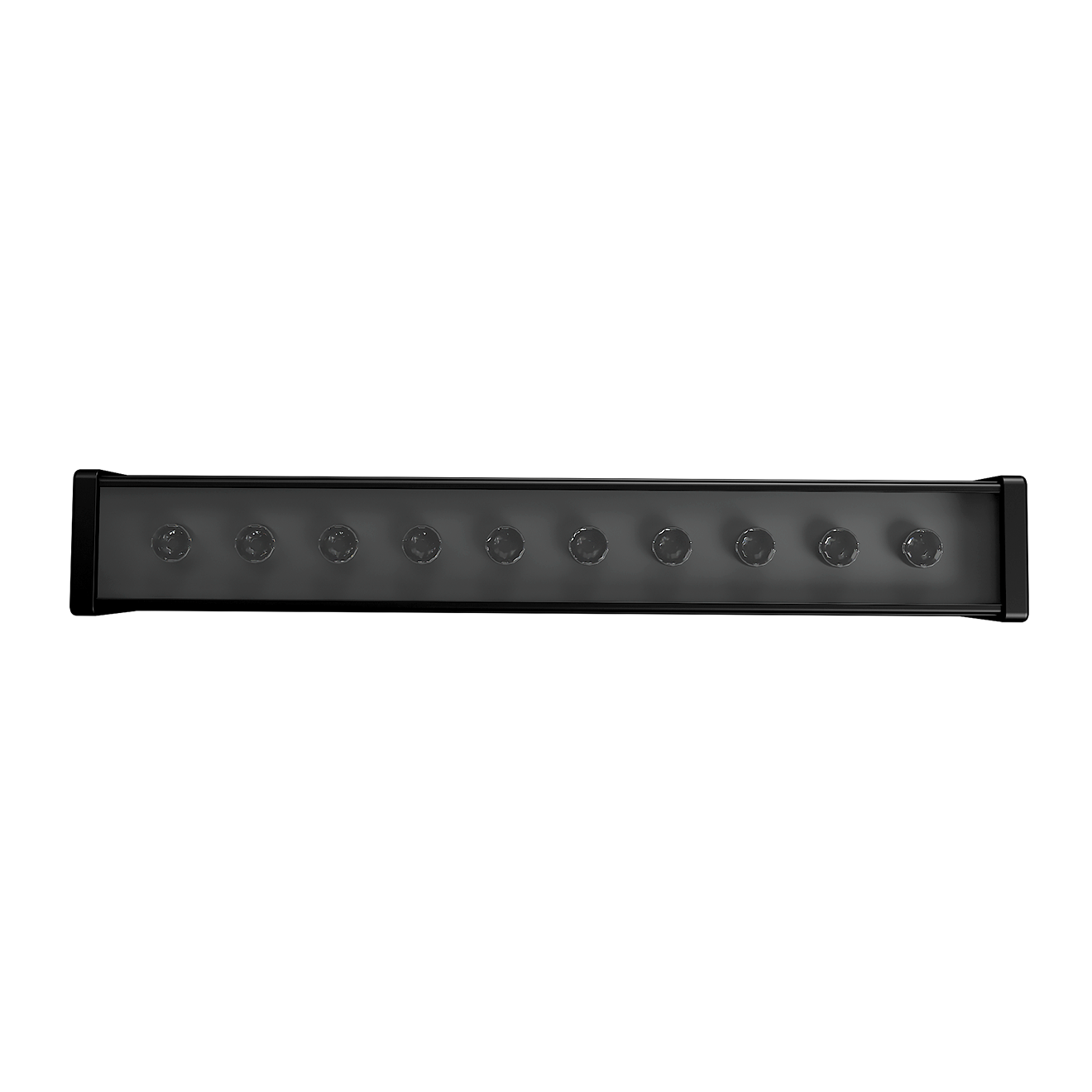

The Galaxy 10 adjustable linear LED luminaire is a 377 mm outdoor profile made for facades, columns and architectural details. Architects, lighting designers and installers use it where the fitting must be aimable, sealed to IP66 and rated IK10 against impact. It lights surfaces evenly, with the driver on board and no extra junction boxes.

Benefits

• Precise aiming: the BK bracket adjusts between -50 degrees and +90 degrees, while the standard adjustable bracket covers -90 degrees to +90 degrees.
• Mount anywhere: ceiling, floor or wall, thanks to the compact 83×58 mm extruded aluminium section.
• High output: up to 131 lm/W and up to 3768 lm in the 26 W version.
• Built for outdoors: IP66 and IK10 protection, transformer inside the housing and direct connection to 220-240 V AC.
• Six optics: wide, medium, narrow, elliptical, wall grazing and wall washer for every surface type.
• Flexible control: on/off, 1-10V or DALI versions integrate into lighting management systems.

Technical specifications

• Mounting type: surface mounted and adjustable, on ceiling, floor or wall
• Housing material: extruded aluminium

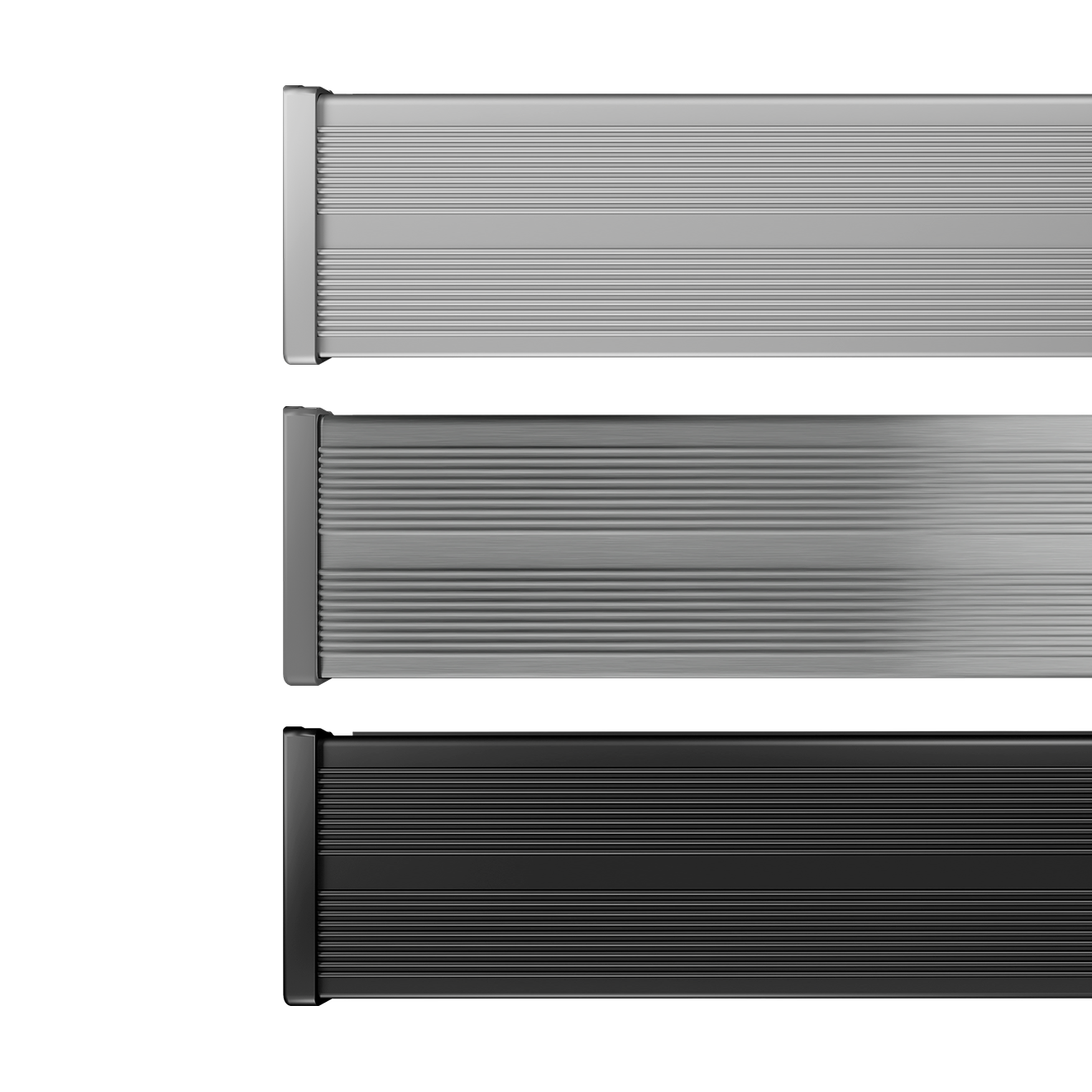

• Colours available: RAL7040 anodised aluminium silver, RAL7040 powder-coated grey, RAL9010 anodised black
• Power range: 15 W and 26 W
• Luminous flux: 1660-1947 lm (15 W), 3118-3768 lm (26 W), depending on optic and CCT
• Luminous efficacy: 108-131 lm/W
• Optics available: wide, medium, narrow, elliptical, wall grazing, wall washer
• Colour temperature: 3000 K (warm white), 4000 K (neutral white), 5000 K (cool white)
• CRI: 80
• Control: on/off, 1-10V, DALI
• Ingress protection: IP66 / IK10
• Insulation class: I
• Power supply: 220-240 V AC, driver included in the housing
• Dimensions: 83x58x377 mm
• Mounting bracket: BK (-50 degrees / +90 degrees, metal end caps) or standard adjustable (-90 degrees / +90 degrees, plastic end caps)

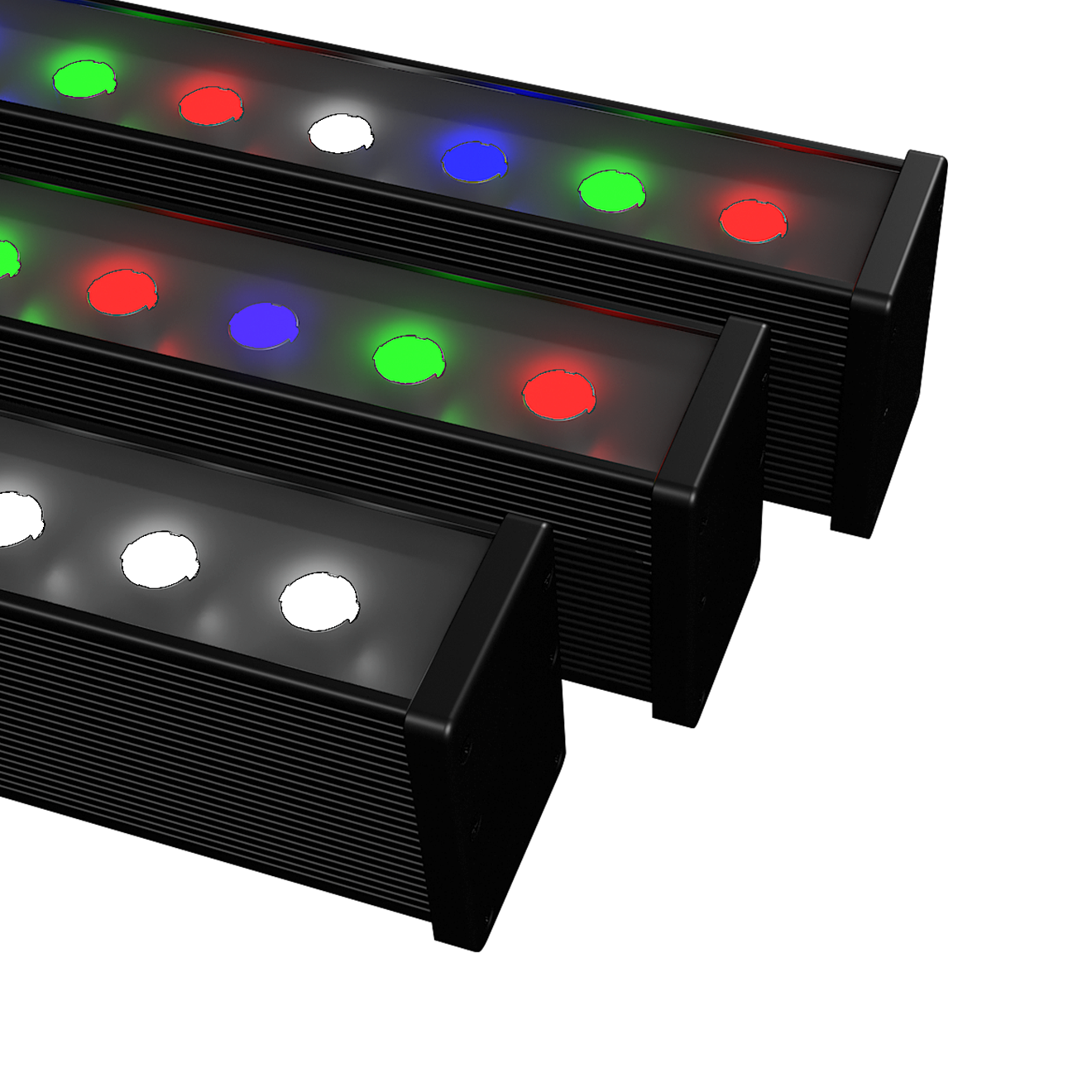

• Options on request: RGB version with DMX control; single colour version (red, amber, blue, green)

Applications and installation

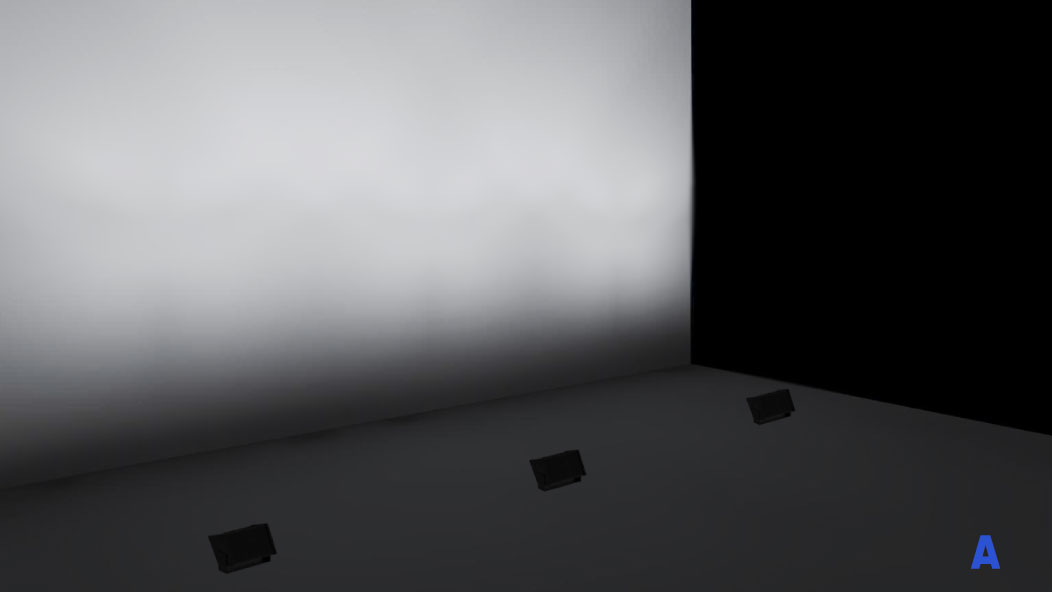

Use the Galaxy 10 linear luminaire on building facades, columns, parapets, retaining walls and decorative features in gardens or public squares. The wall grazing optic brings out the texture of stone or brick. The wall washer optic covers flat surfaces evenly. Fix the profile directly to ceiling, floor or wall with the adjustable bracket supplied. Ask for the RGB version with DMX control where the scheme calls for dynamic colour. IP66 sealing keeps dust and driven rain out of the housing. European design and manufacture.

Frequently asked questions

How does the BK bracket differ from the standard one? The BK bracket has metal end caps and adjusts from -50 degrees to +90 degrees. The standard bracket has plastic end caps and adjusts from -90 degrees to +90 degrees.

Is an external driver required? No. The Galaxy 10 linear luminaire has the transformer built into the housing and the luminaire connects directly to 220-240 V AC.

Can it join a DALI system? Yes. Choose the DALI version; 1-10V and on/off versions are also available.
