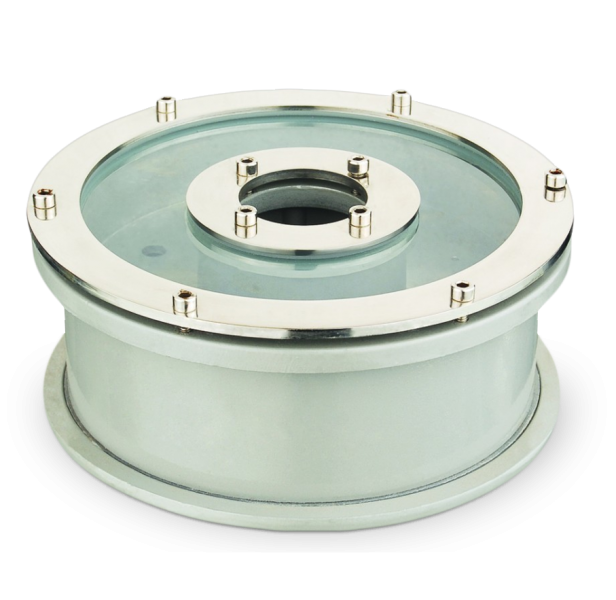

The Fontana submersible LED floodlight with 3, 6 or 9 LEDs serves fountain designers, park authorities and landscape schemes with pools or large aquariums. It mounts on the fountain nozzle and colours the water jet. It answers the need for underwater light with a sealed IP68 body running on low voltage.

Benefits

• Works fully submerged: the optical compartment is rated IP68, with a 5 mm glass diffuser held by stainless steel flanges.
• Three power levels in one body: 7.5 W, 15 W or 22.5 W, according to the LED count you order.
• Safe voltage near water: 12-24 V DC supply in insulation class III.
• Colour of your choice: three shades of white, plus red, green, blue and orange for dynamic effects.
• Beam matched to the jet: wide, medium or narrow focus, according to the water height.
• Compact body: 160 x 65 mm and 1 kg, with a 38 mm inner diameter for the nozzle to pass through.

Technical specifications

• Housing material: powder-coated aluminium
• Housing colour: grey as standard
• Diffuser: clear 5 mm glass
• Flanges: stainless steel
• Light source: OSRAM LEDs
• Number of LEDs: 3, 6 or 9
• Total power: 7.5 W, 15 W or 22.5 W
• LED colours: warm white 3000 K, neutral white 4000 K, cool white 5000 K, red 650 nm, green 523 nm, blue 470 nm, orange 617 nm
• Beam focus: wide, medium, narrow
• Luminous output: min. 250 lm/LED cool white, min. 200 lm/LED warm white
• CRI: 80 for neutral and warm white, 70 for cool white
• Supply: 12-24 V DC standard, external power unit
• Supply cable length: 2 m
• Insulation class: III
• Ingress protection: IP68
• Operating temperature: -20 degrees C to +40 degrees C; submerged +5 degrees C to +40 degrees C
• Dimensions: 160 x 65 mm, inner diameter 38 mm
• Diameter: 160 mm
• Weight: 1 kg
• Markings: CE, F mark for mounting on normally flammable surfaces, outdoor use

Applications and installation

The fitting belongs to architectural work, in the submersible lighting application. Fix it on the fountain nozzle through the 38 mm inner opening, so the light rises with the jet. It also suits ornamental pools and large aquariums. The external 12-24 V DC power unit stays out of the water in a protected enclosure, and the 2 m cable makes the connection. Keep the water between +5 degrees C and +40 degrees C for submerged operation.

Frequently asked questions

How long can it stay underwater? Permanently, within the water temperature range of +5 degrees C to +40 degrees C. In air the body operates from -20 degrees C.

How do I choose the LED count? Three LEDs at 7.5 W suit small jets, while nine LEDs at 22.5 W suit tall fountains or deep basins.

Can one fountain carry several colours? Yes. Order floodlights with different LEDs, for example blue on one nozzle and warm white on another.
