Display Line III LED Luminaire 1 Module 13W, Surface-Mounted

Display Line III LED Luminaire 1 Module 13W, Surface-Mounted

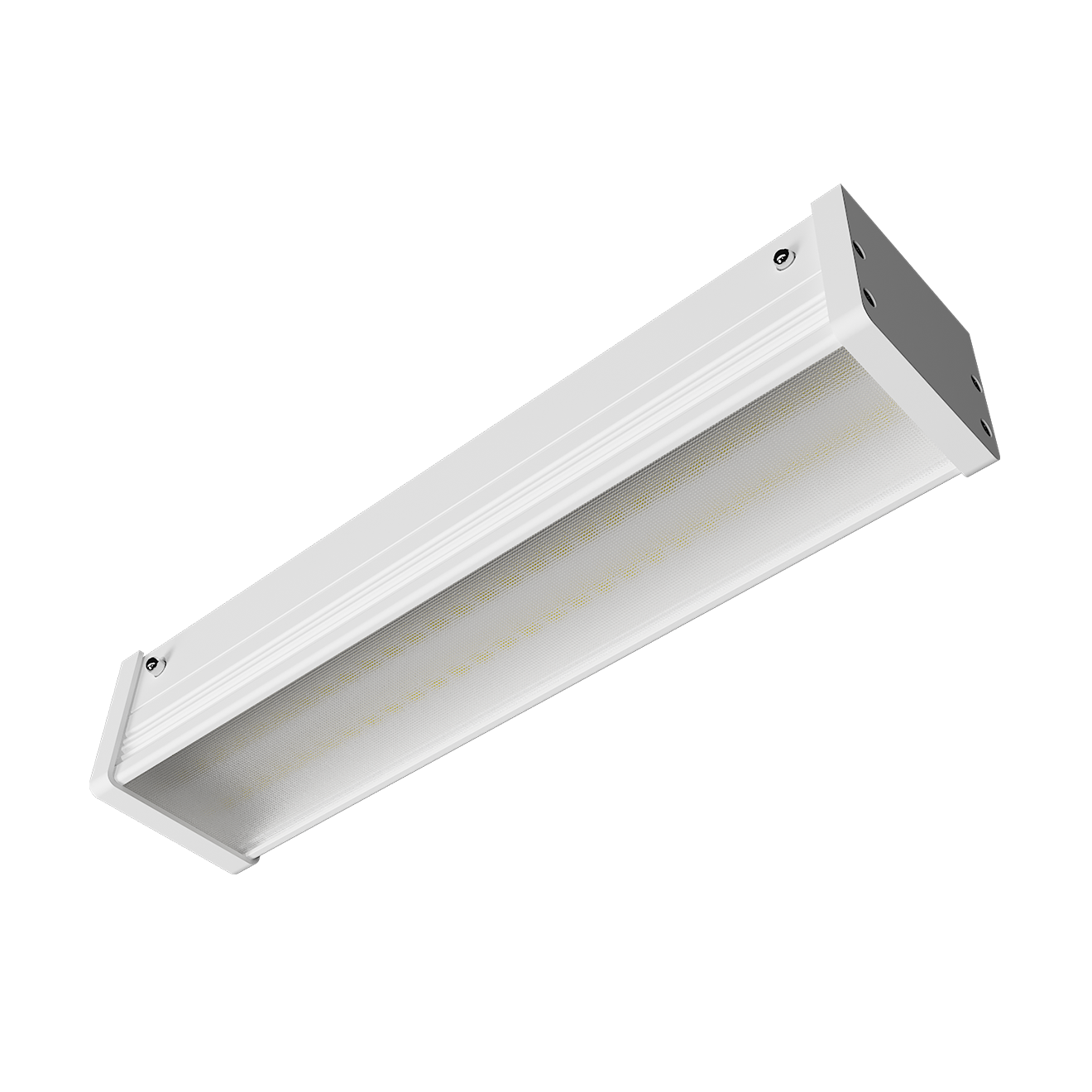

The Display Line III LED luminaire, in its surface-mounted linear one-module form, is the shortest element of the series: 317 mm, 13 W and up to 1699 lm. Retailers and shopfitters use it to light display cases, niches, short shelf runs and counters, with a white extruded aluminium profile fixed straight onto the surface.

Benefits

• A length that fits small spaces: 317 mm slips into a display case, under a shelf or into a niche where a 600 mm body will not go.

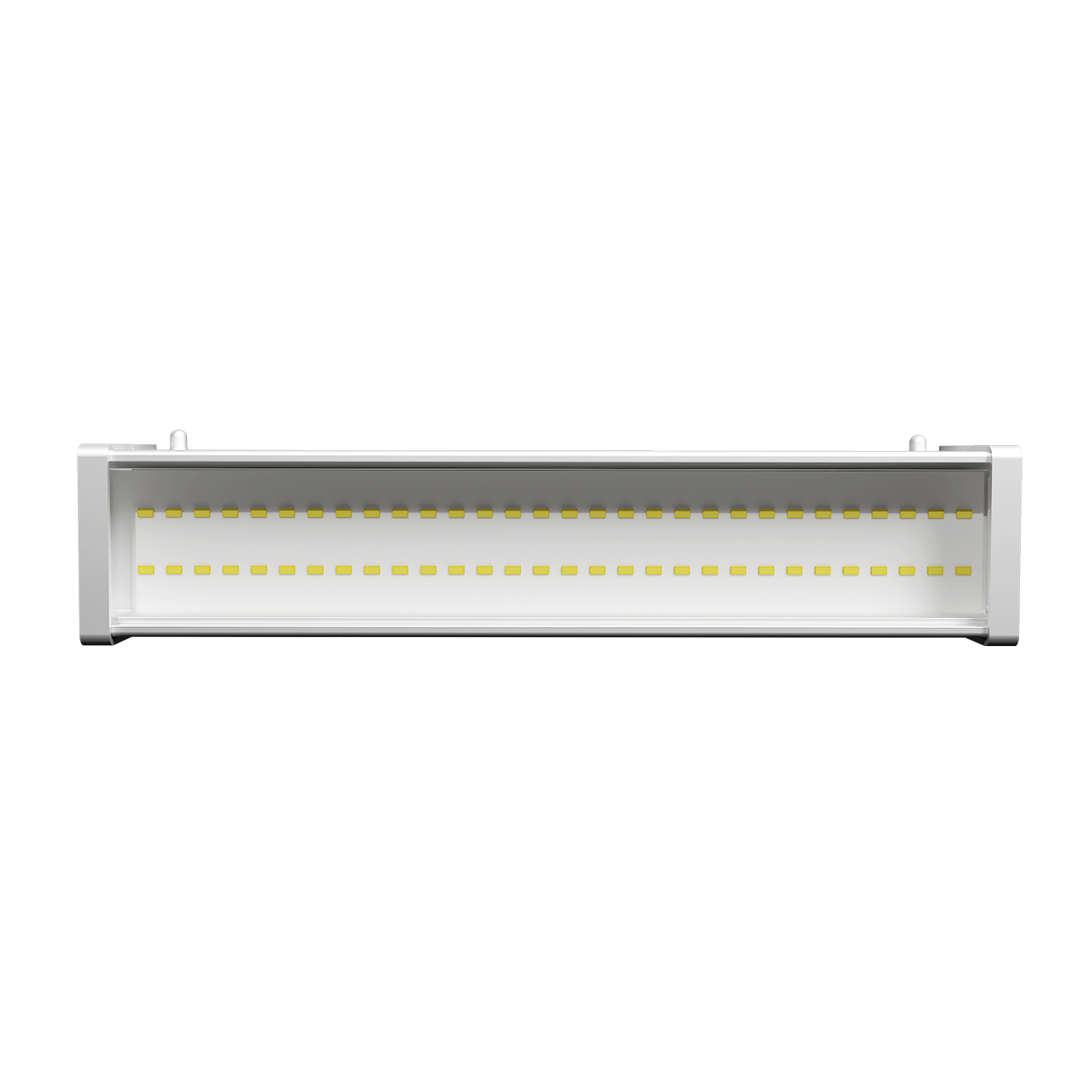

• Two diffuser types: clear for maximum output, 1699 lm at 130 lm/W, or multi-prismatic for softer light without reflections on glass.
• Impact-resistant profile: IK10 means it survives contact with stock and trolleys in busy areas.
• No separate driver: the driver is built in, so the luminaire is mounted and wired in one visit.
• Three colour temperatures: 3000 K for warm goods, 4000 K for neutral, 5000 K for cool white in technical displays.

Technical specifications

• Mounting: surface, on the substrate
• Material: extruded aluminium
• Colour: white RAL9010, anodised
• Number of modules: 1
• Power: 13 W
• Luminous flux: 1592 – 1699 lm, depending on diffuser
• Luminous efficacy: 122 – 130 lm/W
• Optical efficiency: 86.2 % – 92.1 %
• Diffuser: clear or multi-prismatic
• Correlated colour temperature: 3000 K, 4000 K, 5000 K
• Colour rendering index: CRI 80
• Control: on/off
• Ingress protection: IP40
• Impact resistance: IK10
• Electrical insulation class: I
• Driver included: yes
• Adjustable: no
• Dimensions: 317 x 59 x 68.5 mm

Applications and installation

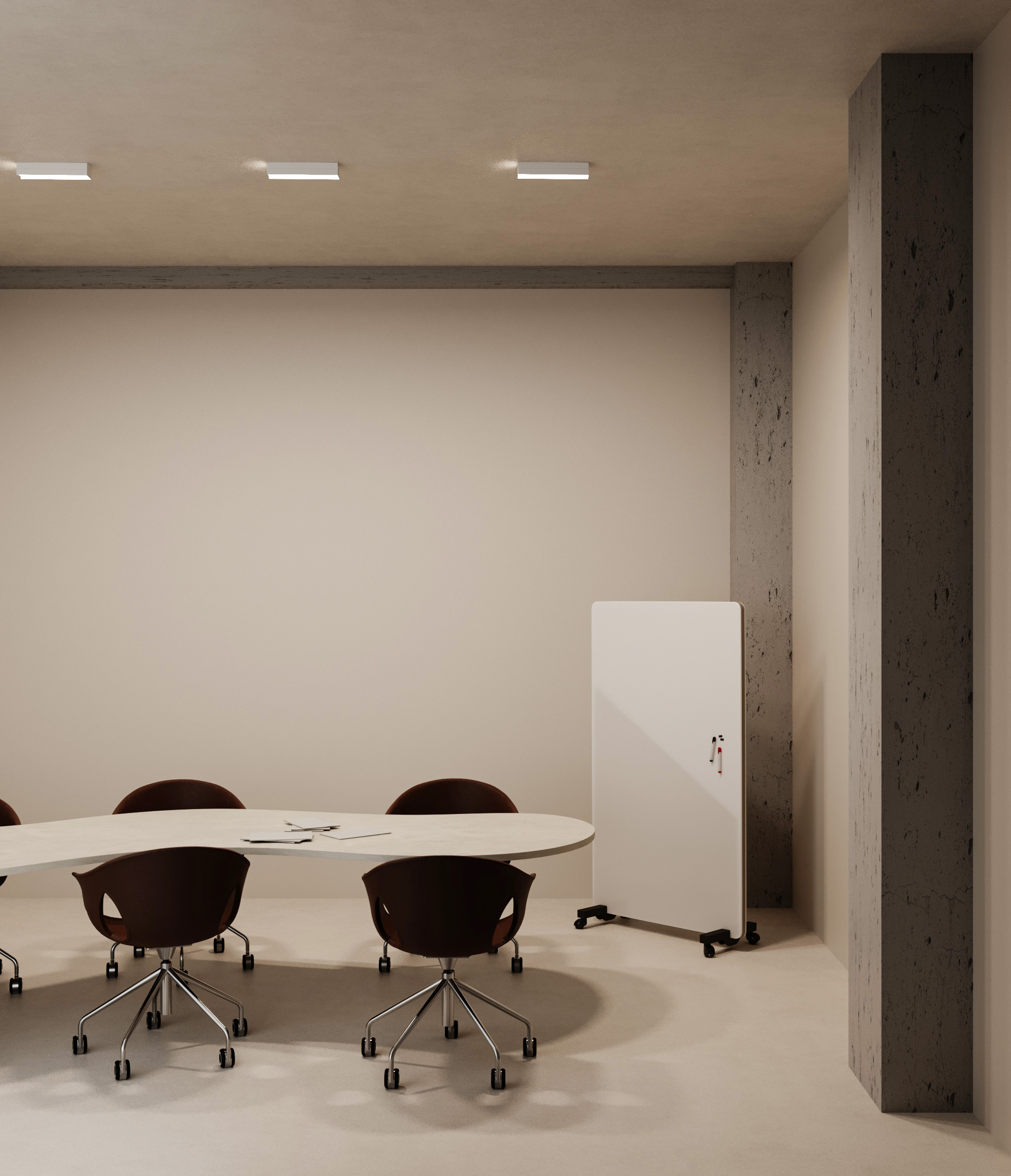

Fix the luminaire to a surface under shelves, on a ceiling or on a wall, in shops, pharmacies, kiosks, display cases, workshops and indoor technical rooms. IP40 protects it against dust but reserves it for dry interiors. Wire it in class I with an earth connection, and switch it on/off. For longer runs the series also offers 2-module and 5-module versions, which line up with this Display Line III LED luminaire. Each combination of diffuser and colour temperature carries its own order code, so state the code when you request a quotation. The product is designed and manufactured in Europe.

Frequently asked questions

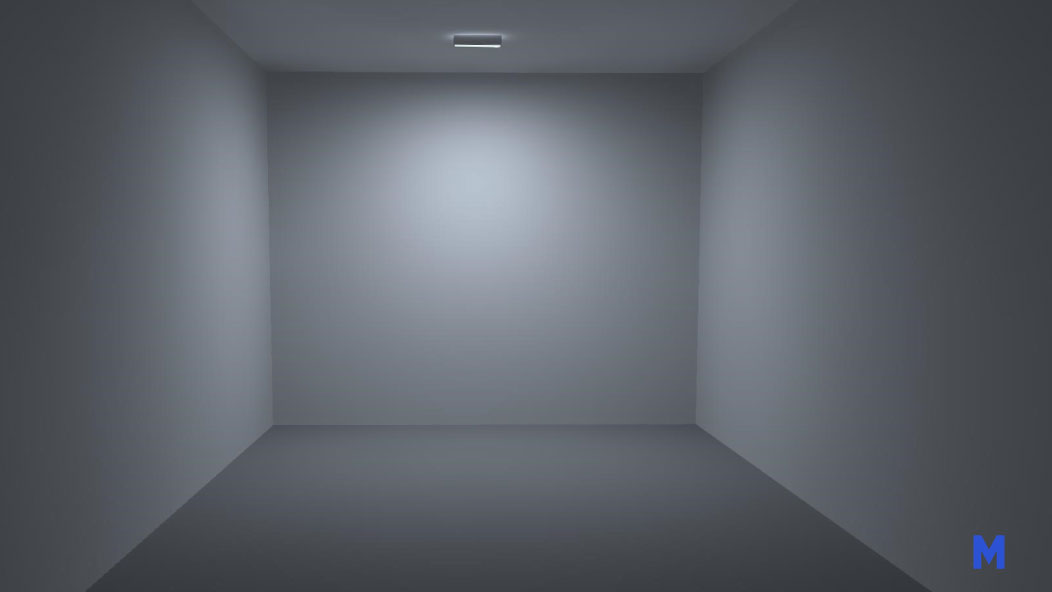

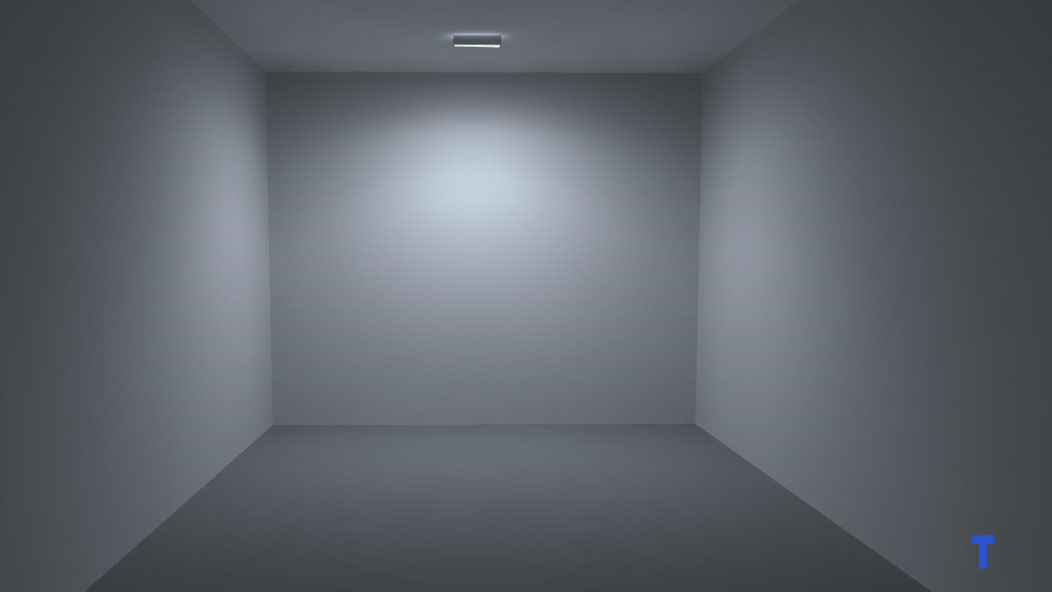

Clear or multi-prismatic? Clear gives more flux, 1699 lm, and suits positions where the luminaire is not in view. The multi-prismatic diffuser reduces glare and is preferred at eye level or behind glass.

Can several units be joined in a line? You can mount units side by side on the same surface. For long continuous runs, choose the 2-module or 5-module version.

Is it dimmable? No. The 1-module Display Line III LED luminaire is supplied with on/off control.
