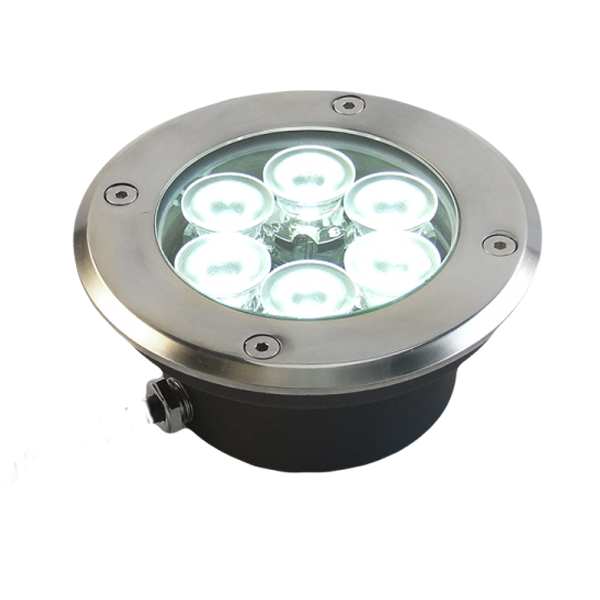

Atlas Recessed RGB DMX LED Floodlight 6 LEDs Outdoor

Atlas Recessed RGB DMX LED Floodlight 6 LEDs Outdoor

The Atlas recessed RGB DMX LED floodlight with 6 LEDs is the paving unit of the Atlas series, with two LEDs per colour. Architects and installers choose it to uplight columns, walls or trees where a walk-over fitting, extra-low voltage and DMX control are all required in the same detail.

Benefits of the Atlas recessed RGB DMX floodlight

• Twice the intensity of the 3-LED version: 2 red, 2 green and 2 blue LEDs handle taller or more reflective surfaces.
• Shallow recess: the hole measures 125 mm in diameter and only 80 mm deep, useful in thin paving build-ups.
• Extra-low voltage, class III: 12-24V DC suits pedestrian areas and gardens.
• DMX driver on board: every floodlight takes its own address and connects straight into the line.
• IP67: it withstands dust and temporary immersion, a requirement for in-ground fittings.
• Beam to order: wide, medium, narrow or omnidirectional.

Technical specifications

• Luminaire type: recessed RGB floodlight, Atlas series
• Number of LEDs: 6 (2 x red, 2 x green, 2 x blue)
• Light source: OSRAM LEDs
• LED colour: red 650 nm, green 523 nm, blue 470 nm
• Supply: 12-24V DC
• Electrical protection class: III
• DMX driver: included, inside the housing
• Beam (configurable): wide, medium, narrow, omnidirectional
• Ingress protection: IP67
• Mounting hole diameter: 125 mm
• Mounting hole depth: 80 mm
• Weight: 1.0 kg
• Use: outdoor
• Markings: CE, F

Applications and installation

This unit works in commercial, residential and public spaces, for garden lighting, parks, access paths, architectural uplighting and general ambient light. Install it in a back box or a recess 125 mm in diameter, with drainage underneath. The supply comes from a 12-24V DC unit and the signal from a DMX controller. The F marking permits mounting in timber terraces and decking. IP67 protects the fitting against dust and wash-down water. The floodlight is designed and built in Europe.

Frequently asked questions

How deep must the hole be? 80 mm, with a diameter of 125 mm. That is shallower than the 3-LED model, which needs 100 mm.

Does it connect directly to 230V? No. It runs at 12-24V DC in class III, so you need an extra-low voltage power supply upstream.

Can it be walked on? It is an in-ground fitting with IP67 protection, made for paving and walkways. For vehicle traffic, consult our team before ordering.
