Arcadia L Surface-Mounted LED Spotlight 10W Interchangeable Optics

Arcadia L Surface-Mounted LED Spotlight 10W Interchangeable Optics

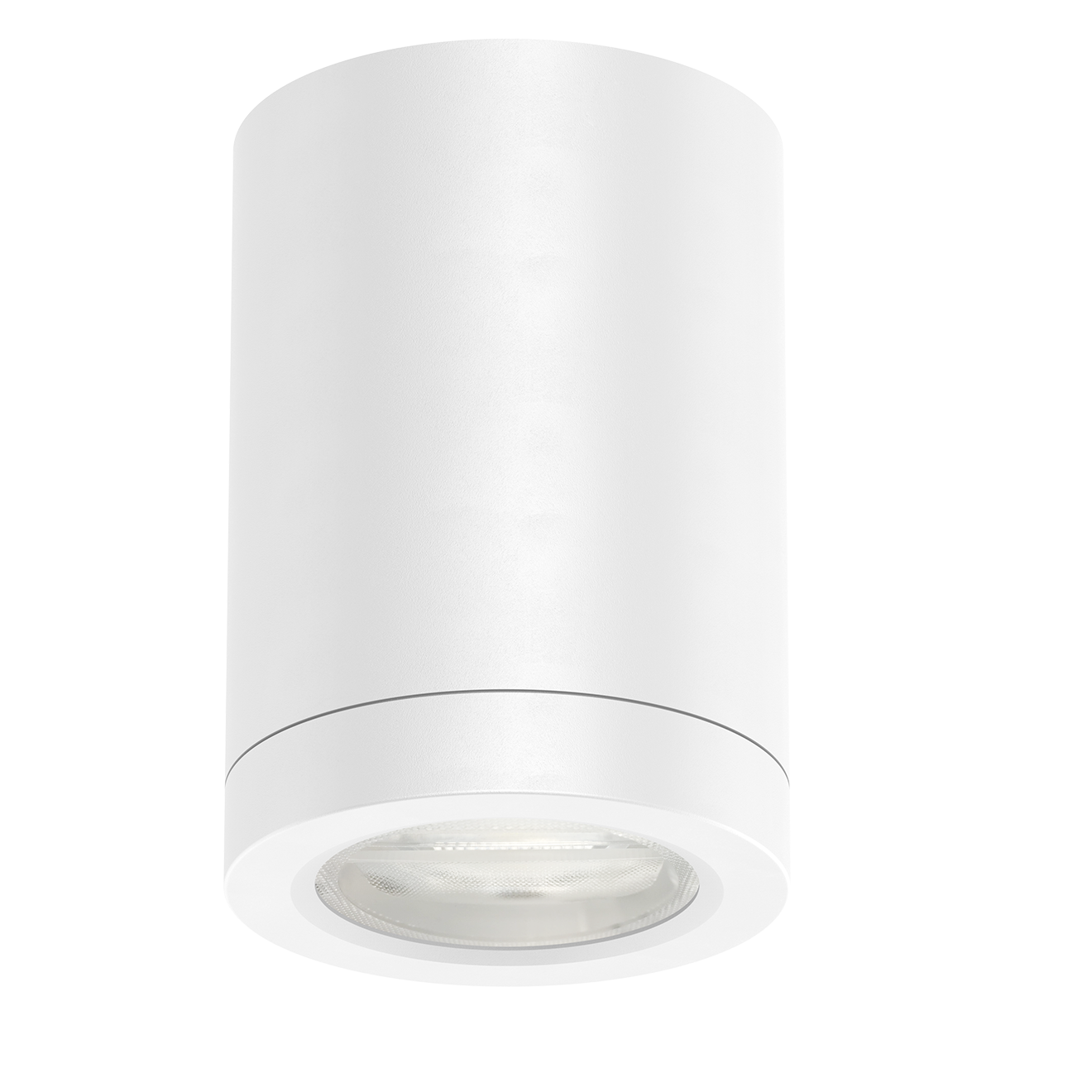

The Arcadia L surface-mounted LED spotlight is a plain 100 x 70 mm cylinder fixed straight to the ceiling, whose character changes with interchangeable optics. Interior designers and electricians use it where there is no plenum to recess into, but the scheme still calls for controlled accent or ambient light in homes, shops and offices.

Benefits

• Five optics on one body: medium, wide, extra wide, wall washer or double asymmetric, for accent, general light or washing a wall.
• Faithful colour rendering: CRI 90 holds the true shade of displayed goods and of the finishes around them.
• Efficacy up to 107 lm/W: 10 W give between 933 and 1020 lm, depending on the optic fitted.
• No cut-out needed: the body sits on the ceiling, so exposed concrete and timber soffits stay intact.
• Driver included: you do not buy a separate power supply or find a place to hide it.
• Even warm light: 3000 K without patchiness, because each optic is calculated for its own beam angle.

Technical specifications of the Arcadia L LED spotlight

• Type: surface-mounted cylindrical LED spotlight
• Mounting: surface-mounted on the ceiling, indoor
• Housing material: aluminium
• Colour: white RAL 9010
• Power: 10 W
• Luminous flux: 933-1020 lm
• Luminous efficacy: 97-107 lm/W
• Available optics: medium / wide / extra wide / wall washer / double asymmetric
• Colour temperature: 3000 K
• CRI: 90
• Control: on/off
• Ingress protection: IP20
• Protection class: I
• Driver: included
• Adjustable: no
• Dimensions: 100 x 70 mm

Applications and installation

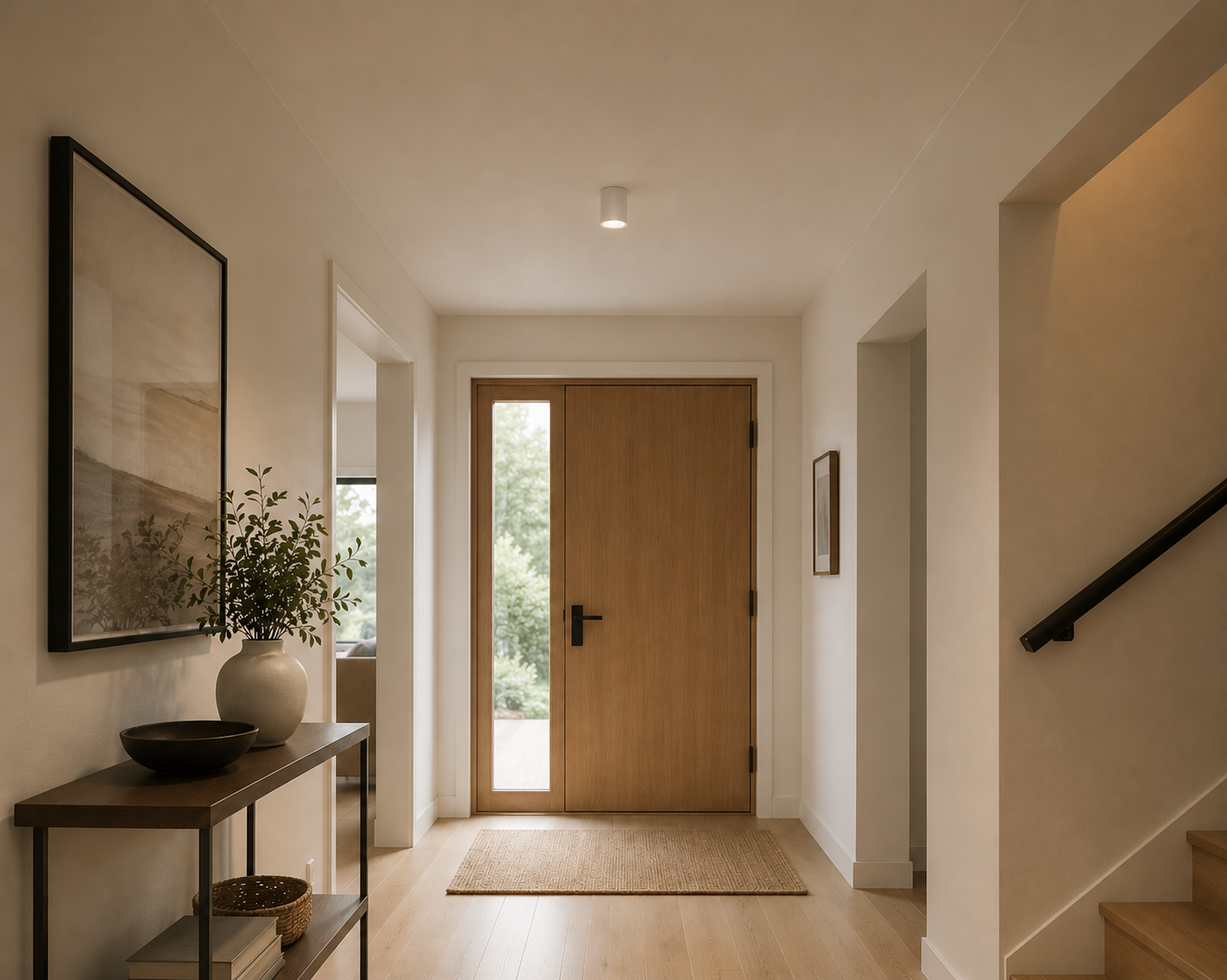

Arcadia L is usually installed in groups on the ceiling, in living rooms, hotel lobbies, showrooms, galleries and offices. The wall washer optic lights a picture wall or a run of shelving evenly, the double asymmetric optic covers two directions from one body, and the medium optic creates accents on objects. Being IP20, it belongs strictly in dry interiors. It connects directly to the mains with a protective conductor, since it is class I.

Frequently asked questions

Can I swap the optic after installation? Yes, the optics are interchangeable. You can move from a medium beam to a wall washer when the space is rearranged.

Which optic gives the most light? The wide optic, at 1020 lm and 107 lm/W. The other versions fall between 933 and 941 lm.

Is a black version available? Arcadia L is supplied in white RAL 9010. For a black finish, look at the adjustable Arcadia R.
