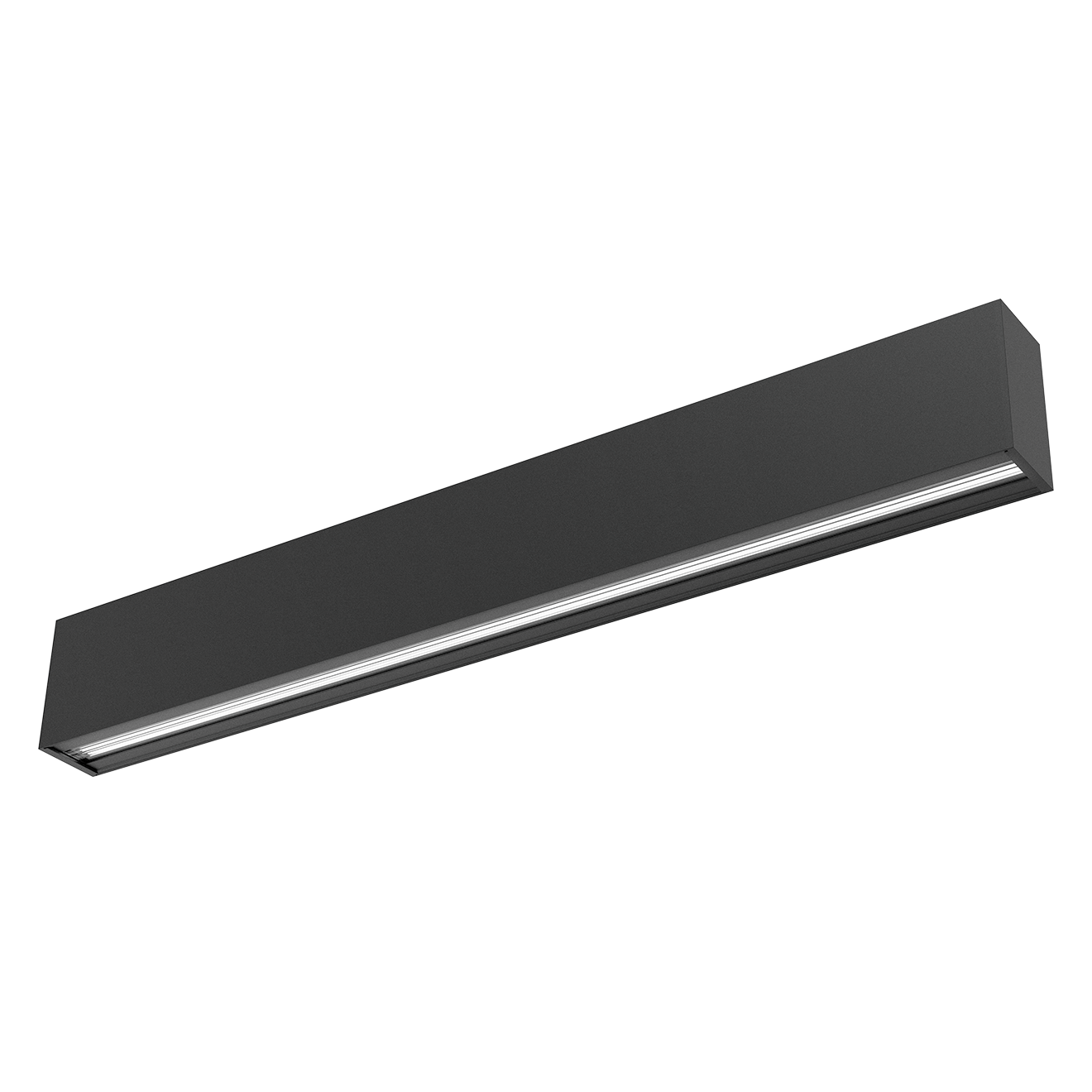

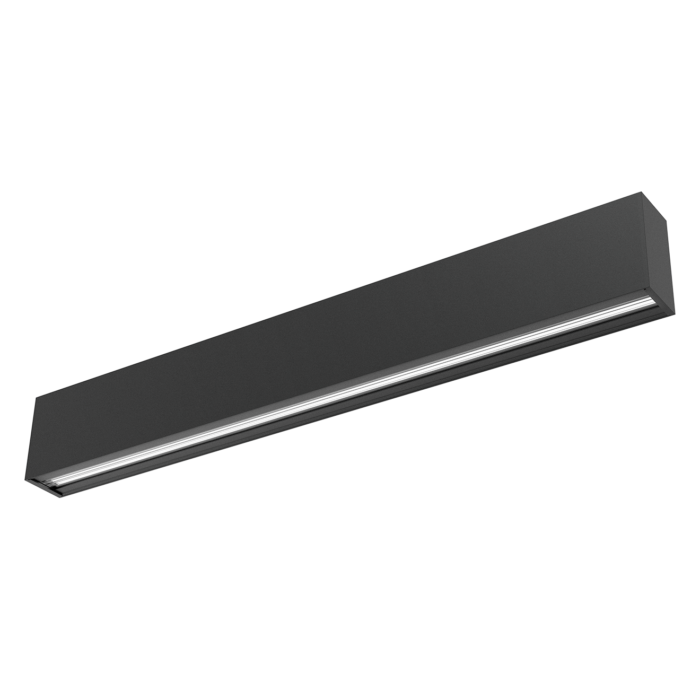

Smooth 2A Linear LED System 34W Double Asymmetric

Smooth 2A Linear LED System 34W Double Asymmetric

The Smooth 2A linear LED system is a 1500 mm ceiling profile with double asymmetric light distribution. It is written into schemes by interior architects, store designers and fit-out contractors. One profile lights two opposing vertical surfaces: facing shelf runs, corridor walls or display cases, without wasting light on the floor.

Benefits

• Two directions from one body: the double asymmetric optic sends light left and right instead of straight down.
• True colour on the shelf: CRI 90 for goods, books and displayed work.
• Length of 1500 mm: one profile covers a shelving bay or a section of corridor.
• Driver included: direct connection to 220-240 V AC, with no separate power supply.
• Discreet section: 44.8 mm wide by 83 mm high, in a black finish.
• Two colour temperatures: 3000 K for warm interiors or 4000 K for retail spaces.

Technical specifications

• Mounting type: surface ceiling mounted, with ceiling mounting bracket
• Housing material: aluminium
• Colour: RAL9010 black
• Power: 34 W
• Luminous flux: 3040 lm
• Light distribution: double asymmetric
• Colour temperature: 3000 K or 4000 K
• CRI: 90
• Control: on/off
• Ingress protection: IP20
• Insulation class: I
• Power supply: 220-240 V AC, driver included
• Dimensions: 1500×44.8×83 mm
• Adjustable: no

Applications and installation

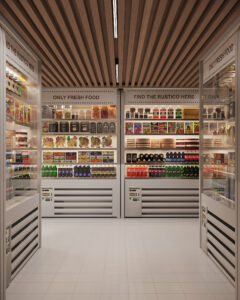

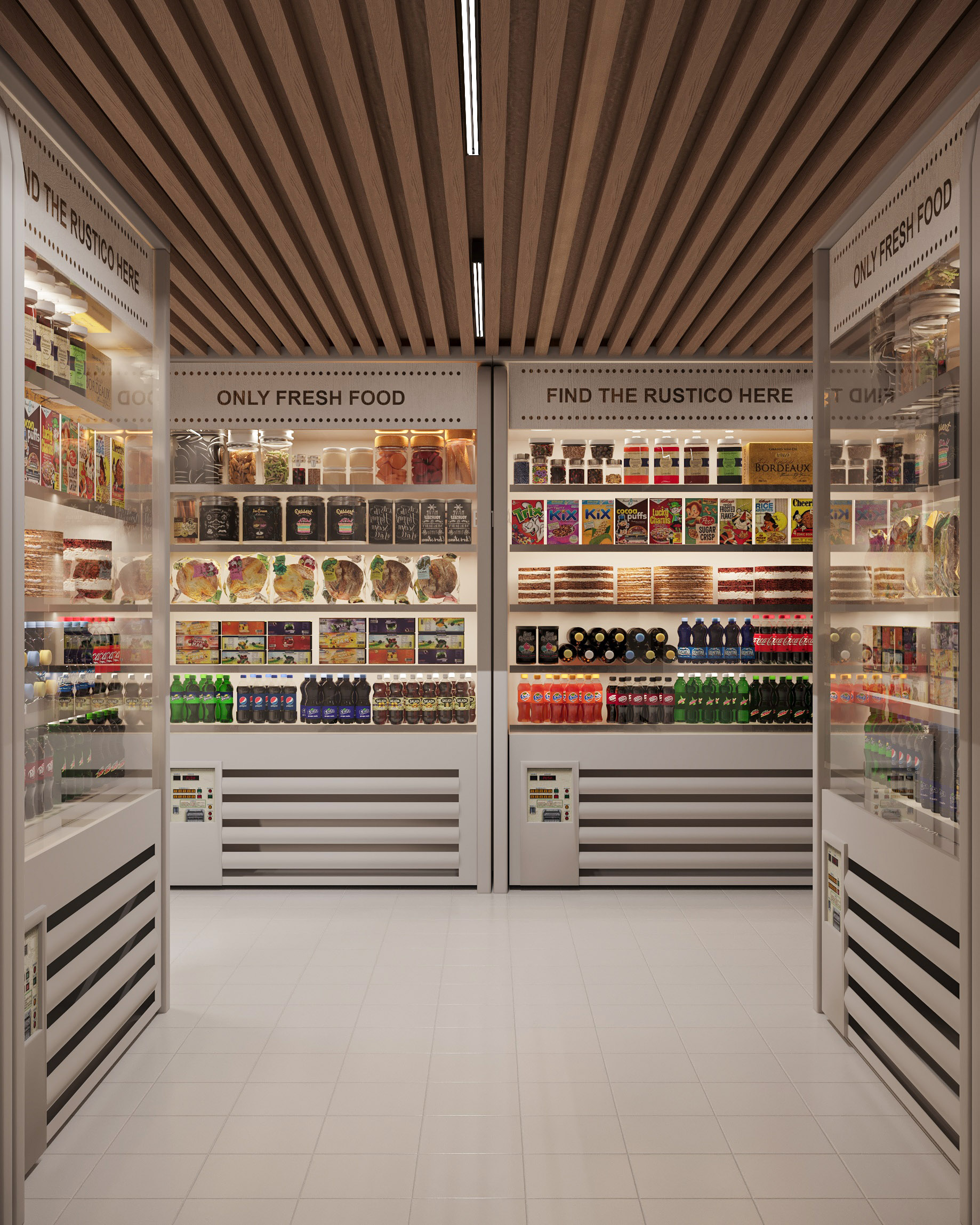

Mount the Smooth 2A linear LED system on the ceiling, centred between two vertical surfaces that must be lit equally: shelf aisles in bookshops, pharmacies and stores, hotel corridors with artwork on both walls, archives and document stores. Position the profile centrally so both surfaces receive the same level of light. Align several profiles end to end for a continuous line. Where only one wall needs light, specify the single asymmetric Smooth A version. The IP20 rating restricts the profile to dry interiors. European design and manufacture.

Frequently asked questions

What does double asymmetric distribution mean? Light is directed sideways in two opposite directions, so both walls or shelf runs are lit while the floor stays neutral.

Is an external driver needed? No. The power supply is included and the profile connects directly to 220-240 V AC.

Can it be suspended? The catalogue accessory is the ceiling mounting bracket. Ask our team about other mounting methods.
