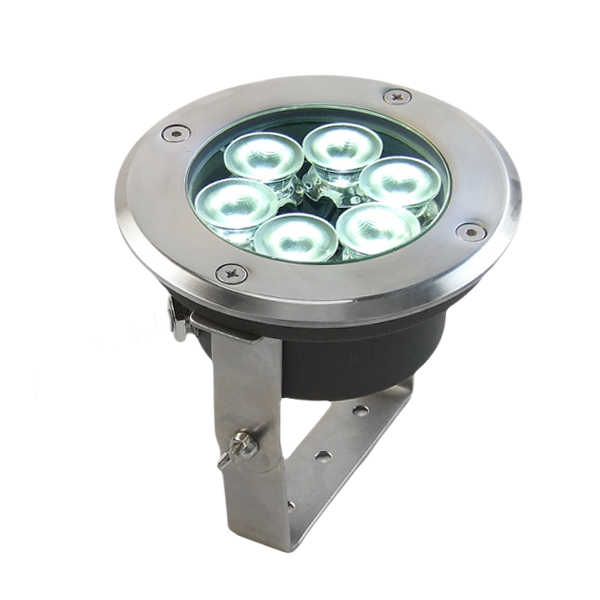

Saturn Adjustable RGB DMX LED Floodlight 6 LEDs

Saturn Adjustable RGB DMX LED Floodlight 6 LEDs

The Saturn adjustable RGB DMX LED floodlight with 6 LEDs sits between the compact 3-LED model and the 24-LED unit of the same series. Facility managers and landscape contractors choose it when one LED per colour is not enough for mature trees or mid-sized architectural features.

Benefits of the Saturn adjustable RGB DMX floodlight

• Double the base model: 2 red, 2 green and 2 blue LEDs deliver more intensity with the same precise aiming.
• Stable colour across the scheme: wavelengths of 650, 523 and 470 nm run through the whole Saturn series, so mixing models creates no shade differences.
• Direct connection to the DMX line: the integrated driver removes the separate control box.
• Sealed against dust and temporary immersion: IP67 suits ground mounting or positions near irrigated surfaces.
• Weight of 1 kg: light enough for spikes and small brackets, stable enough in wind.
• Four beam options: wide, medium, narrow or omnidirectional, selected when ordering.

Technical specifications

• Luminaire type: adjustable RGB floodlight, Saturn series
• Number of LEDs: 6 (2 x red, 2 x green, 2 x blue)
• Light source: OSRAM LEDs
• LED colour: red 650 nm, green 523 nm, blue 470 nm
• Standard supply: 230V AC, 50Hz
• Optional supply: 12-24V DC power supply
• DMX driver: included, inside the housing
• Beam (configurable): wide, medium, narrow, omnidirectional
• Ingress protection: IP67
• Weight: 1.0 kg
• Use: outdoor
• Markings: CE, F

Applications and installation

This floodlight is intended for commercial, residential and public applications: gardens, parks, access routes, architectural lighting and general accent light. Mount it on the adjustable bracket at ground level or on a wall, then connect it to a DMX controller together with the other RGB units in the project. The F marking allows fixing on normally flammable surfaces. IP67 protection handles dust and wash-down water outdoors. The luminaire is designed and produced in Europe.

Frequently asked questions

When should I choose 6 LEDs instead of 3? When the lit object is larger or further away. For mature trees or columns, 6 LEDs give a more suitable intensity.

Does the unit include the DMX driver? Yes, the driver is fitted inside the housing. You only need the supply and the DMX line.

Is there a 12-24V DC version? Yes, on request. The standard version runs on 230V AC at 50Hz.
