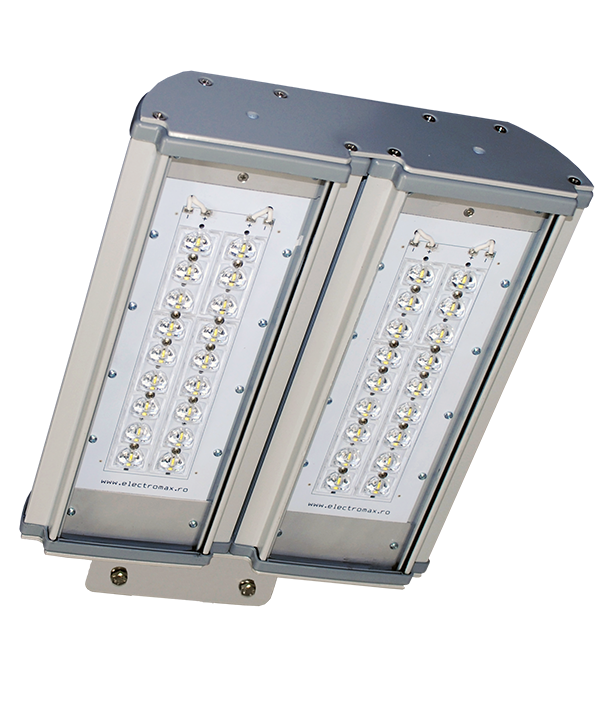

Proton SP II Street LED Floodlight 36 LEDs 90-120W

Proton SP II Street LED Floodlight 36 LEDs 90-120W

The Proton SP II street LED floodlight with 36 LEDs is the strongest model in the series. It draws 90-120 W. It answers municipalities and car park operators with wide roads or long pole spacing. You gain flux without extra luminaires. The body carries approval for outdoor and indoor duty.

Benefits

• Highest output in the SP II series: 36 high power OSRAM LEDs at minimum 110 lm/W.
• Configurable power of 90-120 W, so you match the luminaire to the road class.
• Elliptical asymmetric distribution: dedicated lenses stretch the light patch along the street.
• Rated LED life of 100,000 hours, which keeps maintenance visits rare.
• Sealed and robust: IP66, IK10 and a UV protected polycarbonate diffuser, a sound combination on dusty sites.
• Kind to the network: power factor above 0.95, harmonic distortion below 20%, driver included.

Technical specifications

• Housing material: electrostatically powder coated aluminium
• Diffuser: clear polycarbonate, UV protected
• Housing colour: grey (standard)
• Number of LEDs: 36
• Total power: 90-120 W
• Light source: high power OSRAM LEDs, 100,000 hours
• Luminous efficacy: minimum 110 lm/W
• Colour rendering index (CRI): 80 for neutral white, 70 for cool white
• LED colour (configurable): neutral white 4000 K or cool white 5000 K
• Focusing: elliptical, elliptical asymmetric beam
• Supply: 90-230 V AC, 50-60 Hz, driver built into the housing
• Electrical insulation class: I
• Power factor: above 0.95
• Total harmonic distortion: below 20%
• Ingress protection: IP66
• Impact resistance: IK10
• Operating temperature: -20 degrees C to +40 degrees C
• Use: outdoor and indoor
• Dimensions: 350 x 300 x 110 mm
• Weight: 3.5 kg
• Markings: CE, F (mounting on normally flammable surfaces)

Applications and installation

The product covers street lighting, car park lighting and perimeter lighting in residential, commercial and public projects. You mount it on a vertical pole, on a bracket or on a flat surface, including normally flammable surfaces. Because it also carries indoor approval, the luminaire works under high warehouse ceilings and inside covered car parks. Allow for the 350 x 300 x 110 mm body when you size the bracket.

Frequently asked questions

How does it differ from the 24 LED SP II model? This version carries 36 LEDs and 90-120 W, against 24 LEDs and 60-90 W. The housing is larger, at 350 x 300 x 110 mm.

Does it suit areas exposed to vandalism? The IK10 rating and the UV protected polycarbonate diffuser give it impact strength and resistance to ageing.

Which colour temperature works for a car park? Neutral white 4000 K with CRI 80 renders vehicle colours well and reads better on surveillance cameras.
