Niagara Stainless Steel Pool LED Floodlight 12-54 LEDs IP68

Niagara Stainless Steel Pool LED Floodlight 12-54 LEDs IP68

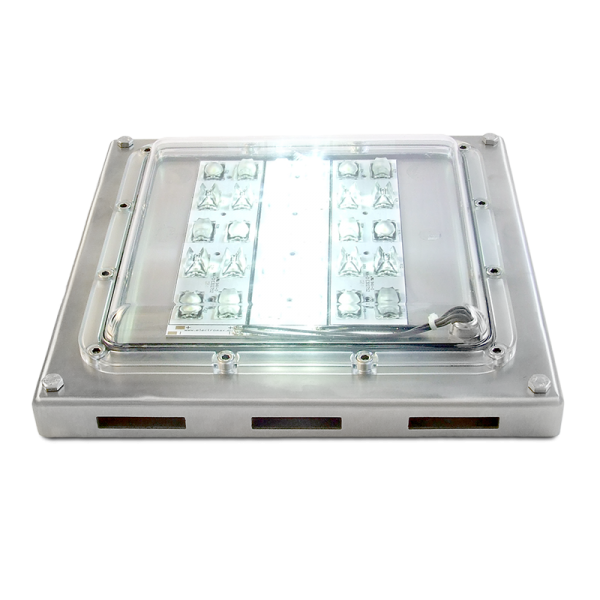

The Niagara pool LED floodlight is a submersible stainless steel luminaire rated IP68. Pool builders and villa owners choose it for fibreglass, concrete and metal basins, and for ornamental fountains. You pick 12, 24, 36 or 54 OSRAM LEDs to match the size of the water body you light.

Benefits of the Niagara pool LED floodlight

• Four output steps: 12, 24, 36 or 54 OSRAM LEDs of 1 W give you 12 W to 54 W from the same body.
• Surface mounting, ideal for retrofit: the unit fixes to the pool wall without a recessed niche, whatever the basin material.
• IP68 and IK10: the optical compartment is sealed for permanent immersion and the polycarbonate diffuser resists impact.
• Natural stainless steel body: the housing does not corrode in contact with treated pool water.
• Colour and beam control: warm, neutral or cool white plus red, green, blue and orange, with wide, medium, narrow or elliptical focus.
• Safety extra-low voltage: 12-24 V DC, insulation class III, with the driver placed outside the water.

Technical specifications

• Housing material: stainless steel
• Housing colour: natural stainless steel, standard
• Diffuser: clear impact-resistant polycarbonate
• Number of LEDs (option): 12, 24, 36 or 54, OSRAM
• Total power: 12 W, 24 W, 36 W or 54 W
• LED colour (option): warm white 3000 K, neutral white 4000 K, cool white 5000 K, red 650 nm, green 523 nm, blue 470 nm, orange 617 nm
• Beam focus (option): wide, medium, narrow, elliptical
• White LED output: min. 250 lm/LED cool white, min. 200 lm/LED warm white
• Colour rendering index: 80 for neutral and warm white, 70 for cool white
• Supply: standard 12-24 V DC
• Driver: external
• Cable length: 2 m
• Electrical insulation class: III
• Ingress protection: IP68 (optical compartment)
• Impact resistance: IK10
• Operating temperature: -20 degrees C to +40 degrees C
• Dimensions: 230 x 230 x 49 mm
• Weight: 1.6 kg
• Mounting: surface, on fibreglass, concrete or metal pools
• Markings: CE, F-Mark, outdoor use

Applications and installation

Use the luminaire for submersible lighting in swimming pools and in ornamental fountains. Choose 12 or 24 LEDs for small basins. Choose 36 or 54 LEDs for large pools or for fountains with a high jet. Mount the external 12-24 V DC driver in a dry service area. The 2 m cable leaves the basin and lands in a junction box. The stainless steel body suits chlorinated and treated water on villa and hotel projects.

Frequently asked questions

Can you fit it to an existing pool? Yes. Mounting is on the surface, without a niche, so the unit suits retrofit on fibreglass, concrete or metal pools.

Is the driver supplied? No, the driver is external. The luminaire runs at 12-24 V DC in insulation class III.

How thick is the body? Only 49 mm, in a 230 x 230 mm format weighing 1.6 kg.
