Description
| Feature | Specification |
|---|---|

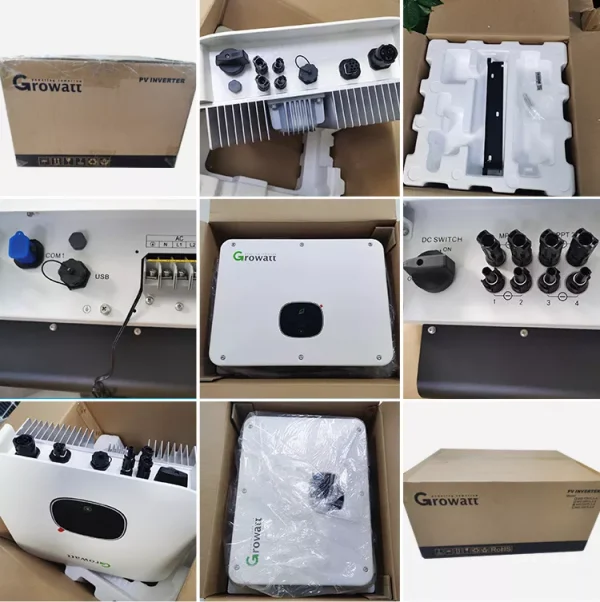

| Model | Growatt MID 20KTL3‑X |
| Inverter Type | Three‑phase on‑grid (commercial/industrial) |
| Max Recommended PV Power | 26,000 W (STC) |
| Max DC Input Voltage | 1,100 V |
| Start Voltage | 250 V |
| Nominal DC Voltage | 580 V |
| MPPT Voltage Range | 200–1,000 V |
| Number of MPPT Trackers | 2 |
| Strings per MPPT | 2 |
| Max Input Current per MPPT | 25–27 A |
| Max Short-Circuit Current/MPPT | ~32 A |
| AC Nominal Output Power | 20,000 W |
| Max AC Apparent Power | ~22,000 VA |
| Nominal AC Voltage / Grid Range | 230 V / 400 V (340–440 V) |
| Grid Frequency Range | 50/60 Hz (45–65 Hz) |
| Max Output Current | ~31.9 A |
| Adjustable Power Factor | From 0.8 leading to 0.8 lagging |
| THDi | < 3 % |
| Max Efficiency | ~98.75 % |
| European Efficiency | ~98.6 % |
| MPPT Efficiency | ~99.9 % |
| Protection Features | DC/AC Type II SPD, DC reverse polarity, DC switch, ground-fault, AC short-circuit, anti-islanding, string monitoring; AFCI optional |
| Display & Connectivity | OLED + touch key display, RS‑485, USB; Wi‑Fi/GPRS/4G optional |
| Cooling Method | Smart air cooling (fan) |
| Design | Transformerless |
| Protection Rating | IP65 |
| Dimensions (W × H × D) | ~525 × 395 × 222 mm |
| Weight | ~23 kg |
| Noise Emission (Typical) | ≤ 40 dB(A) |
| Self-Consumption (Night) | < 1 W |
| Operating Altitude | Up to 4,000 m |
| Operating Temperature Range | –25 °C to +60 °C (derating above +45 °C) |
| Humidity Tolerance | 0–100 % relative humidity |
| Warranty | 5 years standard (extendable) |
| Key Highlights | Dual MPPT, high efficiency, export control, compact & lightweight, intuitive OLED UI |
A solar inverter made for medium- to large-scale solar power systems is the Growatt MID 20KTL3-X. It has some qualities that enable it to transform solar energy into useful power effectively. You can download growatt mid 20ktl3-x datasheet in our site.
- 3 phase inverter2 MPPT trackers
- Ten year guarantee
- high efficiency
- and extremely quiet inverters are all added benefits
Additional information
| Weight | 23 kg |
|---|---|
| Dimensions | 52,5 × 39,5 × 22,2 cm |
| Brand | Growatt |
