Description

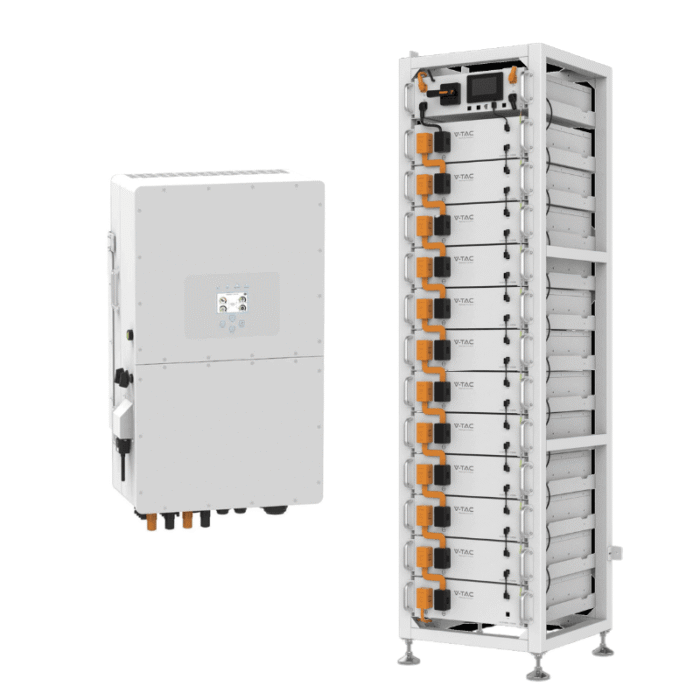

The 50kW DEYE inverter, combined with the Oliter 60kWh HV storage system, is an advanced solution for energy management in large commercial and residential applications. This system provides intelligent and efficient solar energy management, providing both a reliable energy source and the storage capacity to meet fluctuating energy demands.
Technical data
- How to install: Rackable
- Battery type: LiFePO4 (LFP) – long life cycle technology
- Energy per module: 5.12 kWh
- Rated module voltage: 51,2 V
- Capacity per module: 100 Ah
- Total system capacity (12 modules): 61.44 kWh
- Usable capacity: 49.15 kWh (80% DOD – Depth of Discharge)
- System operating voltage: 556,8 – 681,6 V
- Recommended charging/discharging current: 50 A
- Total weight: 632.5 kg
- Dimensions: 580 mm x 584.5 mm x 2162 mm
- Protection: IP20 – for protected indoor environments
- Monitoring: System voltage, current, module/cell temperature
- Life expectancy: ≥6000 cycles at 70% EOL
- Operating temperature: 0°C to 45°C (charging) and -10°C to 55°C (discharging)
- Storage temperature: Between 0°C and 35°C
Product benefits
- Superior safety and efficiency: LiFePO4 batteries are renowned for their safety and stability, with a long lifespan and increased resistance to extreme temperatures.
- High durability: With over 6000 charge/discharge cycles, the system delivers consistent long-term performance.
- Significant usable capacity: With a nominal capacity of 61.44 kWh and a usable capacity of 49.15 kWh, this system offers a considerable energy reserve for critical applications.
- Smart monitoring: CAN communication and advanced system parameter monitoring ensure efficient, real-time energy management.
- Modularity: The system is rack-mountable and can be expanded or reconfigured as needed, making it ideal for variable power needs.
Package contents
- DEYE inverter 50kW – Reliable energy converter for utilizing stored energy.
- 12 OHR60k-100 storage modules – LiFePO4 (LFP) batteries with a total capacity of 60kWh.
- Cables and connectors – For easy and secure connection between modules and inverter.
- User manual – Installation and operation guide.
Conclusion
Oliter’s DEYE 50kW + 60kWh HV 60kWh HV Storage Inverter System is a reliable solution for those looking for efficient solar energy management, providing the optimal balance between storage, security and long-term performance.
Specification
General
| Weight | 633 κ. |
|---|---|
| Dimensions | 58 × 58,4 × 216,2 cm |
| Connection | BMS-Can |
| Maximum DC load current | 100A |
| Parallel function | From |
| Network injection | From |
| Power | 50KW |
| Max PV Power | 65000W |
| PV Max VOC | 1000VDC |
| MPPT voltage | 150-850VDC |
| Tip | Hybrid
,Triphazat |
| Battery voltage | 556.8-681.6V |
| Accumulators accepted | Gel
,Litigation ,Lead-Acid |
| Brand | Deye |
Additional information
| Weight | 633 kg |
|---|---|
| Dimensions | 58 × 58,4 × 216,2 cm |
| Brand | Deye |
