Description

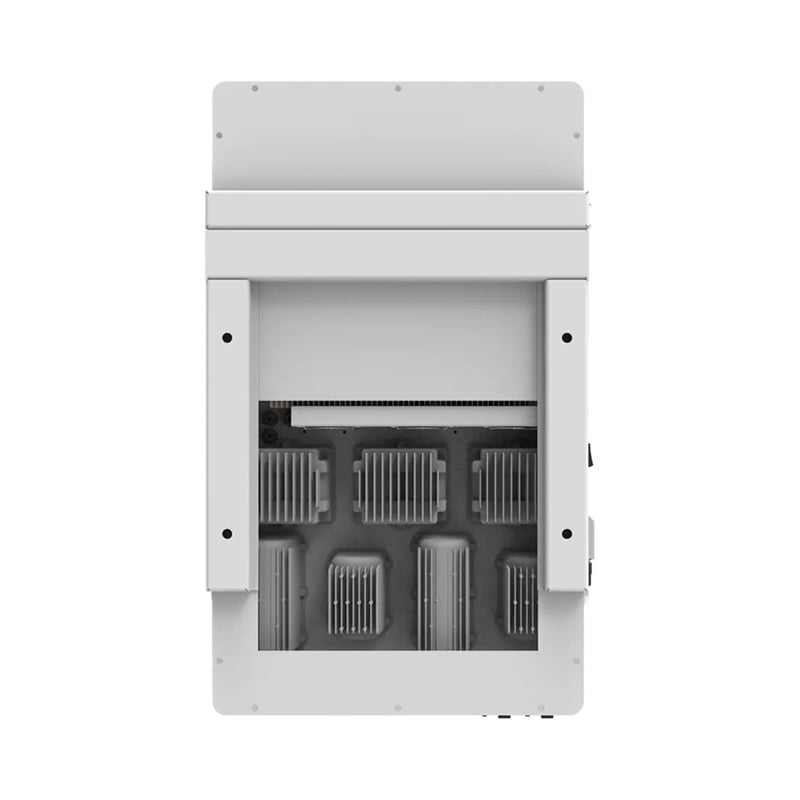

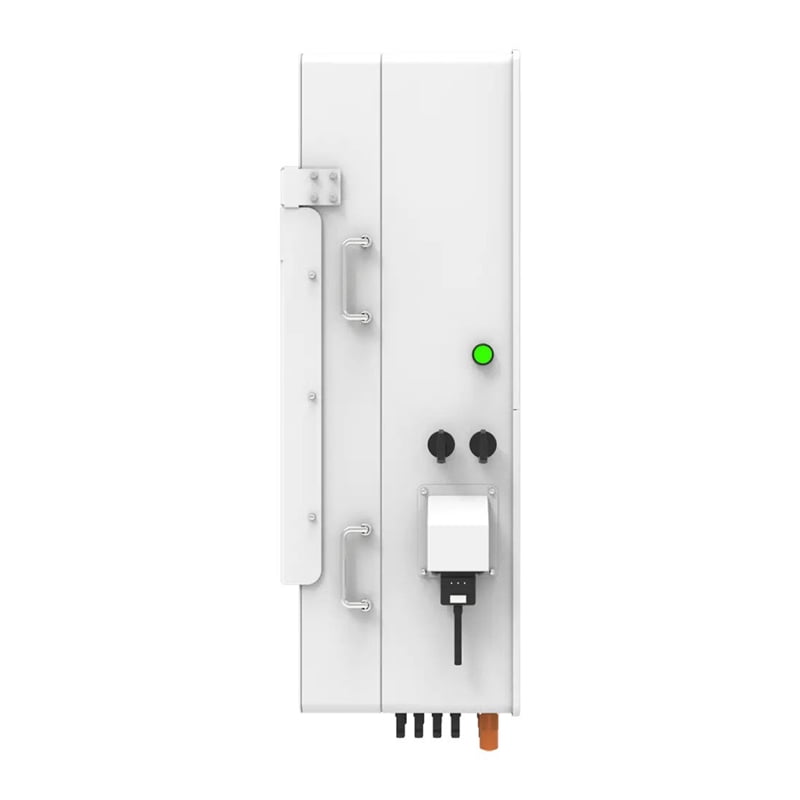

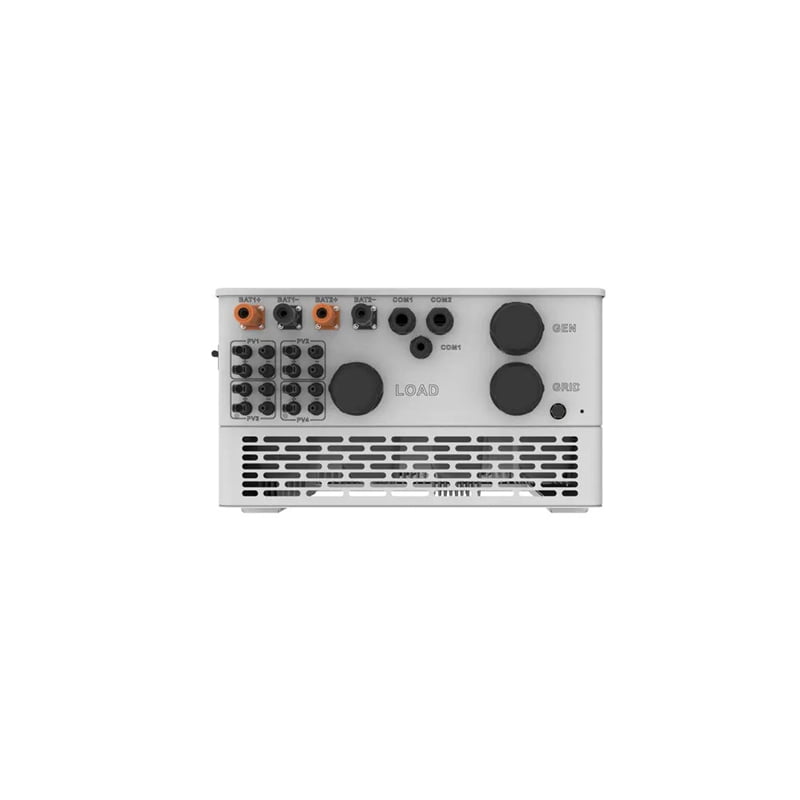

The Deye SUN-40K-SG01HP3-EU-BM4 is a 40 kW three-phase high-voltage (HV) hybrid inverter designed for commercial and industrial solar installations, offering versatile on-grid/off-grid functionality and high efficiency.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | SUN-40K-SG01HP3-EU-BM4 |
| Rated AC Output Power | 40000 W (40 kW) |
| Max. PV Input Power | 52000 W (52 kWp) |
| Max. DC Input Voltage | 1000 V |
| MPPT Voltage Range | 150–850 V |
| Number of MPPTs | 4 |
| Battery Voltage Range | 160–800 V (high voltage) |
| Battery Type | Lithium-ion (self-adaptation to BMS) |
| Max. Charging/Discharging Current | 100 A (50A + 50A across two inputs) |
| Max. Efficiency | 97.6% |
| Protection Rating | IP65 |
| Dimensions (WxHxD) | 527 x 894 x 294 mm (without connectors) |
| Weight | 80 kg |
Additional information
| Weight | 80 kg |
|---|---|
| Dimensions | 52,7 × 89,4 × 29,4 cm |
| Brand | Deye |
