Galaxy 2 Adjustable Linear LED Luminaire 3.2-5.6W Outdoor

Galaxy 2 Adjustable Linear LED Luminaire 3.2-5.6W Outdoor

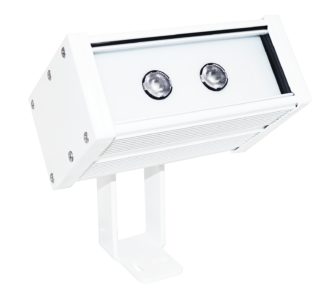

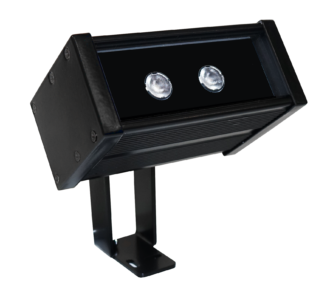

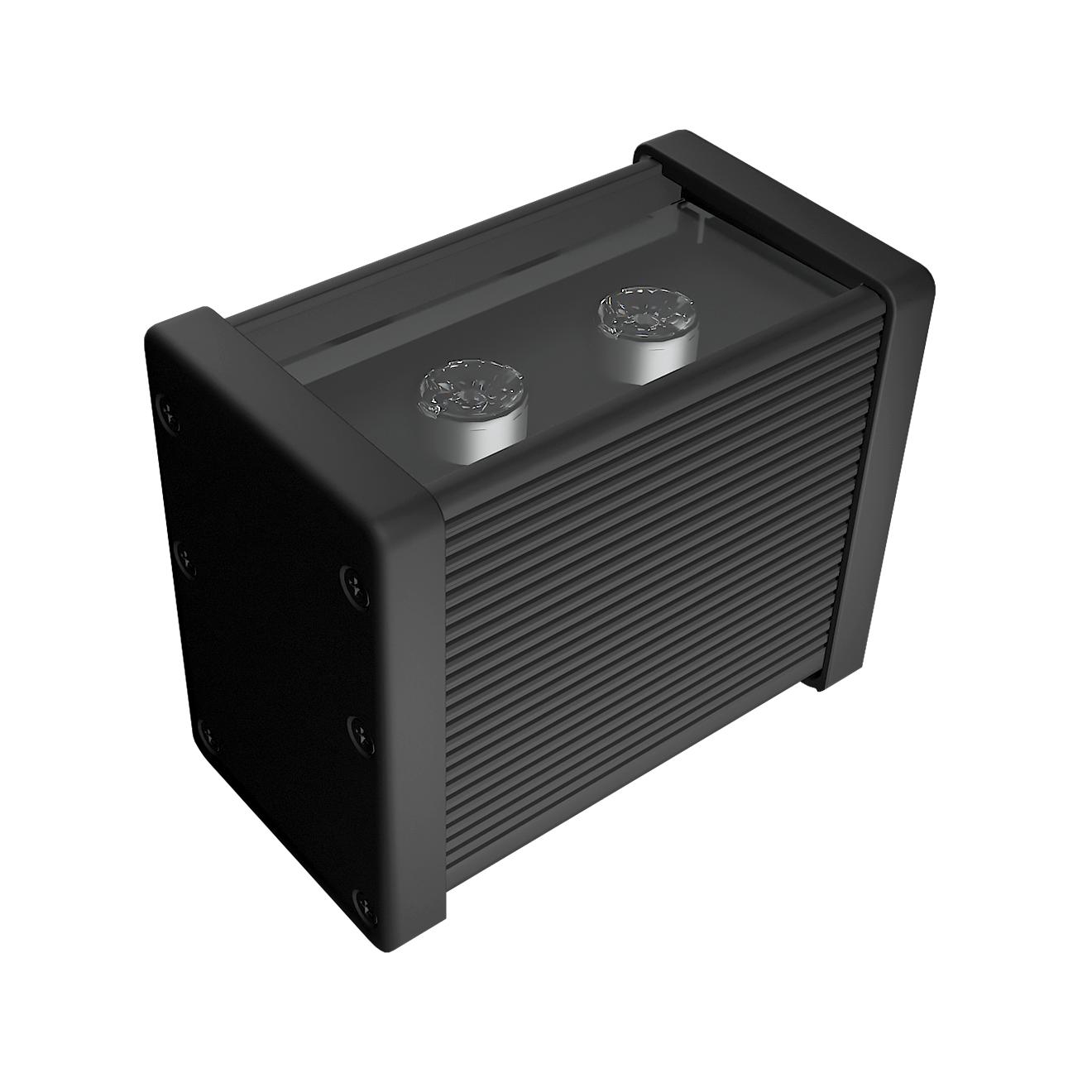

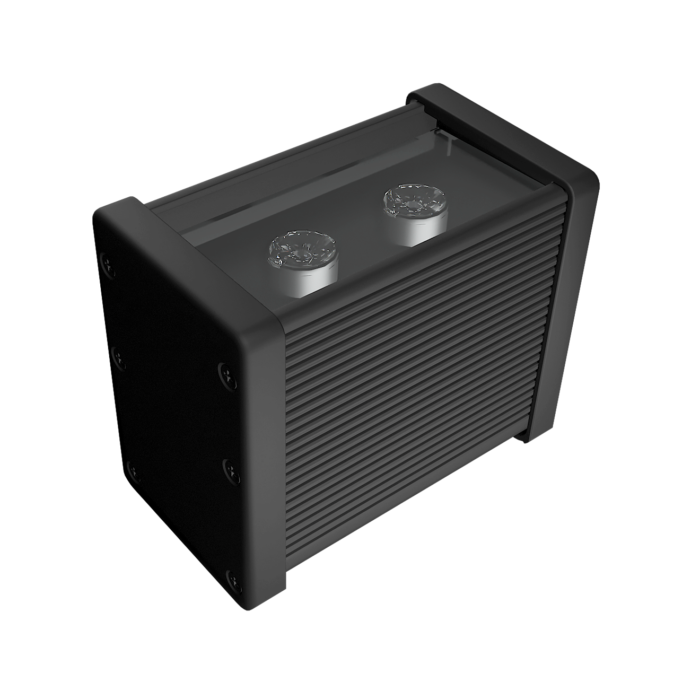

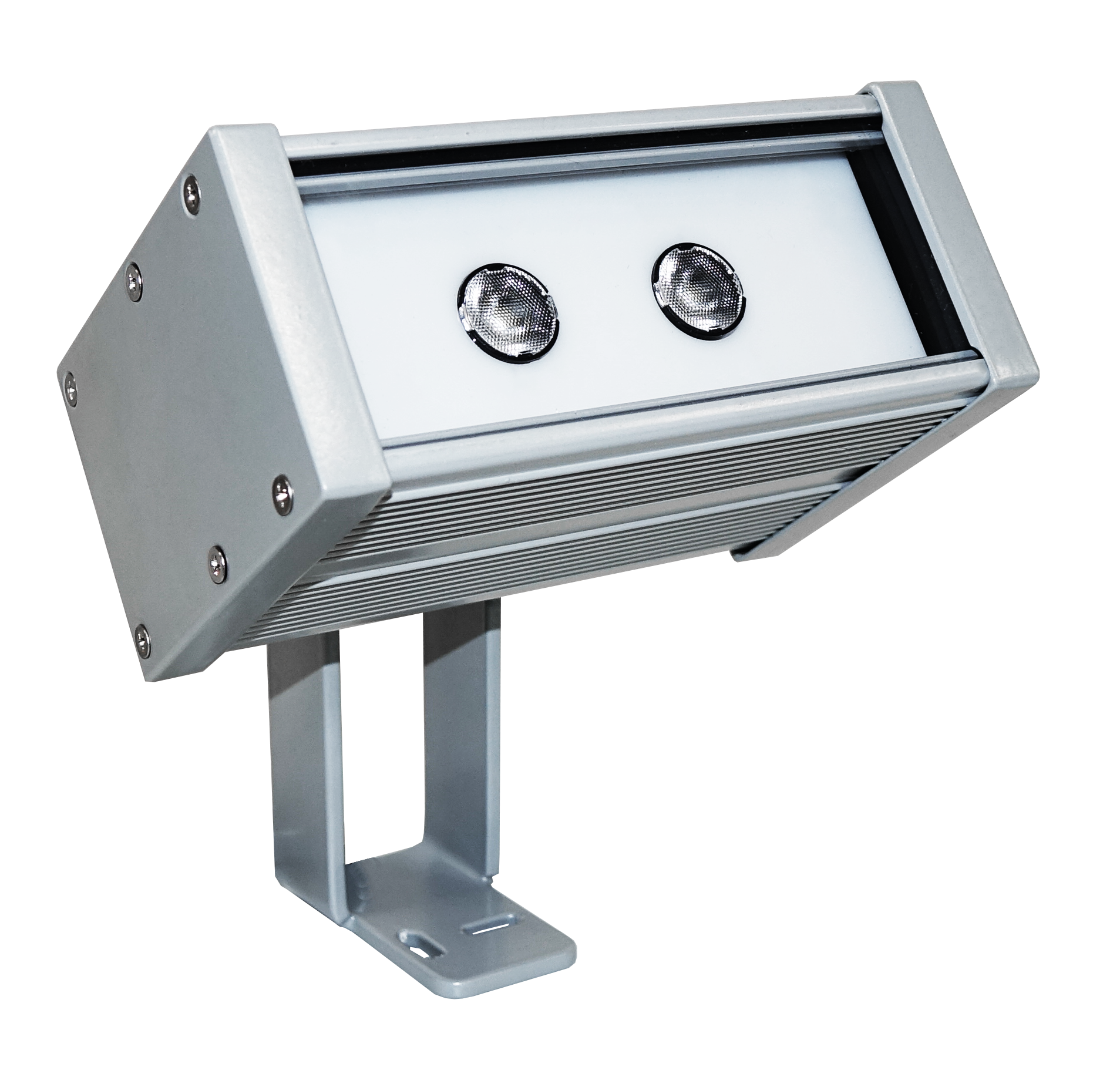

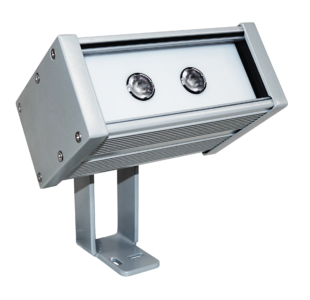

The Galaxy 2 adjustable linear LED luminaire is a compact exterior projector of 3.2 W or 5.6 W, with an extruded aluminium housing rated IP66/IK10. Architects and contractors use it to place accents on facades, walls and planting, with an aiming bracket and a driver already inside the body.

Benefits

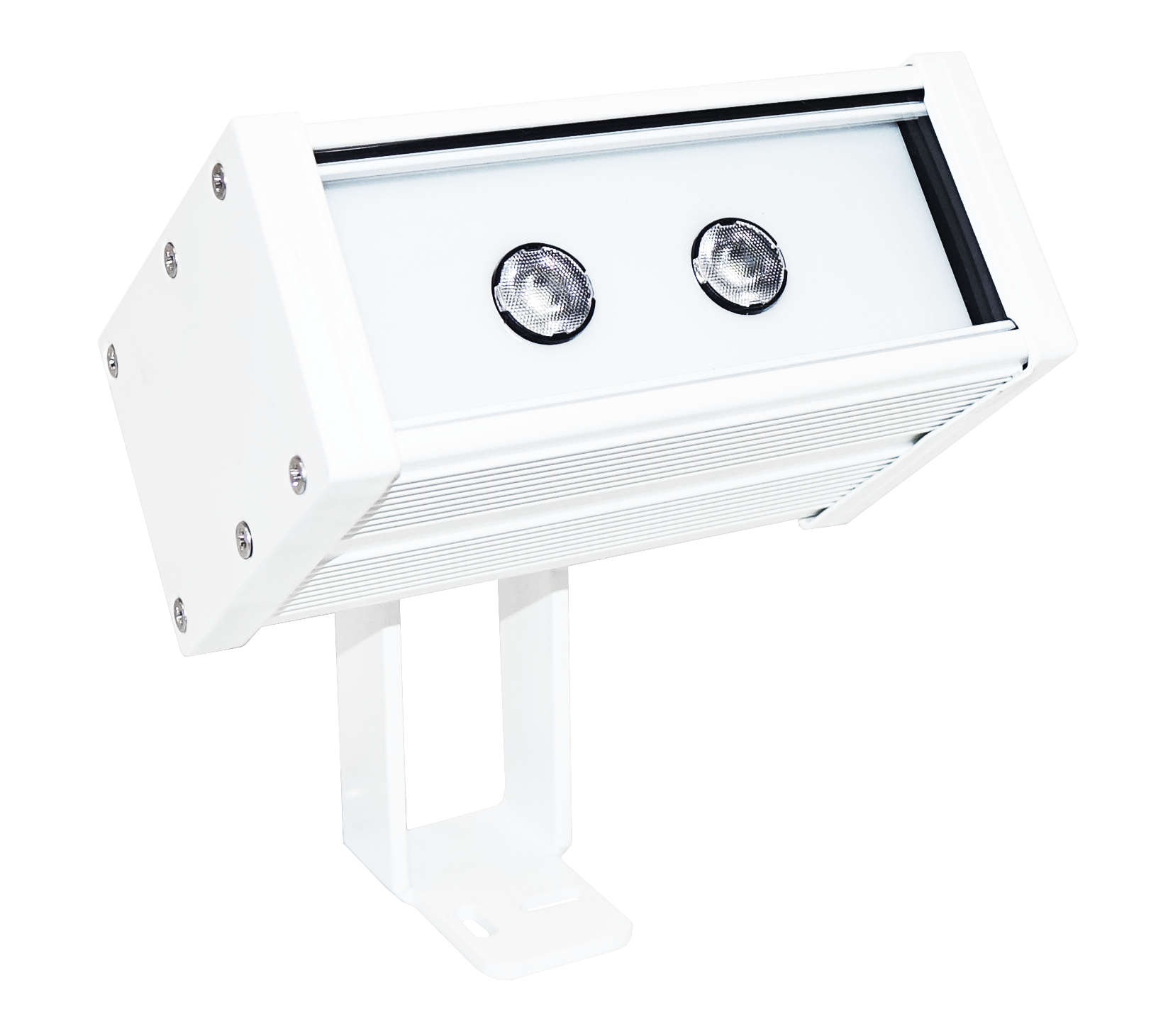

• Precise aiming: the BK bracket rotates from -50 to +90 degrees, the standard bracket from -90 to +90 degrees.
• Sealed for outdoor sites: IP66 and IK10 keep dust, water and impact away from the electronics.
• Six optics: wide, medium, narrow, elliptical, wall grazing and wall washer suit different surfaces.
• Efficacy up to 116 lm/W: a small load for a flux of up to 632 lm per unit.
• No external driver: the transformer sits in the housing and the luminaire connects straight to 220-240 V AC.
• Control options: choose DALI, 1-10V or on/off; RGB with DMX and single-colour versions come on request.

Technical specifications

• Mounting: surface mounted on ceiling, floor or wall, adjustable bracket
• Material: extruded aluminium; metal end caps (BK bracket) or plastic (standard bracket)

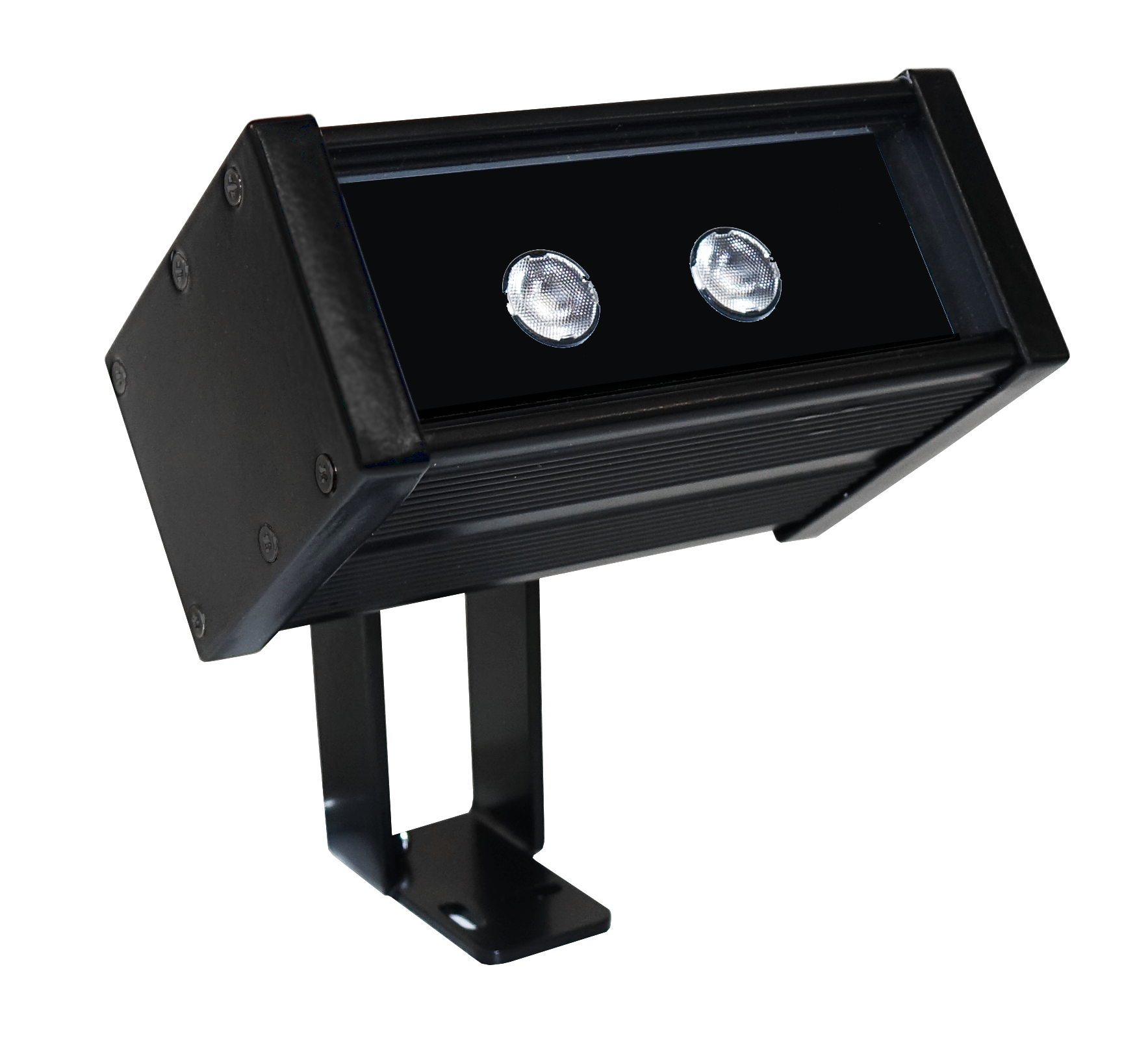

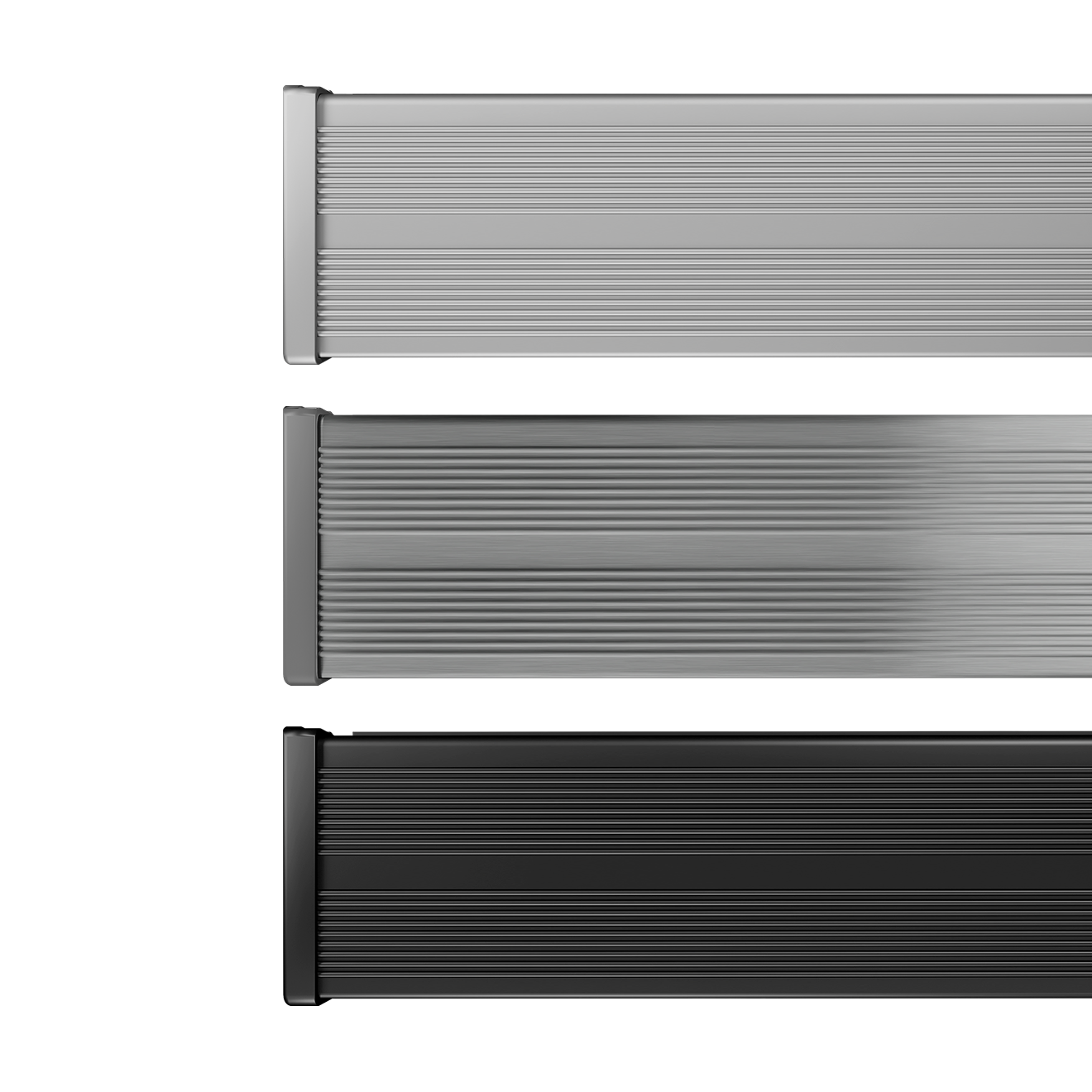

• Finishes: RAL7040 anodised aluminium silver, RAL7040 electrostatically coated grey, anodised black
• Power: 3.2 W or 5.6 W
• Luminous flux: 334-632 lm
• Luminous efficacy: 101-116 lm/W
• Optics: wide, medium, narrow, elliptical, wall grazing, wall washer
• Colour temperature: 3000 K, 4000 K or 5000 K
• CRI: 80
• Control: on/off, 1-10V, DALI; RGB with DMX on request
• Supply: 220-240 V AC, driver inside the housing
• Ingress protection: IP66, IK10
• Insulation class: I
• Tilt range: -50 to +90 degrees (BK bracket) or -90 to +90 degrees (standard bracket)
• Dimensions: 83 x 58 x 101 mm

Applications and installation

Install the Galaxy 2 adjustable linear LED luminaire on any surface: ceiling, floor or wall. It works on facades, columns, boundary walls, steps, planters and gardens, and as accent light on signage and decorative features. The wall grazing optic reveals masonry texture, while the wall washer optic covers surfaces evenly. IP66 sealing suits dusty, humid outdoor locations. Fix the bracket first, connect to mains, then set the aiming angle. Design and manufacturing take place in Europe.

Frequently asked questions

Do I need a separate driver? No. The transformer is inside the housing and the unit connects to 220-240 V AC.

What separates the BK and standard brackets? The BK bracket has metal end caps and a -50 to +90 degrees range. The standard bracket uses plastic caps and covers -90 to +90 degrees.

Are coloured versions available? Yes. On request you can have the RGB version with DMX control, or a single colour such as red, amber, blue or green.
