Galaxy 16 Adjustable Linear LED Luminaire 21-40W Outdoor

Galaxy 16 Adjustable Linear LED Luminaire 21-40W Outdoor

The Galaxy 16 linear LED luminaire covers a generous stretch of facade or wall with a single 587 mm module. It is aimed at architectural practices, developers and contractors lighting buildings, parks and outdoor retail space. It removes the need for several small units and gives one continuous line of light, adjustable and weather resistant.

Benefits of the Galaxy 16 linear LED luminaire

• More coverage per unit: the 587 mm length cuts the number of mounting points compared with a short profile.
• Up to 5514 lm: the 40 W version with the right optic lights tall surfaces without extra luminaires.
• Efficacy up to 136 lm/W: low consumption per lumen delivered, which matters for lighting that runs all night.
• IP66 sealing and IK10 resistance: the extruded aluminium housing withstands rain, dust and knocks.

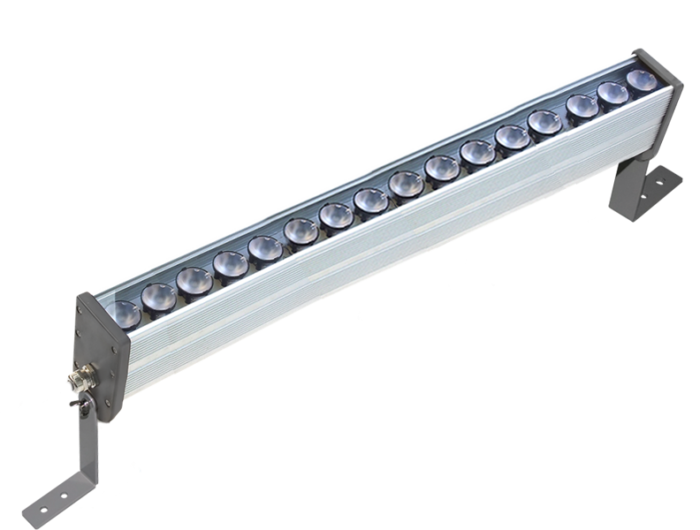

• Angular adjustment: BK bracket from -50 degrees to +90 degrees with metal end caps, or standard bracket from -90 degrees to +90 degrees with plastic end caps.
• No external driver: the transformer is in the housing and the unit connects to 220-240 V AC.

Technical specifications

• Mounting type: surface on ceiling, floor or wall, adjustable in the horizontal plane
• Housing material: extruded aluminium

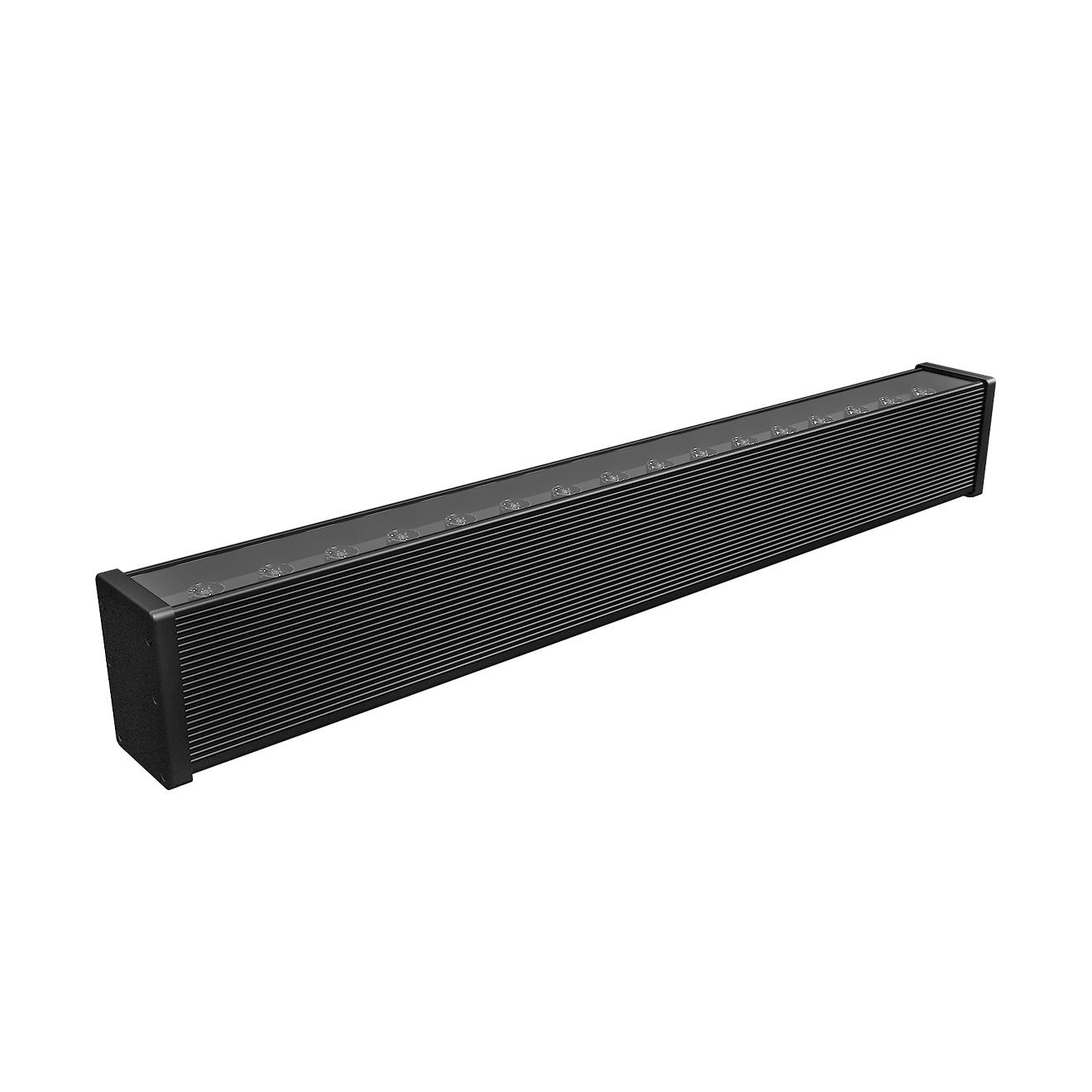

• Available colours: RAL7040 anodised silver aluminium, RAL7040 powder-coated grey, RAL9010 anodised black
• Power range: 21 W and 40 W
• Luminous flux: 2510-2944 lm (21 W), 4223-5514 lm (40 W)
• Luminous efficacy: 106-136 lm/W

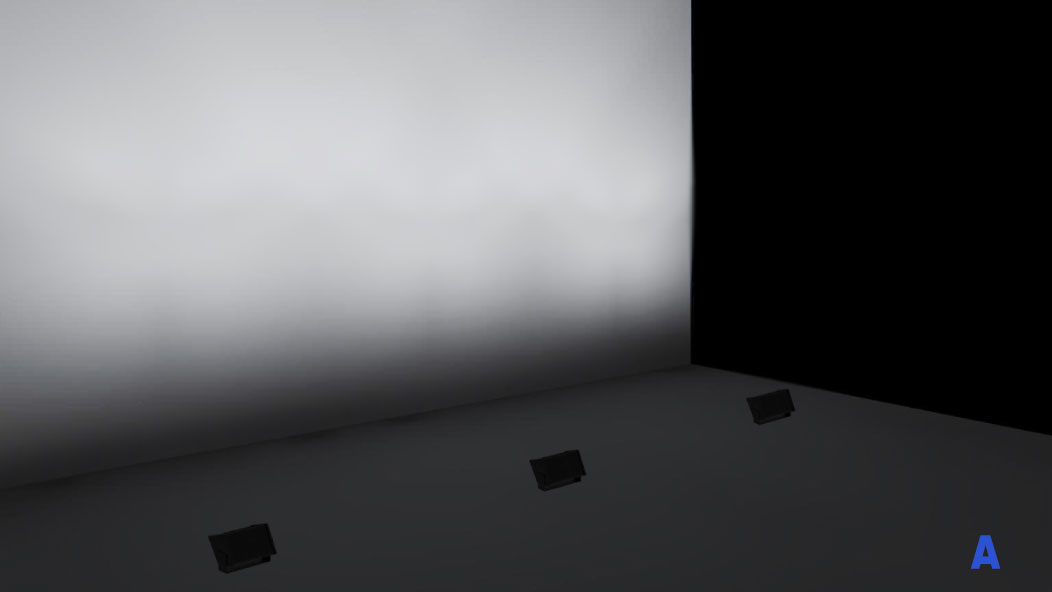

• Available optics: wide, medium, narrow, elliptical, Wall Grazing, Wall Washer
• Colour temperature: 3000 K, 4000 K, 5000 K
• Colour rendering index: CRI 80
• Control: on/off, 1-10V, DALI
• Ingress protection: IP66 / IK10
• Insulation class: I
• Supply: 220-240 V AC, driver included

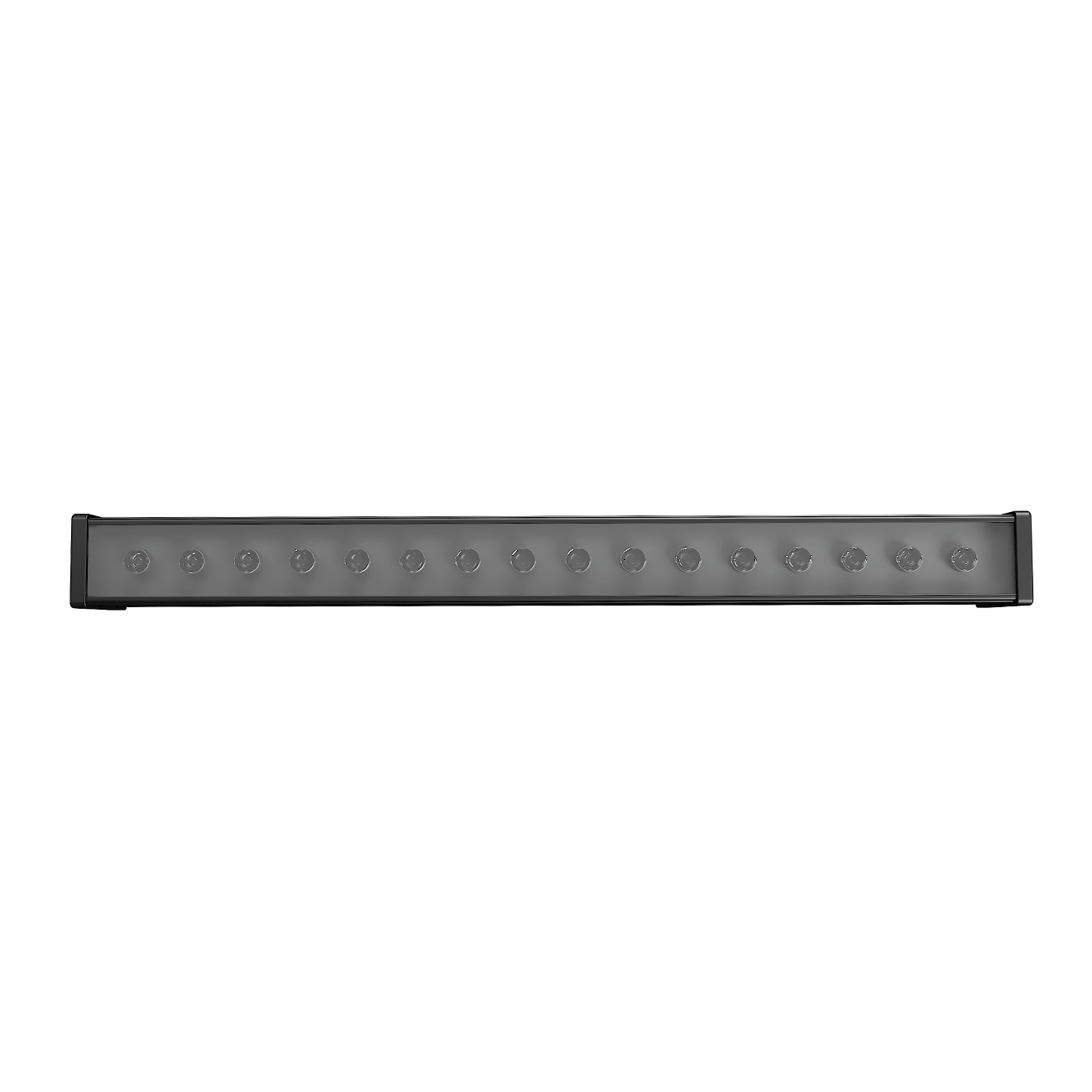

• Dimensions: 83 x 58 x 587 mm
• Accessory: adjustable fixing system

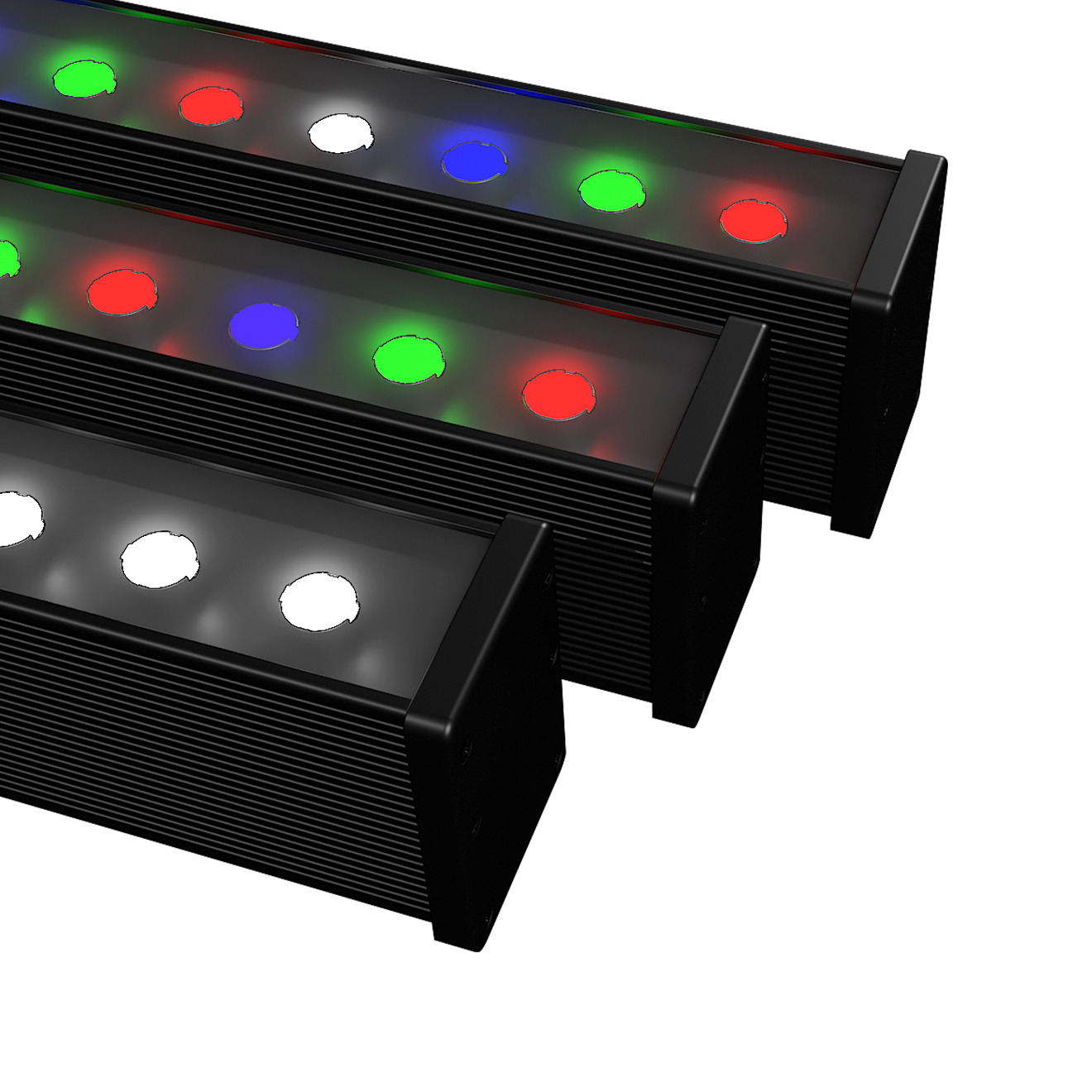

• On request: RGB version with DMX control, or single colour version (red, amber, blue, green)

Applications and installation

Use the Galaxy 16 linear LED luminaire on office, hotel and public building facades, on boundary walls, architectural fences, footbridges and landscape features. The narrow optic carries light up tall buildings. The elliptical optic spreads the beam sideways, which helps on long, low walls. Mount the unit on a ceiling, floor or wall, and integrate the DALI or 1-10V versions into central dimming systems.

Frequently asked questions

What is the output difference between 21 W and 40 W? The 21 W version delivers 2510-2944 lm and the 40 W version reaches 4223-5514 lm, depending on the optic and colour temperature.

Can it be recessed into the floor? It mounts on the surface of a floor, wall or ceiling with the adjustable fixing system. It is not a recessed luminaire.

Is an RGB version available? Yes, an RGB version with DMX control is available on request, along with single colour versions.
