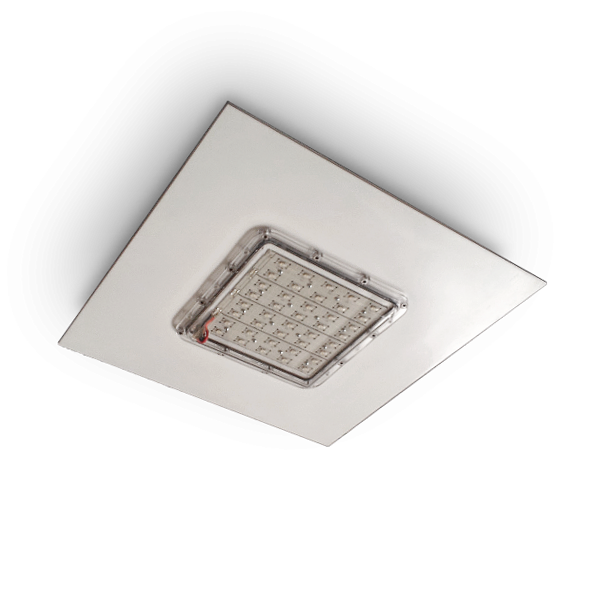

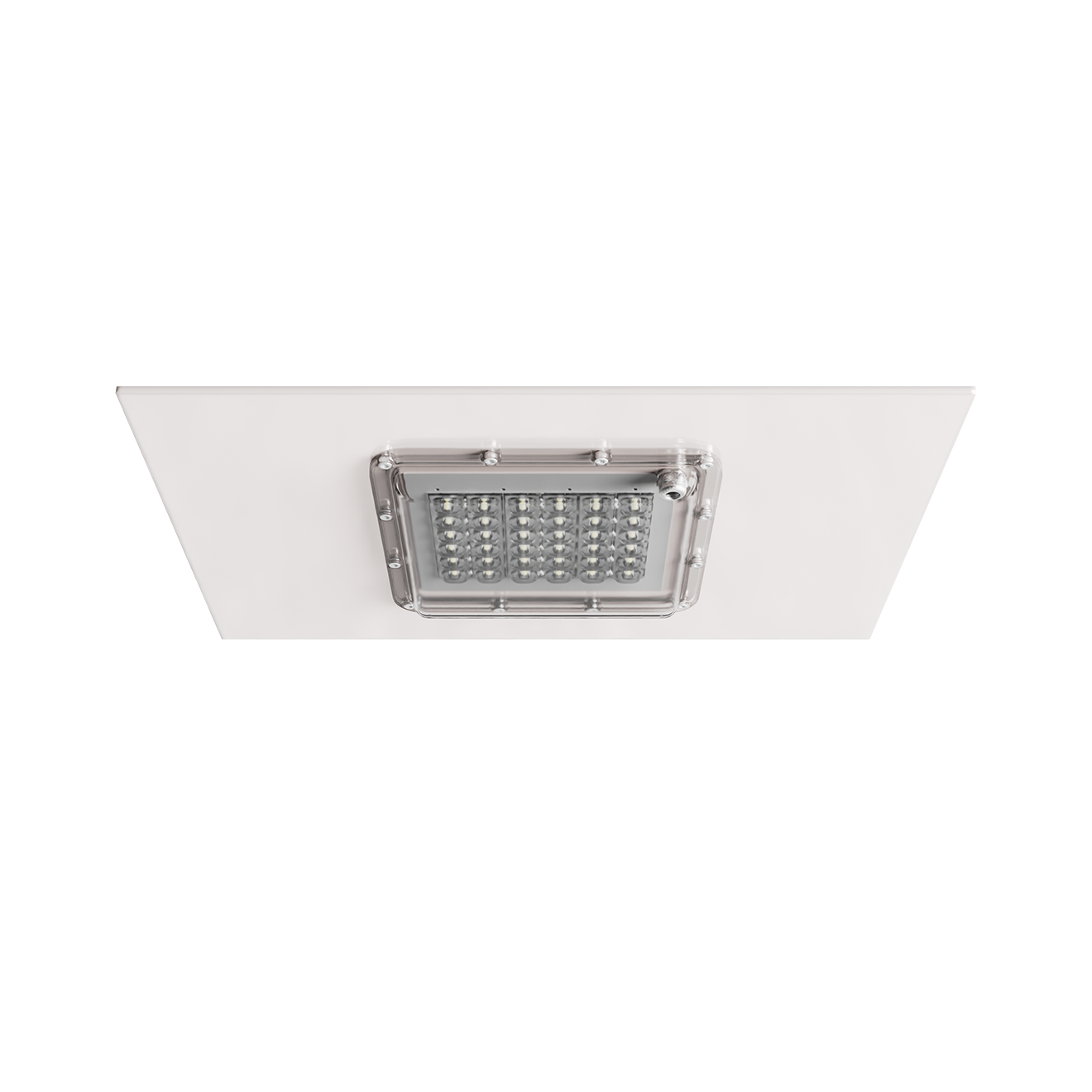

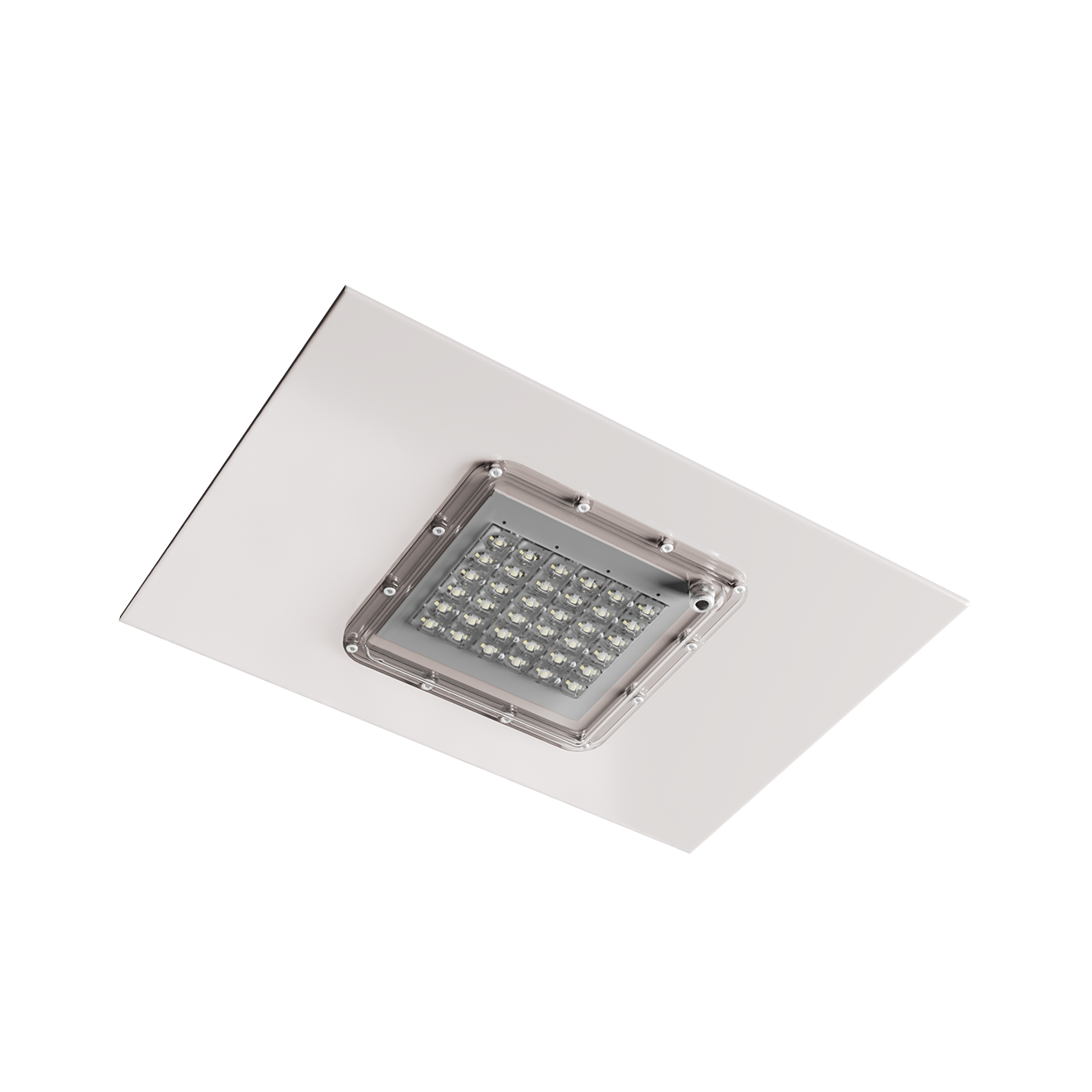

Astro 54 Recessed LED Luminaire 90W for Petrol Stations

Astro 54 Recessed LED Luminaire 90W for Petrol Stations

The Astro 54 recessed LED luminaire is the top model of the Astro range, with 90 W and up to 12364 lm per unit. It was developed for the large canopies of highway and trunk-road fuel stations, where ground illuminance must stay high across a wide forecourt while the number of luminaires stays low.

Benefits

• Highest flux in the series: 11634-12364 lm from a single unit, at 138 lm/W with the wide optic.
• Coverage from height: the narrow optic drives light from tall canopies down to pump level.
• Durable diffuser: UV-protected clear polycarbonate that resists clouding through years of exposure.
• 100,000 h (L80): years of continuous service without relamping, so no lift hire and no closed pump lanes.
• IP66 and IK10: sealed against dust and water and impact resistant, for heavy traffic and frequent washing.
• Plate made to size: it adapts to the existing canopy module without redesigning the soffit.

Technical specifications

• Type: recessed LED luminaire for fuel station canopies
• Mounting: recessed, specifically for petrol stations
• Body material: extruded aluminium
• Diffuser: clear polycarbonate, UV protected
• Colour available: grey (RAL 7040)
• Power: 90 W
• Luminous flux: 11634-12364 lm
• Luminous efficacy: 129-138 lm/W
• Optics available: wide, medium, narrow
• Colour temperature: 4000 K (neutral light) or 5000 K (cool light)
• CRI: 80
• Control: on/off
• Driver included: yes
• LED service life: 100,000 h (L80)
• Ingress protection: IP66
• Impact resistance: IK10
• Electrical insulation class: I
• Adjustable: yes
• Housing dimensions: 460 x 248 x 50 mm; the aluminium plate can be made to any size

Applications and installation

Install the Astro 54 in fuel station canopies with several pump islands, in truck park canopies, in charging hubs for electric fleets and in covered areas of logistics terminals. On tall canopies choose the narrow or medium optic; on low, wide ones use the wide optic. Select 5000 K for maximum contrast at night, or 4000 K for a daylight-like appearance. IP66 sealing suits forecourts exposed to dust and washdown, and each variant carries its own order code covering power, optic, colour temperature and control. The luminaire is designed and manufactured in Europe.

Frequently asked questions

When do I pick Astro 54 over Astro 45? When the canopy is tall or has many pump islands and you need more than 10000 lm per unit. Astro 54 gives 11634-12364 lm against 9695-10303 lm.

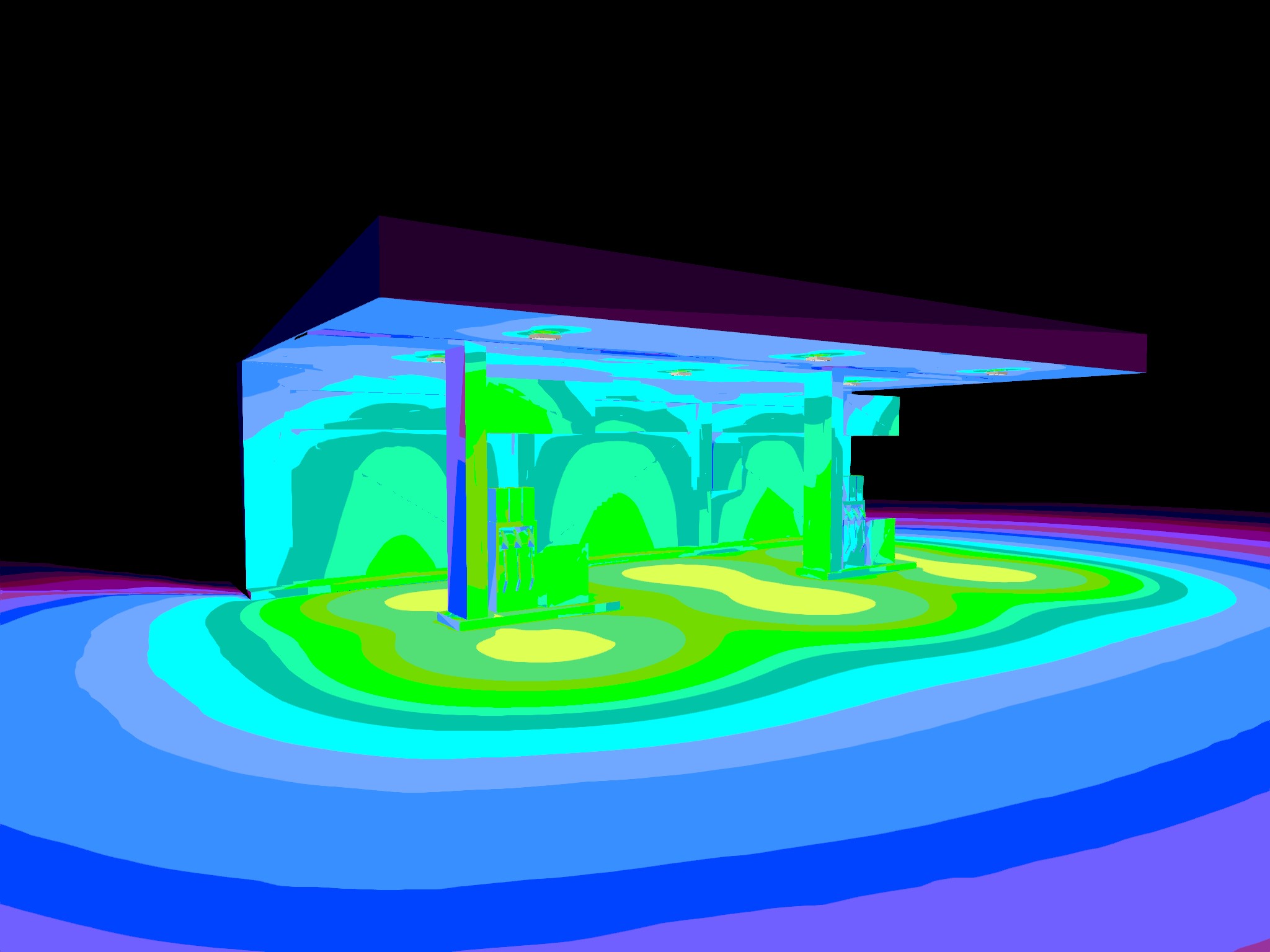

How many units do I need? That depends on canopy area, height and the illuminance you target. Our team can prepare a lighting calculation.

Can it fit non-standard openings? Yes. The aluminium plate is made to the required size, while the housing stays 460 x 248 x 50 mm.
