Stand-Alone DMX Touch Panel for RGB LED 1024 Channels

Stand-Alone DMX Touch Panel for RGB LED 1024 Channels

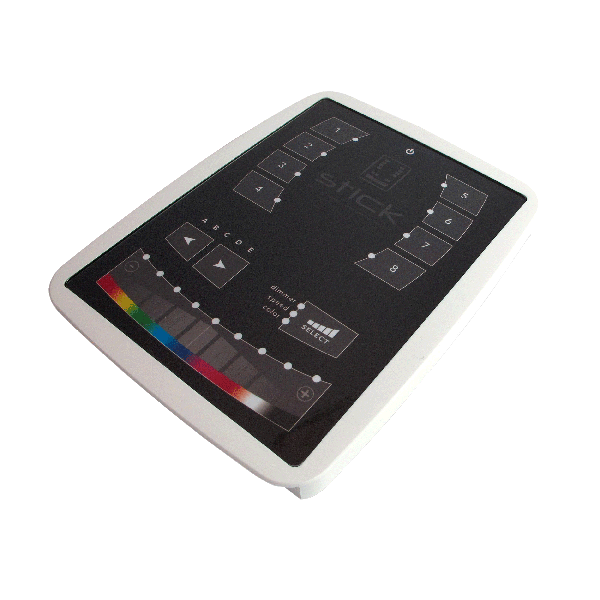

This stand-alone DMX touch panel controls colour architectural lighting indoors and outdoors. It is built for integrators running large installations: two DMX512 universes, 1024 channels and up to 340 addressable RGB luminaires. You program it from a PC or Mac, or wirelessly from a tablet or phone.

Benefits of the stand-alone DMX touch panel

• Autonomous operation: once programmed, scenes play from the microSD card with no computer attached.
• Large capacity: 1024 channels across two DMX512 universes drive as many as 340 RGB luminaires.
• Flexible programming: a USB to mini-USB cable from a PC or Mac, or a wireless link from a tablet or phone.
• Local touch control: the end user selects scenes directly on the panel, without training or software.
• Low consumption: the panel runs on 6-9V DC at 0.6A.

Technical specifications

• Equipment type: stand-alone DMX controller with touch panel
• Output protocol: two DMX512 universes
• Number of channels: 1024
• Maximum number of RGB luminaires: 340, on separate addresses
• Programming: PC or Mac over a USB to mini-USB cable; tablet or phone wirelessly
• Memory: microSD card
• Supply: 6-9V DC, 0.6A
• Ingress protection: IP40
• Operating temperature: -20 degrees C to +40 degrees C
• Markings: CE, F (mounting on normally flammable surfaces)

Applications and installation

The panel drives DMX addressable RGB floodlights for indoor and outdoor architectural lighting: facades, lobbies, event halls and gardens. The panel itself is rated IP40, so you mount it indoors or inside a protected enclosure, and run the DMX lines out to the exterior luminaires. The F marking allows fixing on normally flammable surfaces, such as timber panelling. Keep the DMX bus terminated correctly and plan address blocks before commissioning. The controller is designed and manufactured in Europe.

Frequently asked questions

How many luminaires can I connect? Up to 340 RGB luminaires on separate addresses, across 1024 channels in two DMX512 universes.

Do I need a computer permanently connected? No. A computer, tablet or phone is needed only for programming. Scenes are stored on the microSD card and run on their own.

Can the panel be mounted outdoors? The panel is rated IP40, so it belongs indoors or in a protected enclosure. Outdoor luminaires connect through the DMX lines.
