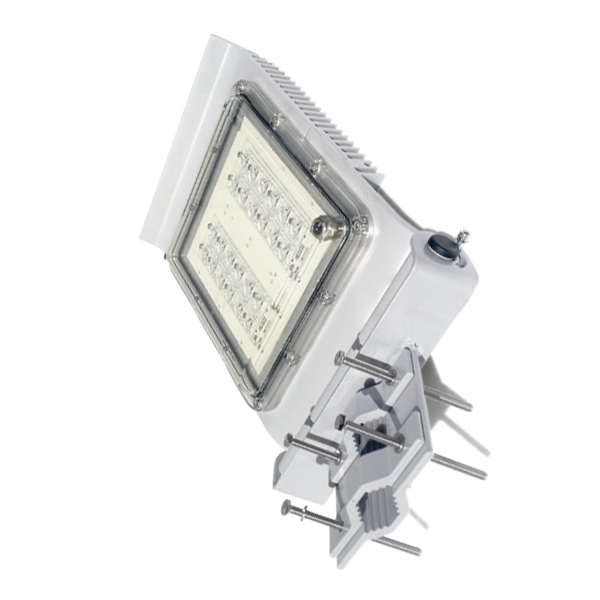

Proton II Street LED Floodlight 24 LEDs 80W

Proton II Street LED Floodlight 24 LEDs 80W

The Proton II street LED floodlight with 24 LEDs is the entry model for ME4 roads. At 80 W and 3.6 kg it suits municipalities and developers upgrading neighbourhoods, car parks and small sports grounds. The driver accepts 90-260 V AC, so it tolerates networks with unstable voltage.

Benefits

• Lightest ME4 body: 3.6 kg on the same 355 x 248 mm housing, so existing brackets carry it.
• Wide voltage window: the 90-260 V AC input helps on rural networks with large swings.
• 24 OSRAM LEDs: high power sources with a rated life of 100,000 hours.
• Elliptical asymmetric beam: purpose designed lenses light the carriageway without spilling onto the pavement.
• Tilt of plus or minus 45 degrees: the bracket lets you correct the angle directly on site.
• Full protection: IP66, IK10 and a 3 mm UV protected diffuser, which suits dusty, humid coastal sites.

Technical specifications

• Housing material: extruded aluminium, electrostatically powder coated
• Diffuser: 3 mm clear polycarbonate, UV protected
• Housing colour: other colours available on customer request
• Number of LEDs: 24
• Total power: 80 W
• Light source: high power OSRAM LEDs, 100,000 hours
• Colour rendering index (CRI): 80 for neutral white, 70 for cool white
• LED colour (configurable): neutral white 4000 K or cool white 5000 K
• Focusing: elliptical, elliptical asymmetric beam
• Supply: 90-260 V AC, 50-60 Hz, driver built into the housing
• Electrical insulation class: I
• Power factor: above 0.95
• Total harmonic distortion: below 20%
• Ingress protection: IP66
• Impact resistance: IK10
• Operating temperature: -20 degrees C to +40 degrees C
• Tilt adjustment: plus or minus 45 degrees
• Dimensions: 355 x 248 mm
• Weight: 3.6 kg
• Markings: CE, F (mounting on normally flammable surfaces)

Applications and installation

Use the luminaire for street lighting on ME4 roads, car park lighting, perimeter lighting and sports grounds. You mount it on a vertical pole, on a bracket or on any flat surface. The F marking covers normally flammable surfaces. It works in residential, commercial and public areas. Set the tilt on site, then confirm the aiming after the first night of operation.

Frequently asked questions

Does it run on an unstable network? Yes. The included driver accepts 90 to 260 V AC at 50-60 Hz and holds a power factor above 0.95.

Can I order another housing colour? Yes, other colours are available on customer request. State the shade in your enquiry.

What does an ME4 road mean? It is a lighting class for urban roads with medium traffic. This Proton II street LED floodlight was designed for that lighting level.
