60W All In One Solar Street Light
Request a quote Request a quote
60W All In One Solar Street Light
Description

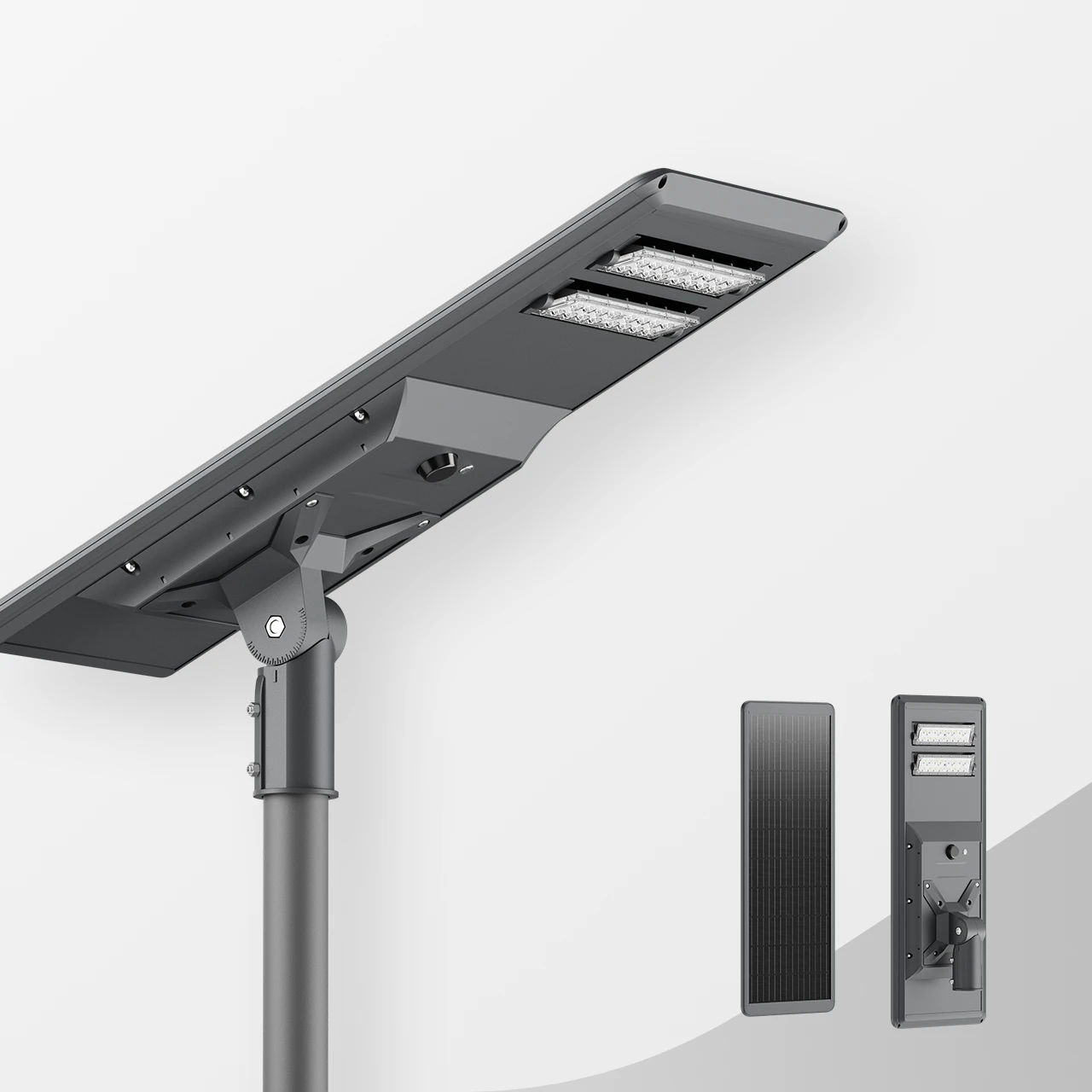

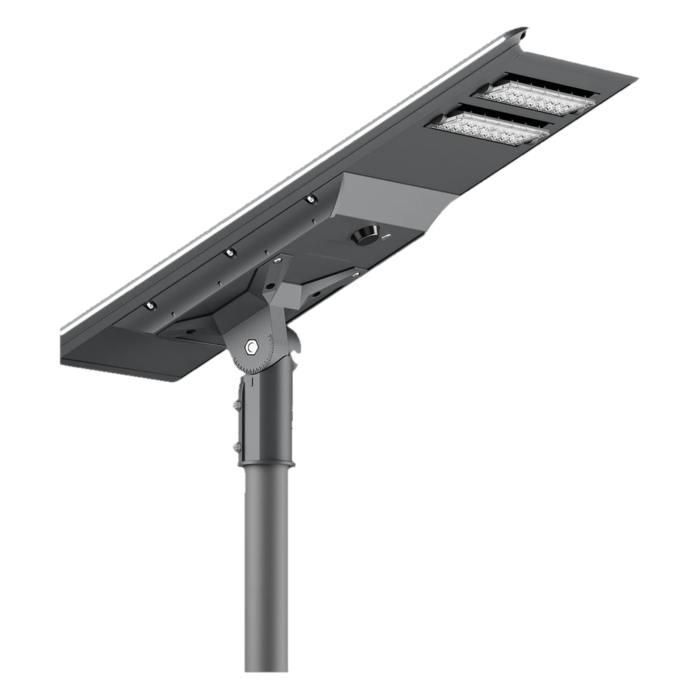

An integrated solar street light featuring a LiFePO4 battery, solar panel, and MPPT charge controller built into the luminaire. Constructed from pressure die-cast aluminum for durability and longevity. The specially designed pole mounting bracket allows for various tilt angles, as well as lateral and pole-top mounting options. The adjustable LED module enables improved light distribution when necessary.
An integrated solar street light featuring a LiFePO4 battery, solar panel, and MPPT charge controller built into the luminaire. Constructed from pressure die-cast aluminum for durability and longevity. The specially designed pole mounting bracket allows for various tilt angles, as well as lateral and pole-top mounting options. The adjustable LED module enables improved light distribution when necessary.
The ZAIN series is a high-quality, engineering-grade solar street light designed for a wide range of applications, from 5-meter to 12-meter pole heights. Crafted with a robust die-cast aluminum housing and premium-grade components, this product is built to last. The lithium battery uses high-temperature-resistant 32700 cells, with a lifespan of over 2000 cycles. Each night, the battery's depth of discharge is capped at 60%, ensuring long-term durability and performance.
Technical specifications
| Item number | AIO-50WZ / AIO-60WZ / AIO-80WZ / AIO-100WZ |
|---|---|
| LED power | 50W / 60W / 80W / 100W |
| Luminous | 8,500lm / 10,200lm / 13,600lm / 17,000lm |
| CCT range | 2200K~6500K |
| LED module | SMD5050 32pcs / SMD5050 48pcs / SMD5050 64pcs |
| LiFePO4 battery | 12.8V 384WH / 12.8V 460WH / 12.8V 614WH / 12.8V 768WH |
| Solar panel | 18V 64W / 18V 82W / 18V 103W / 18V 125W |
| Product size | 1100*420*350mm / 1300*420*350mm / 1590*420*350mm |
| Charge controller | MPPT |
| Pole size | 76mm |
| Installation height | 4 ~ 8m / 5 ~ 8m / 6 ~ 10m / 6 ~ 12m |
| Warranty | 5 Years / AIO-50WZ / AIO-60WZ |
Price on request — please use the “Request a quote” button.
